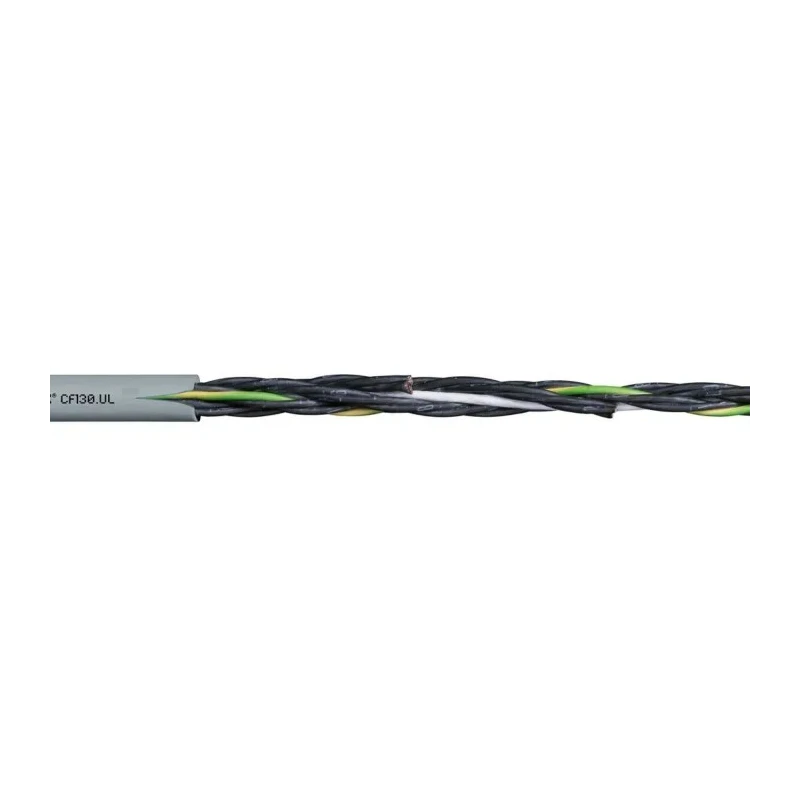

Igus Chainflex CF130.UL PVC Control Cable 5 Cores 0.5mm² 20 AWG Unscreened 10 m Grey Thermoplastic Elastomer CF130.05.05.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF130.05.05.UL |
| Cable Length | 10m |
| Series | Chainflex CF130.UL |
| Outside diameter | 6.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 5 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
Key Features
- Designed for medium load applications with silicon-free construction.
- Resistant to oil influences and torsion, suitable for indoor use.
- Flame-retardant compliant with IEC 60332-1-2 standards.
- Flexible stranded bare copper conductors adhering to EN 60228.
- Outer sheath optimized for energy chain compatibility with low adhesion.
- Operating voltage rated at 500 V with temperature range -5°C to 70°C.
- Free suspended travel distances and gliding applications up to 50 m, Class 2.
Product Description
Igus CF130.05.05.UL Chainflex® PVC Control Cable is a 5-core control cable designed for medium mechanical load requirements. It features stranded bare copper conductors with a cross-sectional area of 0.5 mm² (20 AWG) and is unscreened to support torsion and flexible applications. The outer grey sheath is made from thermoplastic elastomer adapted for use in energy chains, providing low adhesion and high durability.
This cable is silicon-free and resistant to oil influences, making it ideal for industrial automation, control, and electrical applications where flame retardance and safety compliance are critical. The cable supports a voltage rating of 500 V and operates reliably within the temperature range of -5°C to 70°C.
Its flame-retardant properties conform to IEC 60332-1-2, CEI 20-35, FT1, and VW1 standards, ensuring safe performance in demanding environments. The flexibility and durability make it suitable for freely suspended travel distances and gliding applications up to 50 meters, categorized as Class 2 efficiency.
The stranded bare copper conductors are manufactured according to EN 60228, ensuring excellent conductivity and mechanical strength. This cable is not armored, prioritizing lightweight flexibility, especially in applications requiring frequent movement within energy chains and robotics.
Typical industrial applications include automation systems, manufacturing process control, laboratory equipment wiring, and mechanical assembly lines where reliable signal transmission and flexible cabling are necessary.
Designed for medium load applications with silicon-free construction. Resistant to oil influences and torsion, suitable for indoor use. Flame-retardant compliant with IEC 60332-1-2 standards. Flexible stranded bare copper conductors adhering to EN 60228.
Outer sheath optimized for energy chain compatibility with low adhesion. Operating voltage rated at 500 V with temperature range -5°C to 70°C. Free suspended travel distances and gliding applications up to 50 m, Class 2.
Ensure industry-grade quality and safety with Igus Chainflex CF130.UL control cables, ideal for electrical and automation wiring solutions. Browse related Control Cables and industrial wires at EnvMart for your electrical installation and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This control cable has a voltage rating of 500 V, making it suitable for various electrical applications.
The maximum operating temperature for the Igus CF130.UL is 70°C, allowing it to function effectively in a range of environments.
This model features 5 cores, providing versatility for multiple signal or power transmission needs.
The outer diameter of this control cable is 6.5 mm, which is designed for compatibility with energy chains.
The cable features stranded bare copper conductors and a jacket made from thermoplastic elastomer, ensuring flexibility and durability.
This cable operates reliably within a temperature range of -5°C to 70°C, suitable for various indoor applications.
The Igus CF130.UL is an unscreened cable, designed for applications that require flexibility and torsion resistance.
It complies with IEC 60332-1-2 standards for flame retardance, ensuring safety in demanding environments.
The conductors in the CF130.UL have a cross-sectional area of 0.5 mm², equivalent to 20 AWG.
This cable is suitable for industrial automation, control, and electrical applications where flexible cabling is necessary.
The low-adhesion outer sheath is optimized for energy chain compatibility, enhancing the cable's performance in dynamic applications.
The country of origin for this control cable is Japan, indicating its manufacturing quality.
