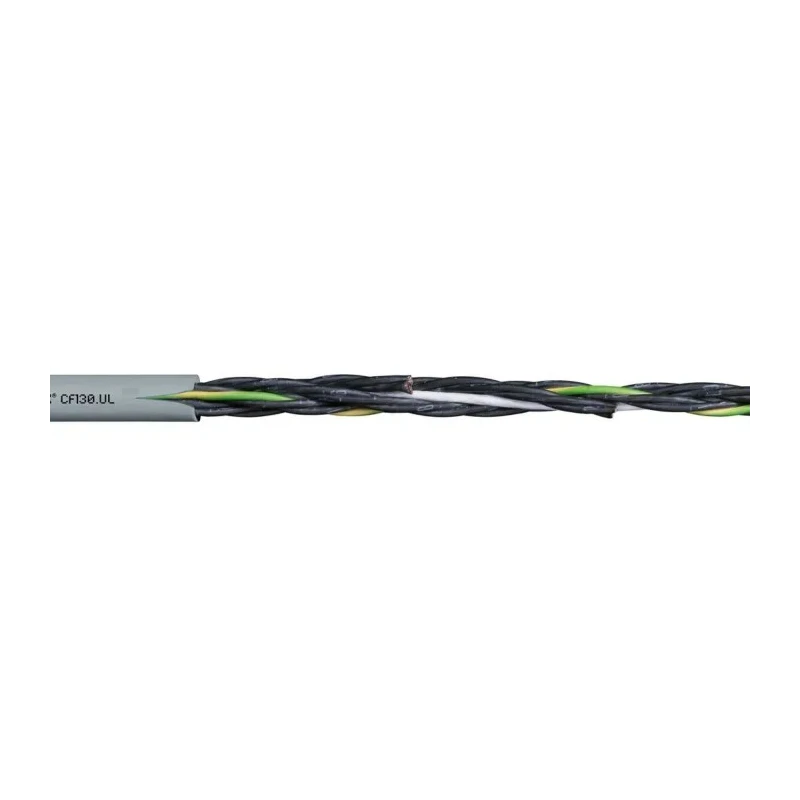

Igus Chainflex CF130.UL Control Cable, 3 Cores, 1.5mm² 15 AWG, Unscreened, Armoured, 10m Length, 500V Rating CF130.15.03.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF130.15.03.UL |
| Cable Length | 10m |
| Series | Chainflex CF130.UL |
| Outside diameter | 7mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 3 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- The cable features bare copper stranded conductors for excellent electrical conductivity.
- It has a grey thermoplastic elastomer outer sheath that is flame retardant and torsion resistant.
- The cable is unscreened and armoured for enhanced mechanical protection.
- Operating temperature ranges from -5°C to 70°C, suitable for indoor industrial applications.
- The cable meets IEC 60332-1-2 flame-retardant standards and is compliant with EN and CE approvals.
- Designed for energy chains with a low-adhesion PVC mixture outer sheath to reduce friction.
- Flexible and silicon-free construction ensures resistance to oils and torsion stress.
- Suitable for freely suspended travel distances and gliding applications up to 50 meters.
Product Description
Igus Chainflex CF130.UL Control Cable CF130.15.03.UL is a high-quality industrial control cable featuring 3 cores with 1.5mm² (15 AWG) bare copper stranded conductors. Rated at 500V, this cable is designed primarily for medium load control applications where flexibility, durability, and safety are critical.
The cable is constructed with a grey thermoplastic elastomer sheath that offers flame retardance in accordance with IEC 60332-1-2, CEI 20-35, FT1, and VW1 standards. Its unscreened and armoured design provides excellent mechanical protection while maintaining flexibility and torsion resistance, making it ideal for indoor industrial environments and energy chain systems. It operates reliably within a temperature range of -5°C to 70°C.
Featuring a fine-wire stranded copper conductor that meets EN 60228 standards, the cable ensures efficient current carrying capability and longevity. The outer sheath uses a low-adhesion PVC mixture specially adapted to reduce friction and wear in dynamic applications such as freely suspended travel and gliding up to 50 meters.
This control cable is silicon-free, minimizing interference from oils and other chemicals commonly found in industrial settings. The armoured and flame-retardant construction guarantees enhanced safety in hazardous or confined spaces.
The cable is suitable for various industrial, automation, and electrical control systems requiring robust, flexible wiring solutions. Applications include machinery wiring, control panels, energy chains, and indoor installations requiring durable cable protection.
The cable is manufactured in Japan, ensuring stringent quality standards and reliable performance. Supplied in a 10-meter reel, the cable offers convenience for installation and replacement tasks.
Choose Igus Chainflex CF130.UL Control Cable for reliable control wiring with superior mechanical and flame-retardant properties. Explore more Control Cables and industrial wiring solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this control cable is 500V.
The maximum operating temperature for the Igus Chainflex CF130.UL is 70°C.
This control cable features 3 cores.
The cable is constructed with bare copper stranded conductors and a grey thermoplastic elastomer outer sheath.
The outside diameter of the cable is 7mm.
This model is unscreened.
The cable is supplied in a length of 10 meters.
It complies with EN and CE standards, and meets IEC 60332-1-2 flame-retardant standards.
This control cable is suitable for machinery wiring, control panels, energy chains, and indoor installations requiring durable cable protection.
The minimum operating temperature is -5°C.
The cable is flame retardant, complying with IEC 60332-1-2 standards.
This control cable is manufactured in Japan.
