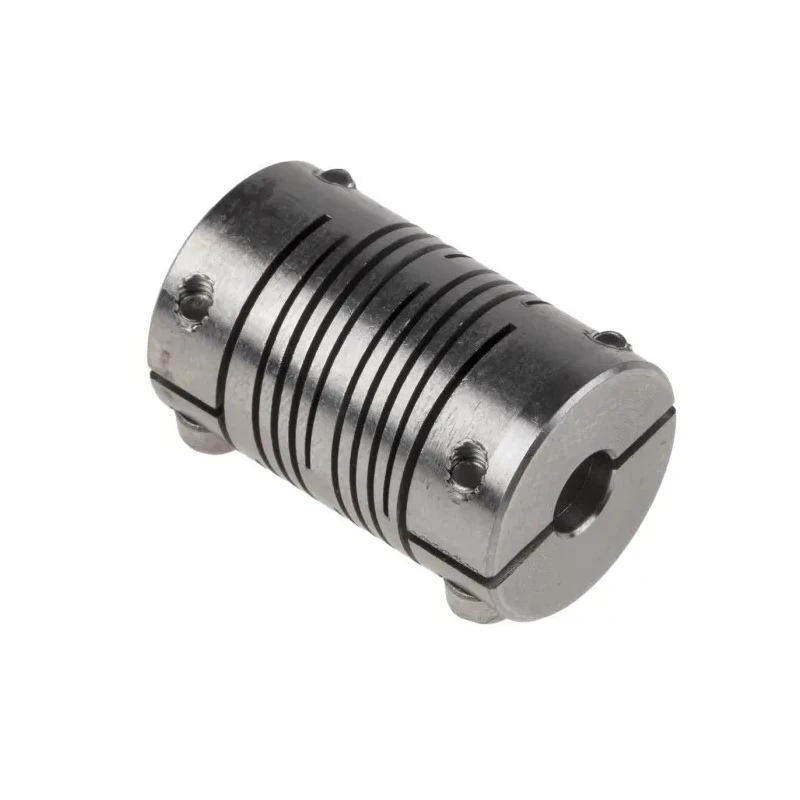

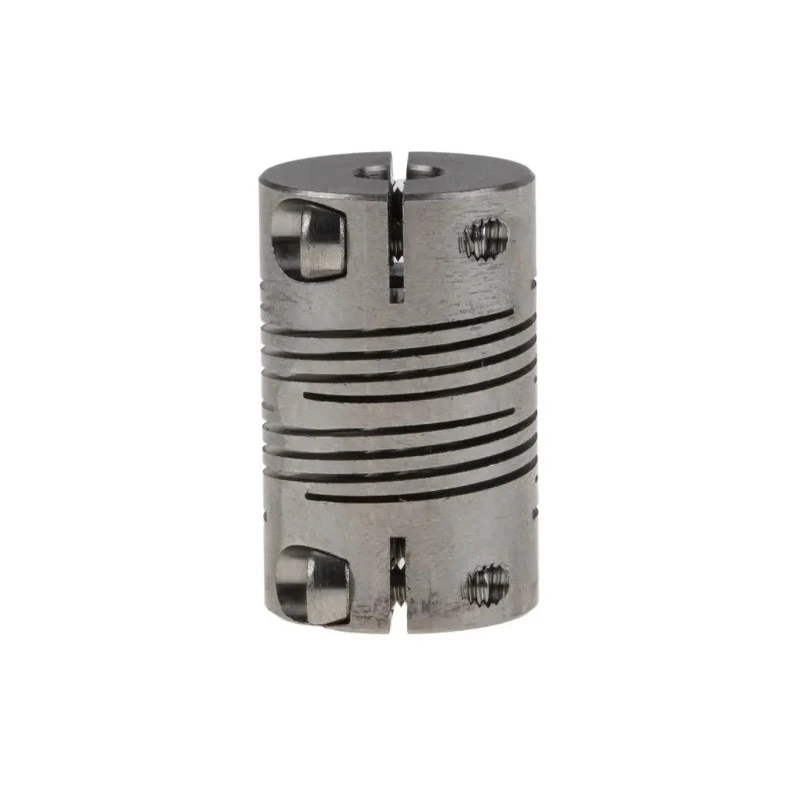

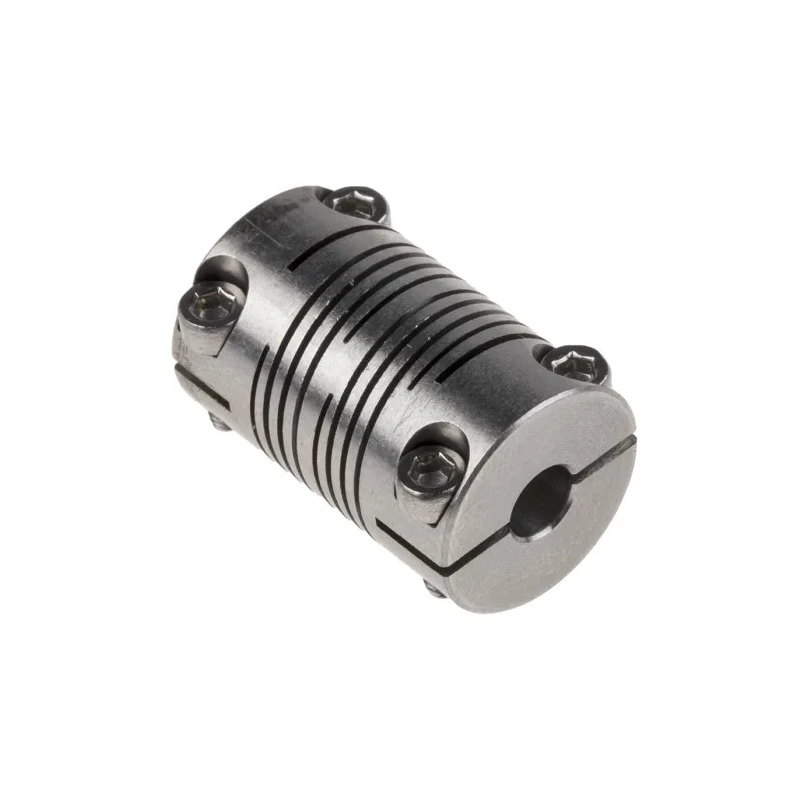

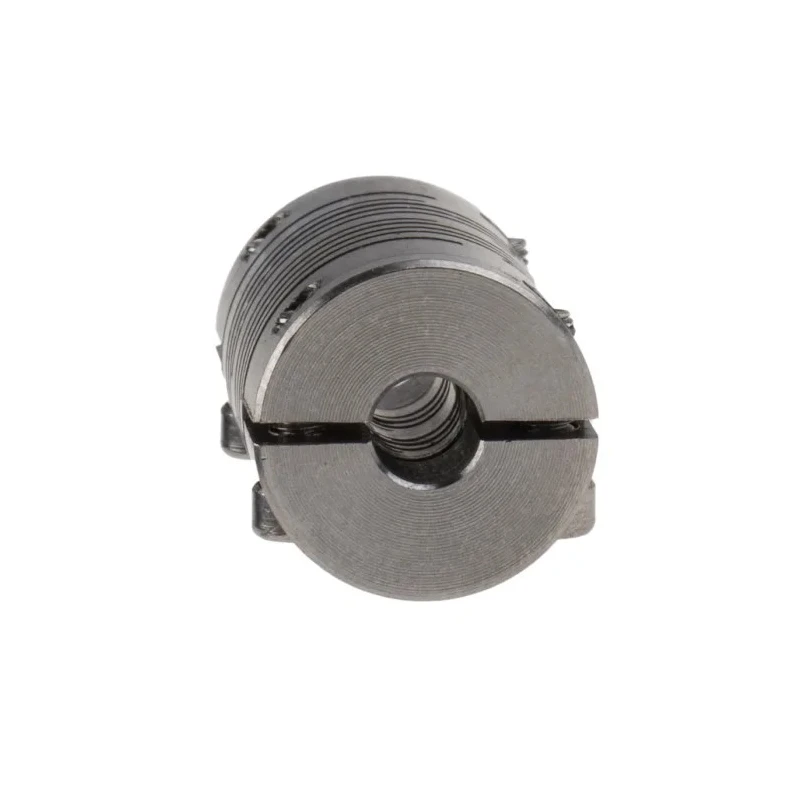

Huco Stainless Steel 6-Beam Clamp Flexible Coupler 15.9 mm OD 6 mm Bore 25.4 mm Length 703.16.2020
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Huco |
| Material | Stainless Steel |
| Length | 25.4mm |
| Maximum Speed | 5000rpm |
| Number of Beams | 6 |
| Outside diameter | 15.9mm |
| Maximum Operating Temperature | 140°C |
| Minimum Operating Temperature | -40°C |
| Torque Rating | 5Nm |
| Misalignment - Angular | 5° |
| Misalignment - Parallel | 0.2mm |
| Bore Size B | 6mm |
Key Features
- This flexible coupler tolerates axial motion, angular misalignment of up to 5°, and parallel misalignment of 0.2 mm.
- Constructed with stainless steel for corrosion resistance and durability.
- Clamp style provides torsional rigidity and zero backlash for precision motion control.
- Maximum speed rating of 5000 rpm and torque rating of 5 Nm supports high-performance applications.
- Suitable for high-end servo drives, metering valves, scanners, and positioning slide applications.
- Operates reliably within a temperature range from -40°C to 140°C.
- Features a 3-start helical cut beam design, providing higher torque capability and reduced wind-up compared to single beam couplers.
- Electrical isolation properties enhance its use in sensitive electronic and servo systems.
Product Description
Huco 703.16.2020 is a precision-engineered stainless steel flexible coupler designed for mechanical power transmission applications. This coupler has a 15.9 mm outside diameter and a 6 mm bore size with a length of 25.4 mm. It features a clamp style connection and a robust 6-beam configuration offering exceptional torsional rigidity and no backlash.
The device accommodates axial motion along with angular misalignment up to 5° and parallel misalignment of 0.2 mm, ensuring smooth operation even under demanding installation conditions. Its maximum operational speed is 5000 rpm, and it has a torque rating of 5 Nm, making it suitable for precision servo drives and other dynamic equipment.
Manufactured from stainless steel, the coupler offers corrosion resistance and mechanical strength, enabling durability in a broad range of industrial environments. It operates effectively between -40°C and 140°C, adaptable to challenging temperature conditions encountered in manufacturing or process industries.
The patented 3-start helical cut beam design enhances torque transmission capabilities and reduces wind-up effects compared to single-beam designs. This flexible coupling also provides electrical isolation between connected shafts, protecting sensitive servo and scanning systems from electrical interference.
Common applications include high-end servo drives, pulse generators, metering valves, scanners, and positioning slides in industrial automation, robotics, and fluid power systems. This coupling is manufactured to British Standards BS 46 Pt. 1, 774 (BS 45 Pt. 1), and ISO 77, assuring compliance with international quality norms.
This flexible coupler tolerates axial motion, angular misalignment of up to 5°, and parallel misalignment of 0.2 mm. Constructed with stainless steel for corrosion resistance and durability. Clamp style provides torsional rigidity and zero backlash for precision motion control.
Maximum speed rating of 5000 rpm and torque rating of 5 Nm supports high-performance applications. Suitable for high-end servo drives, metering valves, scanners, and positioning slide applications. Operates reliably within a temperature range from -40°C to 140°C.
Features a 3-start helical cut beam design, providing higher torque capability and reduced wind-up compared to single beam couplers. Electrical isolation properties enhance its use in sensitive electronic and servo systems.
Set your equipment up with the Huco 703.16.2020 coupler to ensure high precision, durability, and reliability in demanding mechanical power transmission scenarios. Explore more flexible couplers and power transmission components available at EnvMart to meet diverse industrial needs.
Explore more products in our Mechanical Power Transmission Couplers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum speed rating of this flexible coupler is 5000 rpm.
This model has a torque rating of 5 Nm.
The outside diameter is 15.9 mm, and the bore size is 6 mm.
It can accommodate angular misalignment of up to 5° and parallel misalignment of 0.2 mm.
This flexible coupler operates reliably within a temperature range from -40°C to 140°C.
It is constructed from stainless steel, providing corrosion resistance and mechanical strength.
It features a 3-start helical cut beam design, which provides higher torque capability and reduces wind-up compared to single beam couplers.
This model uses a clamp style connection, which provides torsional rigidity and zero backlash.
It is suitable for high-end servo drives, metering valves, scanners, and positioning slide applications.
The dimensions are 25.4 mm in length, with an outside diameter of 15.9 mm and a bore size of 6 mm.
Yes, it is manufactured to British Standards BS 46 Pt. 1, 774 (BS 45 Pt. 1), and ISO 77, ensuring compliance with international quality norms.
It provides electrical isolation between connected shafts, which is beneficial for sensitive electronic and servo systems.
