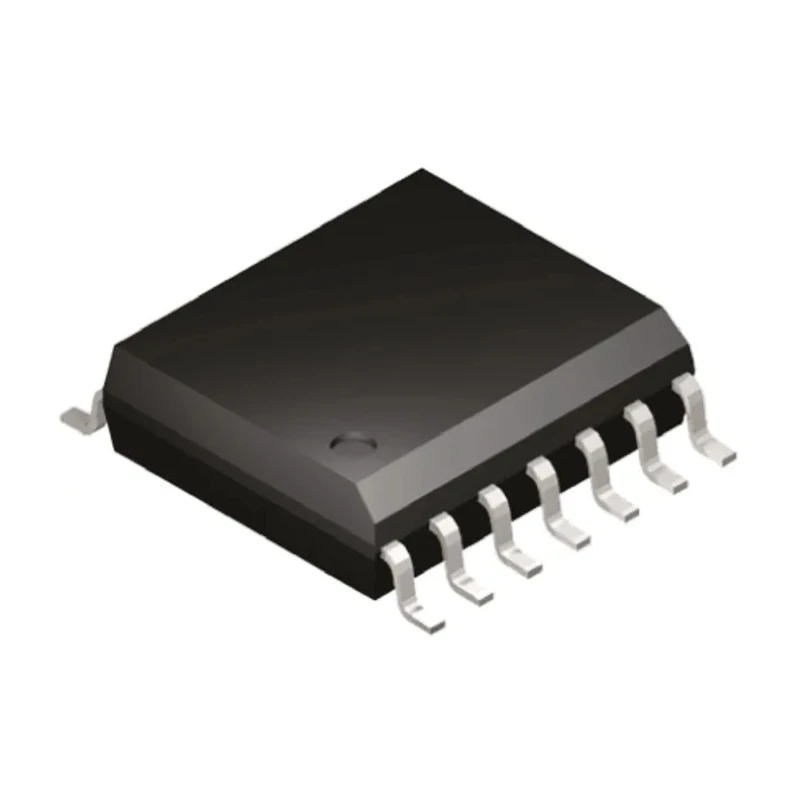

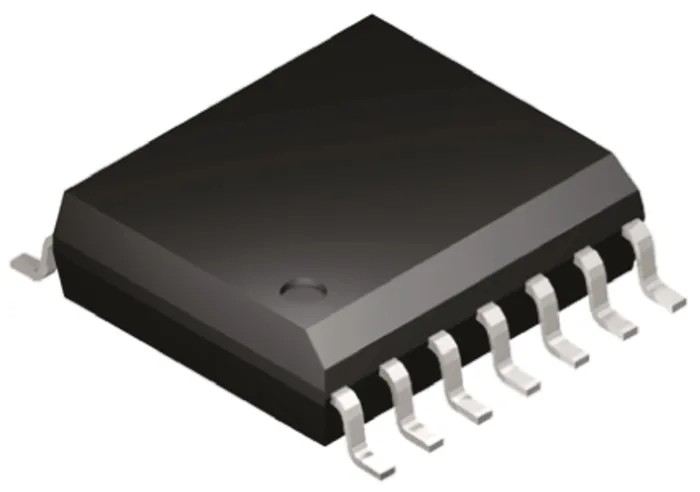

Texas Instruments Buck Converter Surface Mount LM2574M-ADJ/NOPB with 1.23V Output Voltage and 500mA Output Current
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Efficiency | 77% |
| Length | 9.2mm |
| Model | LM2574M-ADJ/NOPB |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | LM2574 |
| Output Current | 500mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4V |
| Number of Pins | 14 |
| Output Voltage 1 | 1.23V |
| Output Voltage 2 | 37V |
Key Features
- Operates with an input voltage range of 4V to 40V.
- Maintains an efficiency rate of approximately 77% for energy-saving applications.
- Supports a maximum operating temperature of 125 degrees Celsius for reliable performance.
- Equipped with 14 pins in a SOIC package measuring 9.2mm by 7.5mm for compact integration.
- Designed to provide a stable single output voltage suitable for a wide range of electronic circuits.
- Meets RoHS standards, ensuring compliance with environmental regulations.
- Includes the LM2574 series features known for ease of use and wide voltage input compatibility.
- Module mount type is surface mount, suitable for automated PCB assembly.
Product Description
Texas Instruments LM2574M-ADJ/NOPB Buck Converter is a high-performance surface mount device delivering a 1.23V output voltage with 500mA output current, perfectly suited for power supply regulation in industrial, commercial, and embedded system applications. It supports wide input voltage ranging from 4V to a maximum of 40V, making it versatile for various DC power inputs.
The device is part of the LM2574 series known for SIMPLE SWITCHER® step-down voltage regulators that balance ease of design and efficiency. It delivers approximately 77% efficiency, minimizing power loss and heat generation under normal operating conditions, and is rated for operation in harsh environments with temperatures spanning from -40°C to 125°C.
The LM2574M-ADJ/NOPB is packaged in a compact SOIC 14-pin surface mount form factor measuring 9.2 mm in length and 7.5 mm in width, optimized for PCB space utilization and automated manufacturing processes.
This buck converter ensures stable power output with a single output voltage channel and supports applications in industrial equipment, instrumentation, communications devices, and general power supply units. Its RoHS compliance guarantees adherence to environmental safety standards.
The packaging is supplied in tubes for efficient handling and machine insertion during assembly, improving production efficiency and reliability. Operates with an input voltage range of 4V to 40V. Output voltage is adjustable with a nominal fixed value of 1.23V.
Maximum output current of 500mA suitable for low to medium power applications. Efficiency of approximately 77%, optimized for power conservation. Wide operating temperature range from -40°C to 125°C for harsh environments.
Compact SOIC 14-pin surface mount package (9.2mm x 7.5mm). Meets RoHS environmental standards.
For designers and engineers needing reliable voltage regulation solutions, the Texas Instruments LM2574M-ADJ/NOPB offers a versatile, compact, and efficient Buck Converter option. Explore more within the Electronics & Electricals category at EnvMart for power management components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM2574M-ADJ/NOPB operates with an input voltage range of 4V to 40V.
It supports a maximum output current of 500mA, suitable for low to medium power applications.
The efficiency rate is approximately 77%, optimizing power conservation during operation.
The nominal fixed output voltage is 1.23V, which is adjustable.
The package measures 9.2mm in length and 7.5mm in width, designed for compact integration.
It can operate at a maximum temperature of 125 degrees Celsius.
This model meets RoHS standards, ensuring compliance with environmental regulations.
It features 14 pins in its surface mount package.
The device can operate in temperatures as low as -40 degrees Celsius.
It is suitable for power supply regulation in industrial equipment, instrumentation, and communications devices.
It is designed for surface mount, making it suitable for automated PCB assembly.
