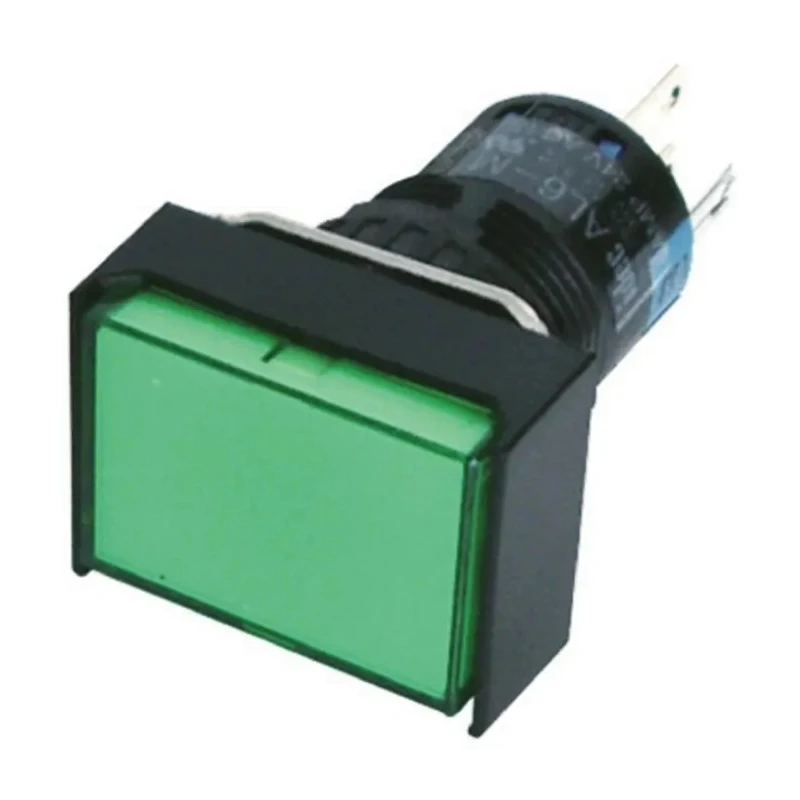

Idec AL Series Illuminated Push Button Switch Momentary Panel Mount 16 mm Cutout DPDT Green LED IP65 250V AC AL6H-M24P-G

Name: Idec AL Series Illuminated Push Button Switch Momentary Panel Mount 16 mm Cutout DPDT Green LED IP65 250V AC AL6H-M24P-G
Brand: Idec
SKU: 410867
Price: 28.19 USD
Availability: InStock



Category Push Button Switch Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Length	22mm
Model	AL6H-M24P-G
IP Rating	IP65
Mount Type	Panel
Series	AL
Maximum Operating Temperature	120°C
Contact Configuration	DPDT
Switch Configuration	On-Off
Minimum Operating Temperature	-25°C
Panel Cutout Size	16 mm
Terminal type	Quick Connect, Solder Tag
Standards/Approvals	CSA, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	White
Actuator Style	Button
Switch Contact Current	1A
Contact AC Voltage	250V ac

Key Features

The actuator is white in color with a push-button style for momentary operation.
It provides DPDT contact configuration, suitable for complex switching requirements.
The green LED illuminates for clear status indication and enhances visibility.
The switch is designed for panel mounting with a 16 mm panel cutout size.
It has an IP65 rating, ensuring dust tightness and protection against water jets.
Supports a contact AC voltage of 250 V AC and switch contact current of 1 A.
The device operates reliably between -25°C to 120°C temperature range.
Terminal connections include quick connect and solder tag types for versatile wiring.

Product Description

Idec AL6H-M24P-G Illuminated Push Button Switch is a high-quality, momentary operation switch designed for panel mounting with a 16 mm cutout. Featuring a DPDT contact configuration and a green LED indicator, this switch provides visual status feedback, making it ideal for industrial control panels and automation systems.

The actuator is white and styled as a button for ergonomic and precise switching action. Its IP65 ingress protection rating ensures that it remains dust tight and protected against water jets, suitable for harsh industrial environments.

Operating performance includes compatibility with contact AC voltages up to 250 V AC and a switch contact current rating of 1 A. The device reliably functions across a broad temperature range from -25°C to 120°C, ensuring durability and dependability in varying operational conditions.

Terminal options such as quick connect and solder tag provide flexible wiring options. The switch meets CSA and UL certification standards, assuring industrial safety and compliance.

Typical applications include use in programmable logic controller (PLC) inputs, logic level switching, and control panels where space-saving and rugged design are critical. The snap-action double throw contacts offer reliable switching performance in industrial electrical systems.

The actuator is white with a push-button style for momentary switching. DPDT contact configuration supports versatile control functions. Green LED illumination provides clear visual indication. Designed for 16 mm panel cutout installation.

IP65 rating protects against dust and water ingress. Rated for 250 V AC at 1 A contact current. Operates safely from -25°C to 120°C. Quick connect and solder tag terminal types for ease of installation. Certified to CSA and UL standards for quality assurance.

Explore the range of Idec Push Button Switches and components to support your automation and electrical projects with reliable and certified control devices.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile control functions in various applications.

It operates reliably at a maximum temperature of 120°C, making it suitable for a wide range of industrial environments.

The switch is designed for a panel cutout size of 16 mm, ensuring compatibility with standard panel mounting applications.

It has an IP65 rating, which ensures it is dust tight and protected against water jets, suitable for harsh conditions.

The switch is rated for a contact AC voltage of 250V AC, making it suitable for various electrical applications.

This unit has a switch contact current rating of 1A, allowing it to handle moderate electrical loads effectively.

It supports quick connect and solder tag terminal types, providing flexibility for various wiring configurations.

The actuator is styled as a button and is white in color, designed for ergonomic and precise switching action.

It operates effectively within a temperature range of -25°C to 120°C, ensuring functionality in diverse environments.

The switch meets CSA and UL certification standards, ensuring compliance with industrial safety requirements.

The switch features a green LED indicator, providing clear visual feedback for operational status.

This model is suitable for applications such as programmable logic controller (PLC) inputs and control panels, where reliable momentary switching is required.
