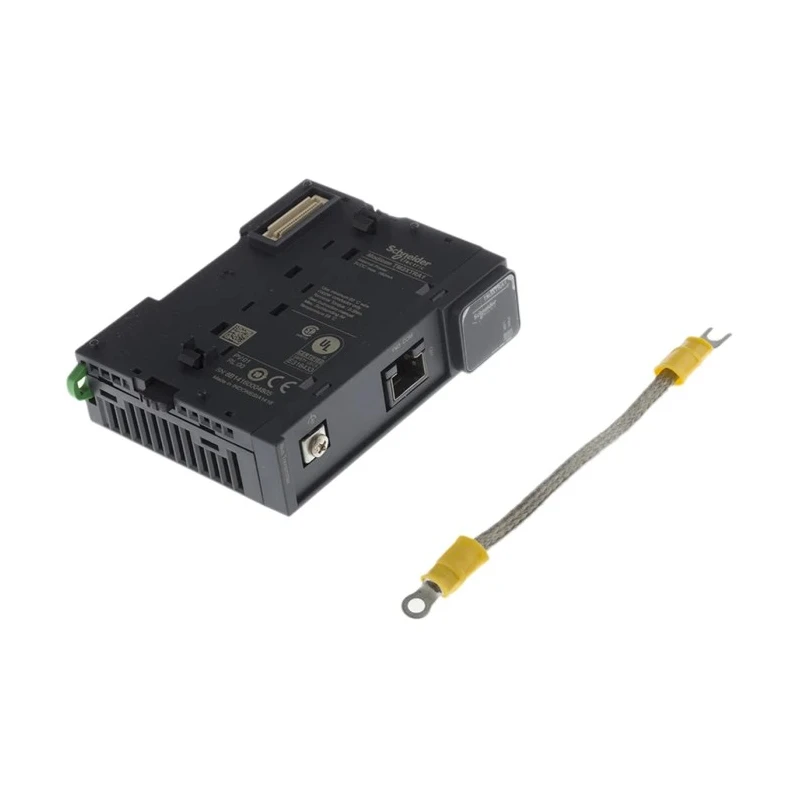

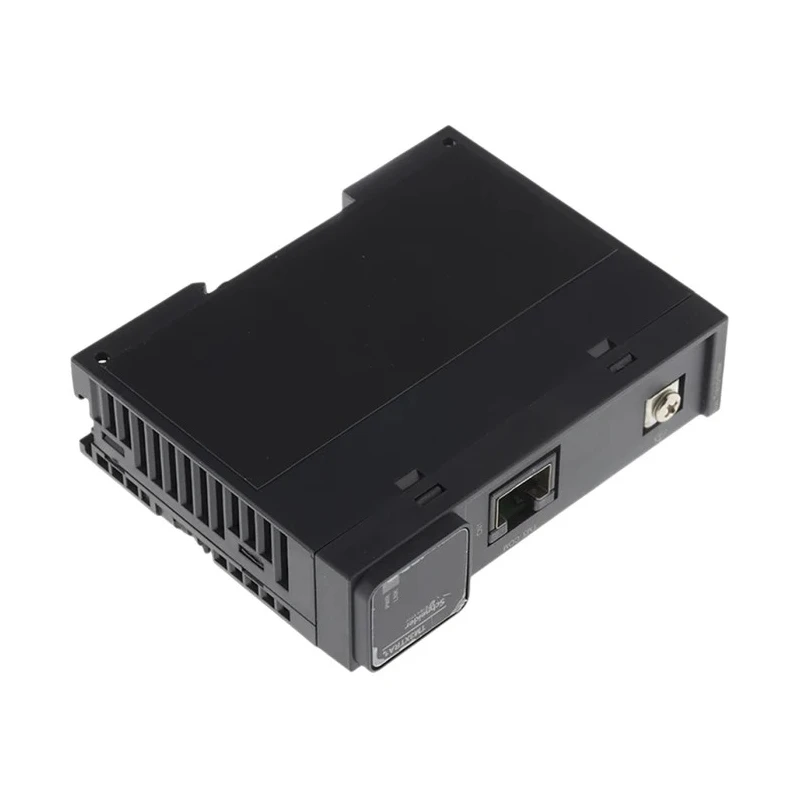

Schneider Electric PLC Expansion Module for use with Modicon M2xx TM3XTRA1

Schneider Electric TM3XTRA1 is a PLC Expansion Module designed for use with Modicon M2xx series logic controllers, including models M221, M241, and M251. This module provides an effective solution to extend the input/output capabilities of these controllers, supporting industrial automation applications that require greater control and monitoring.

The TM3XTRA1 module features 12 inputs and 8 outputs, offering flexible and enhanced connectivity for various control processes. The compact design has a depth of 73.3 mm and width of 23.65 mm, making it suitable for installations within confined control panels. The module complies with CSA standards, underscoring its quality and adherence to industrial safety requirements.

Integration is streamlined with an RJ45 connector compatible with the VDIP184546xxx bus expansion cable, facilitating efficient communication between modules. Status LEDs provide clear visual indication of communication and power supply conditions, enhancing diagnosability during operation.

The expansion system supports remote mounting flexibility, allowing some modules to be located up to five meters away within an enclosure or additional cabinet via the bus expansion system, significantly aiding complex machine configurations.

Mounting options include plate or panel installation, using the TMAM2 kit (stock no. 806-7102) for secure attachment. The module's design incorporates symmetrical rail locking clips and locking latches for stability during use.

Schneider Electric’s Modicon TM3 system represents the next generation of intuitive machine automation solutions, built to improve manufacturing efficiency and machine performance throughout the product lifecycle. This TM3XTRA1 expansion module exemplifies the system’s flexibility and functionality for diverse industrial automation needs.

Designed for Modicon M221, M241, and M251 logic controllers. 12 inputs and 8 outputs expand control capabilities. Compact dimensions with 73.3 mm depth and 23.65 mm width. CSA certified for industrial safety compliance. RJ45 connector supports bus expansion cable integration.

LED indicators for communication and power status. Supports remote location up to 5 meters with bus expansion system. Panel or plate mounting with TMAM2 kit. Explore more PLC Expansion Modules from Schneider Electric and enhance your automation systems with reliable and scalable solutions available at EnvMart.
