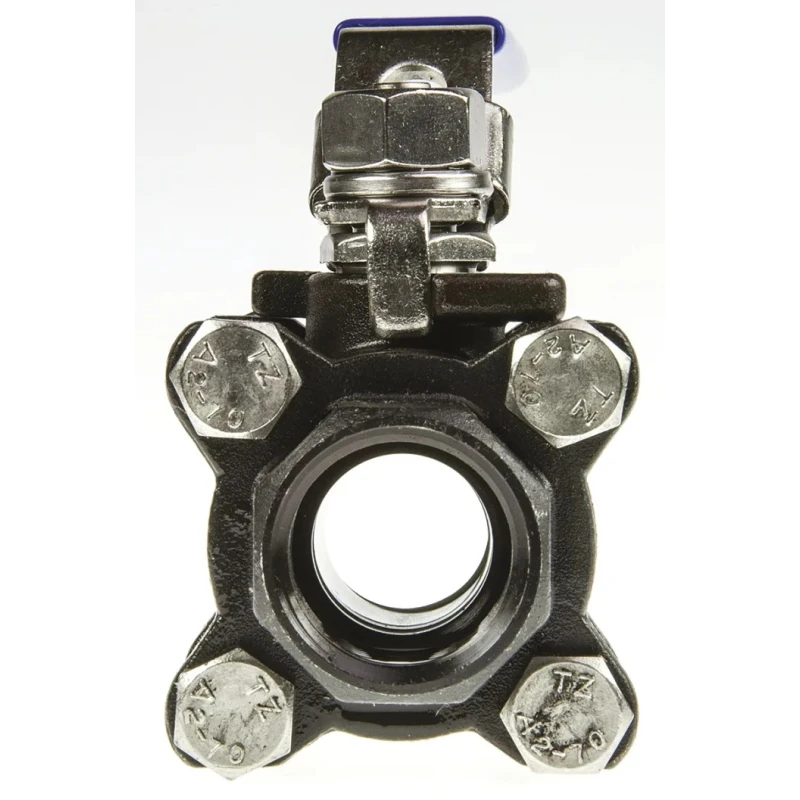

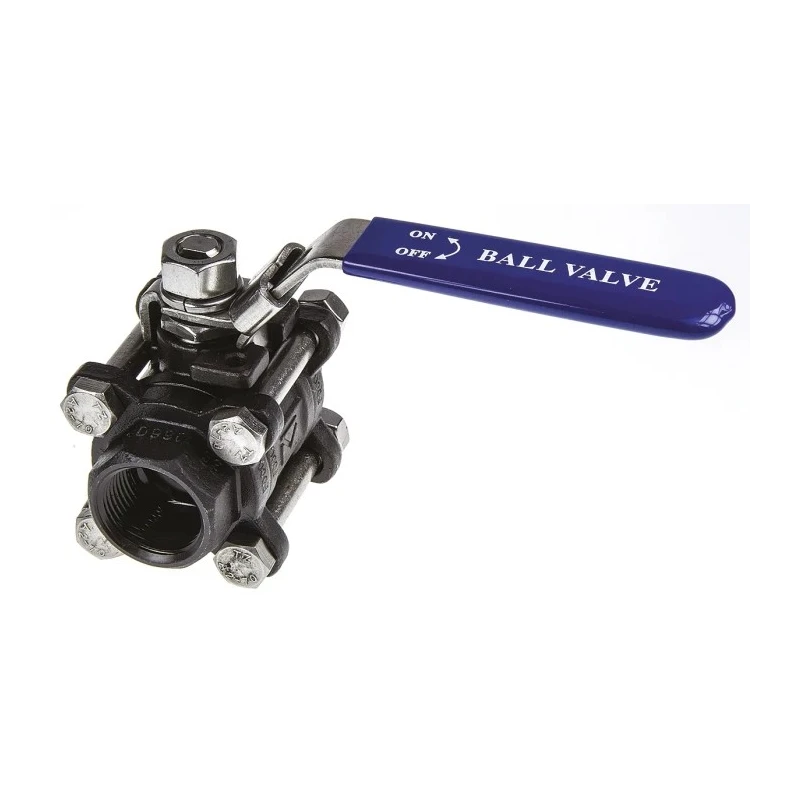

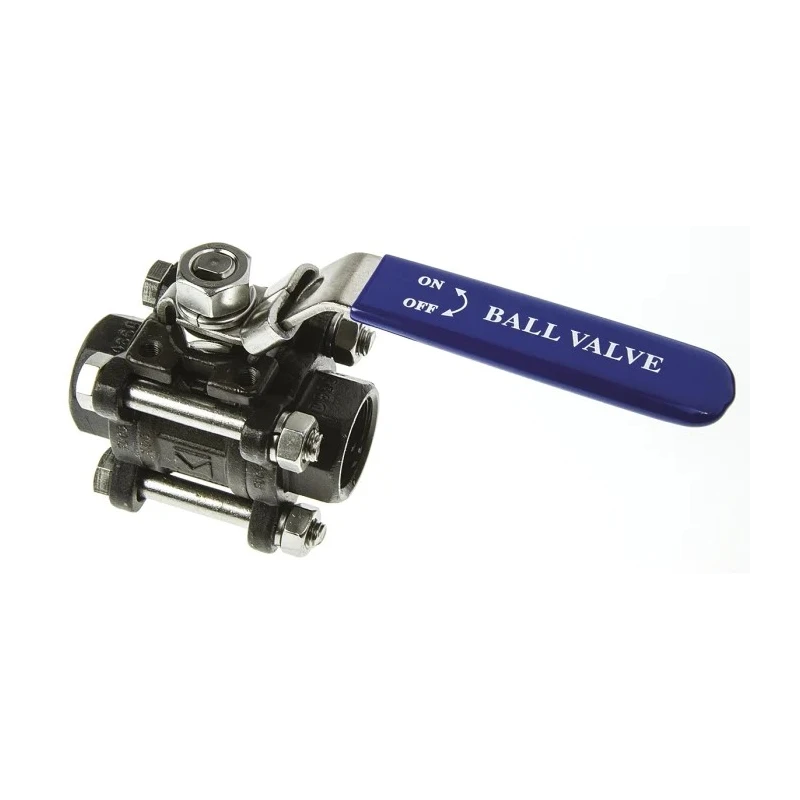

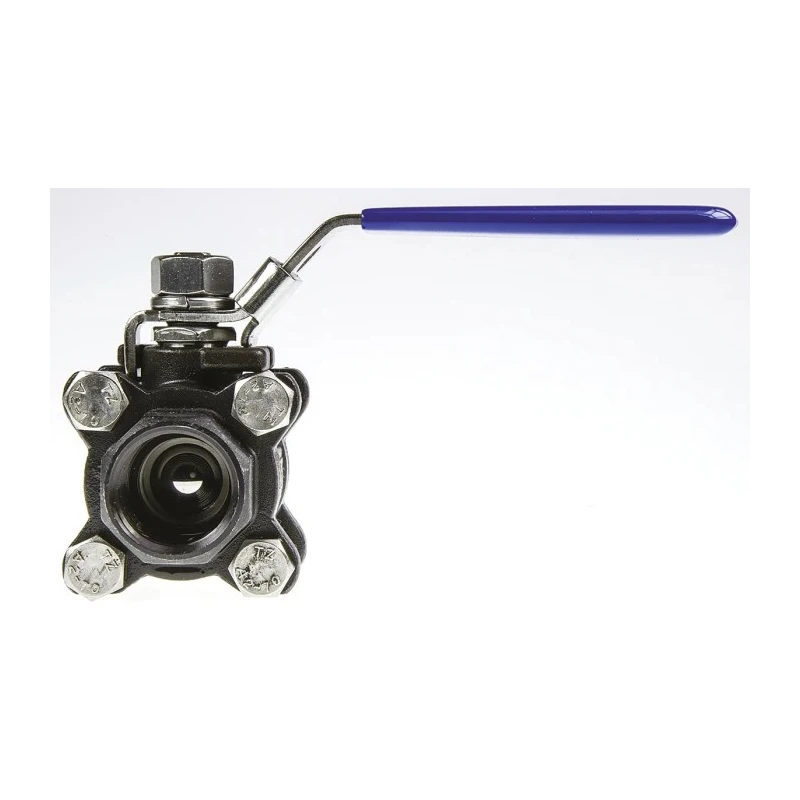

RS PRO Stainless Steel Threaded Full Port Ball Valve BSPP 3/4 in, 69 Bar, 230°C 764-4238
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 69 bar |
| Outlet Connection Type | Threaded |
| Model | 764-4238 |
| Handle Material | Stainless Steel |
| Valve Type | Full Port |
| Maximum Operating Temperature | 230°C |
| Thread Type | ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | DIN 3202/4-M3-2013SM3 (option), TA-Luft Approved (option), ISO 5211 |
| Inlet Port Size | 3/4 in |
| Inlet Thread Standard | BSPP |
| Inlet Port Gender | Female |
| RS PRO Nitrile Rubber (NBR) Pipe Insulation x 3 mm x 15 mBrand | RS PRO |
| W.P | 1000 WOG (PN63) |
| W.T | -20°C to 200°C |
| RS PRO Stainless Steel, Manual Ball Valve, BSPP 3/4inBrand | RS PRO |
Key Features
- Constructed from high-quality stainless steel ensuring corrosion resistance.
- Full port design allows for unrestricted flow and minimal pressure drop.
- Threaded inlet and outlet with BSPP standard and female port gender.
- Maximum operating pressure of 69 bar suitable for industrial fluid control.
- Handle and body both made of stainless steel for durability and strength.
- Operating temperature range from -20°C to 230°C for versatile applications.
- Features a blow-out proof stem and ISO 5211 mounting pad for actuator compatibility.
- Three-piece design allows in-situ maintenance and servicing for reduced downtime.
Product Description
RS PRO 764-4238 Stainless Steel Threaded Full Port Ball Valve, BSPP 3/4 inch size, designed for industrial fluid control requiring robust valve solutions capable of handling pressures up to 69 bar and temperatures reaching 230°C.
This high-quality valve is constructed from stainless steel ASTM A350-CF8M and ASTM A216-WCB for body and cap, ensuring excellent corrosion resistance and mechanical strength. The ball component is made from ASTM A351-CF8M stainless steel, and the stem is stainless steel ASTM A276-316, delivering high durability and reliability. Seats are manufactured from PTFE with 15% reinforced glass fibre, providing excellent sealing performance.
The valve features a full port design which minimizes flow resistance and avoids pressure drops, critical for applications demanding precise fluid control. Both inlet and outlet ports are threaded following the BSPP female standard, compatible with various piping systems. The valve includes a stainless steel handle with a thermally insulating sleeve, preventing user discomfort during high temperature operations.
Key design elements include a blow-out proof stem to ensure safety, adjustable stem packing, and compliance with ISO 5211 mounting pads to allow easy installation of actuators for automation. The three-piece valve design provides the advantage of in-place maintenance and servicing, greatly reducing downtime and maintenance costs.
This valve is suitable for use in various industrial, mechanical, fluid power, HVAC, manufacturing, and water treatment setups where high pressure and temperature resistance valves are required.
Corrosion resistant stainless steel construction for longevity. Full port design supports maximum flow capacity. Threaded connections with BSPP standard for easy installation. Robust construction benefits industrial and HVAC applications.
High temperature and pressure rating of 230°C and 69 bar respectively. Lockable handle with thermal insulation for safety and user comfort. Blow-out proof stem ensures operational safety. ISO 5211 mounting pad enables actuator attachment.
Three-piece design allows efficient maintenance. Explore the wide range of RS PRO industrial valves at EnvMart, the preferred destination for durable and reliable valve solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this ball valve is 69 bar.
This model operates within a temperature range of -20°C to 230°C.
The valve body is constructed from stainless steel ASTM A350-CF8M and ASTM A216-WCB, while the ball is made from ASTM A351-CF8M stainless steel, and the stem is stainless steel ASTM A276-316.
The valve features threaded connections with BSPP female standard for both the inlet and outlet ports.
Yes, it includes a blow-out proof stem to ensure operational safety.
This valve has a three-piece design that allows for in-situ maintenance and servicing, which helps reduce downtime.
Yes, it complies with ISO 5211 mounting pads, allowing for easy installation of actuators for automation.
This product is a full port ball valve, designed for maximum flow capacity and minimal pressure drop.
The valve meets standards such as DIN 3202/4-M3-2013SM3 and is optionally TA-Luft Approved and compliant with ISO 5211.
The inlet port size of this valve is 3/4 inch.
It features a stainless steel handle with a thermally insulating sleeve to prevent user discomfort during high temperature operations.
This valve is suitable for various industrial, mechanical, fluid power, HVAC, manufacturing, and water treatment applications.
