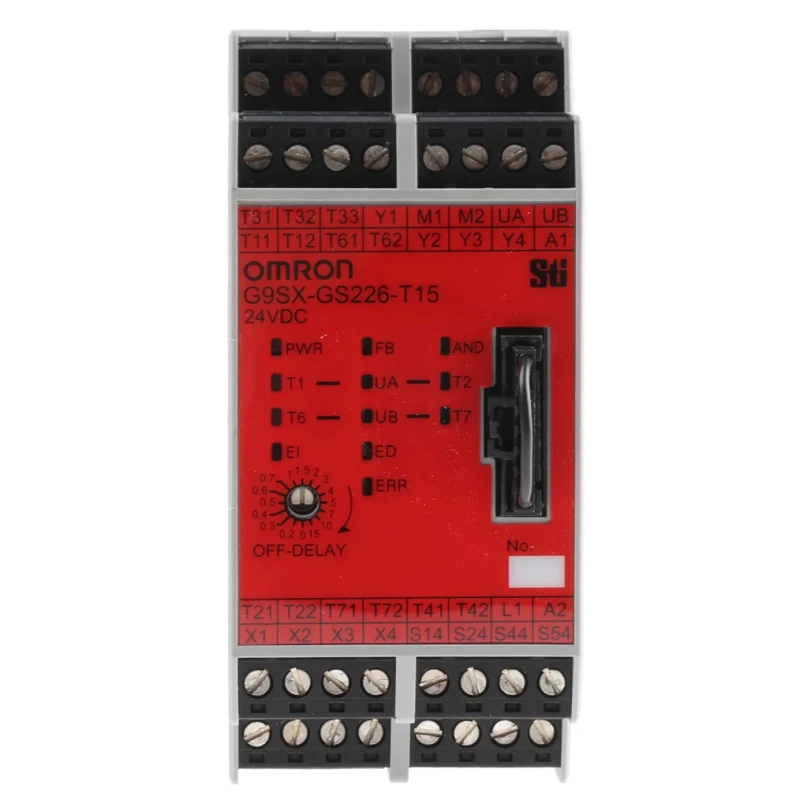

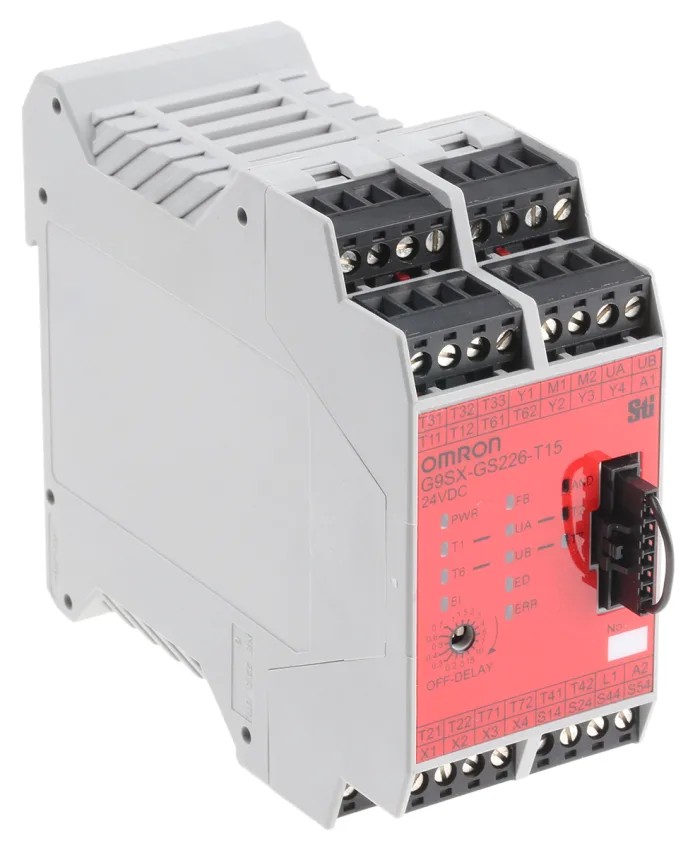

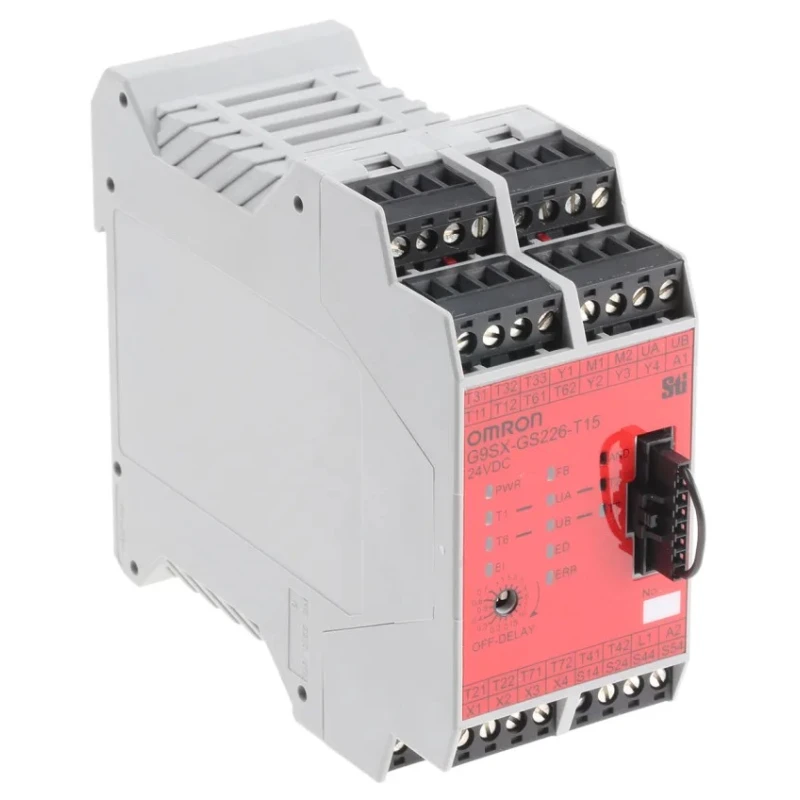

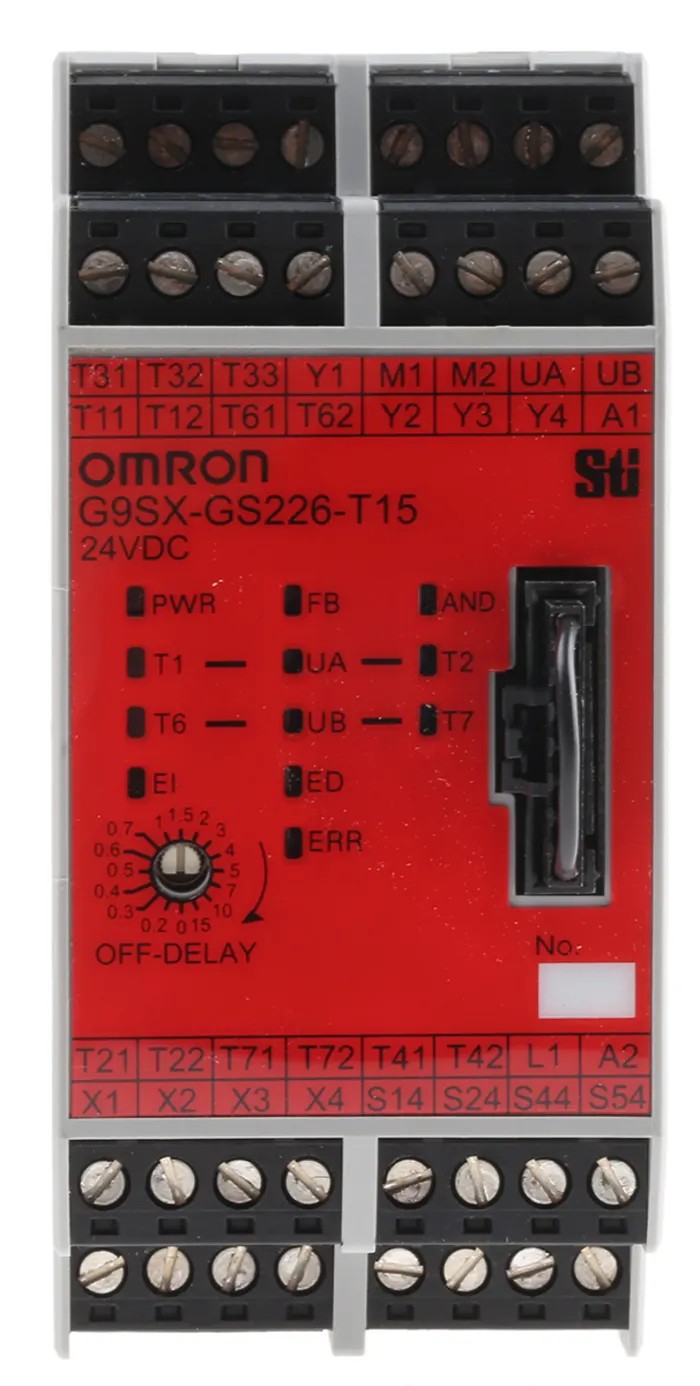

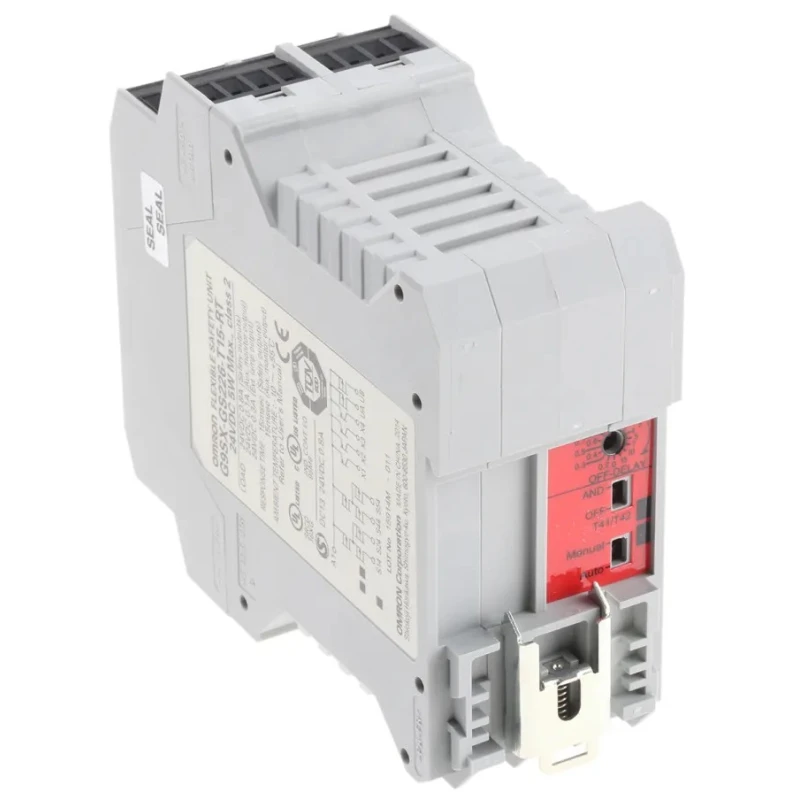

Omron Safety Relay 24V DC Coil Voltage 0.8A Contact Current 4 Auxiliary Contacts Manual Reset Surface Mount G9SX-GS

Omron G9SX-GS Safety Relay with 24V DC coil voltage provides reliable control for emergency stop and hazardous motion circuits in industrial automation systems. This model G9SX-GS226-T15-RT DC24 features a 0.8A rated contact current with four auxiliary contacts to expand control functions and signaling capabilities. The manual reset prevents automatic restarts after fault clearance, ensuring safety compliance in production environments.

Its compact surface mount form factor uses screw terminals for secure wiring and ease of maintenance. The relay switches both AC and DC circuits at 24V, supporting versatile control scenarios. Designed to operate in temperatures ranging from -10°C to 55°C, it is suited to varied industrial conditions.

The 15-second time delay facilitates controlled release sequences during safety operations. Power consumption is low at 5 watts, reducing impact on control supplies. Safety category 4 certification and approvals including CSA, UR, and EN highlight its suitability for critical safety applications.

Typical uses include integration in emergency stop circuit arrangements on production lines, interlock monitoring for safety enclosures and guards, interfacing with safety PLCs for extending discrete safety I/O, monitoring guard doors in automated assembly cells, and enabling safe machine restart procedures after faults.

Four auxiliary contacts provide enhanced safety control and signaling. Manual reset avoids unwanted automatic restarts for safer operation. Fifteen second delay time supports safety sequence timing. Surface mount design with screw terminals ensures easy installation.

Operates reliably in industrial temperature ranges from -10°C to 55°C. Low 5 watt power consumption reduces load on control circuits. Compatible with 24V AC and DC switching for broad applications. Safety category 4 suitable for emergency stop and hazardous motion control.

Certified by CSA, UR, and EN standards assuring product safety compliance.

This Omron safety relay is a robust choice for industrial, manufacturing, and automation safety systems. It ensures reliable interruption of power to machinery in hazardous situations, meeting stringent safety requirements. Suitable for applications in electrical, electronics, and mechanical safety control frameworks.
