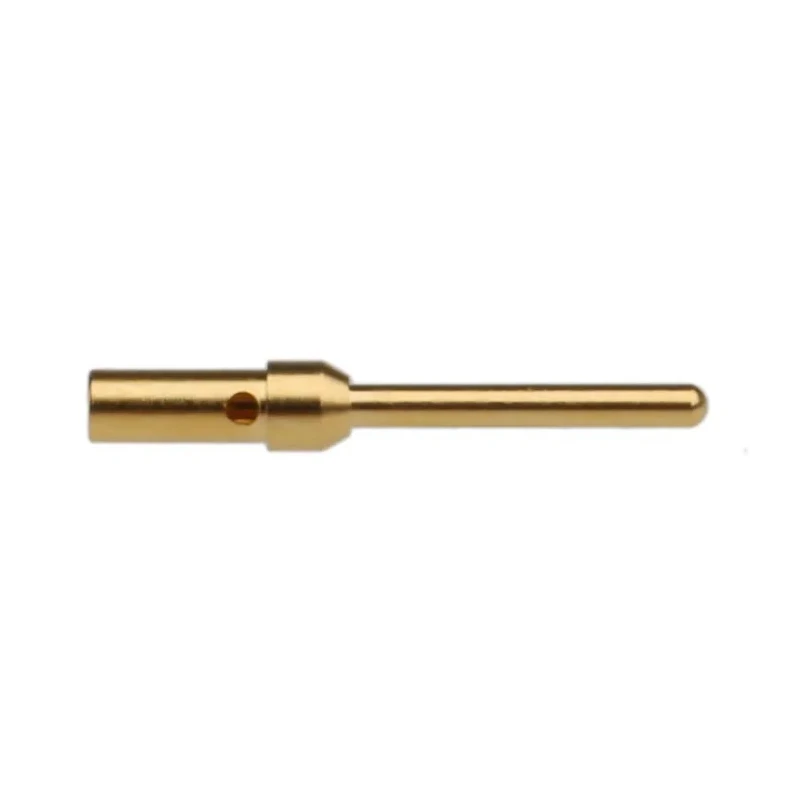

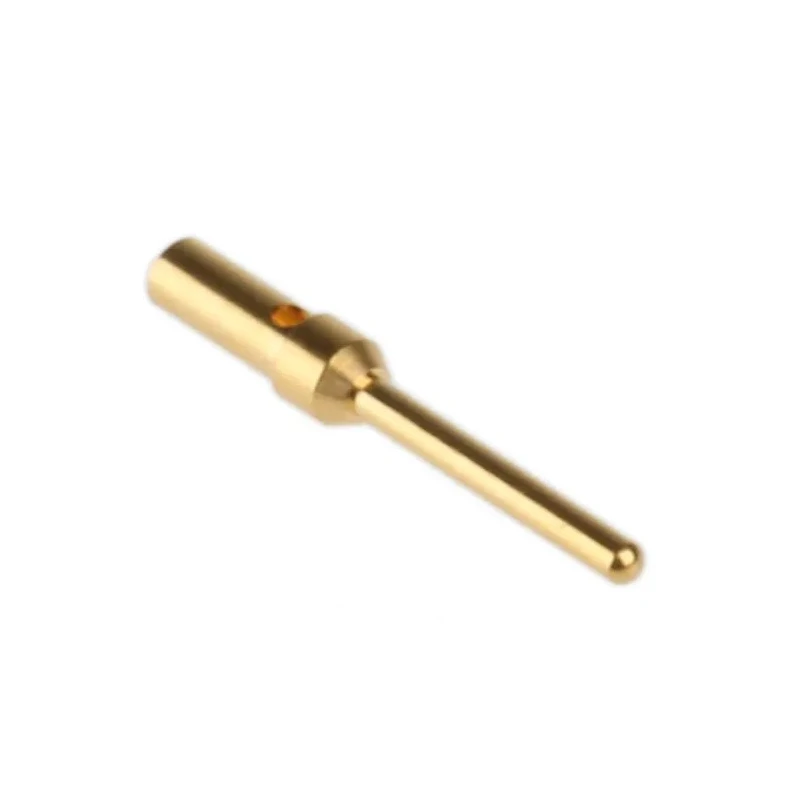

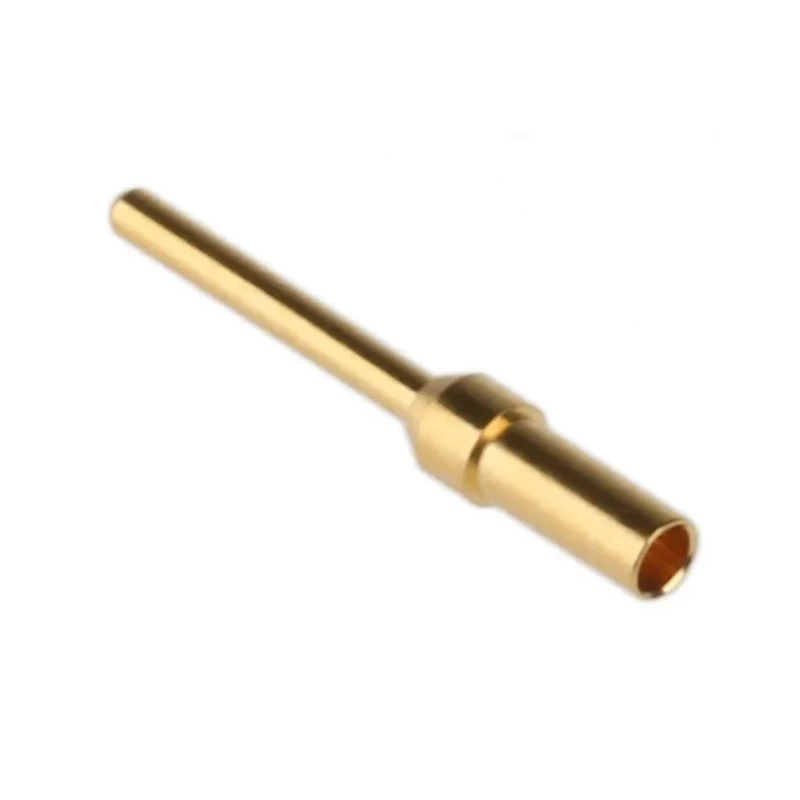

HARTING D-Sub Standard Series Male Crimp Circular Connector Contact 1.04 mm Gold over Nickel Signal 18 AWG 09670003576
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Length | 14.2mm |
| Gender | Male |
| Contact Material | Nickel |
| Series | D-Sub Standard |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 0.82mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Contact Size | 1.04 mm |
| Maximum Contact Resistance | 20mΩ |
| Harting Male Crimp D-sub Connector Contact Signal, 18-22 AWGBrand | HARTING |
| Harting Male Crimp PCB Header, Gold over Nickel SignalBrand | HARTING |
Key Features
- Constructed with nickel contact material and gold over nickel plating for enhanced conductivity.
- Compatible with wire sizes from 18 AWG to 22 AWG (0.33 mm² to 0.82 mm²).
- Designed for crimp termination ensuring secure and reliable connections.
- Contact length measures 14.2 mm for standard usage in D-Sub connectors.
- Maximum contact resistance rated at 20 milliohms for optimal signal integrity.
- Suitable for use in electronics, telecommunications, and industrial control systems.
- Made in Switzerland ensuring adherence to rigorous quality standards.
Product Description
HARTING 09670003576 D-Sub Standard Series male crimp circular connector contact is engineered for high-quality signal connections in electronic assemblies. Featuring a contact size of 1.04 mm and termination by crimp, it accommodates wire sizes ranging from 18 AWG to 22 AWG (0.33 mm² to 0.82 mm²). The contact material is nickel plated with gold over nickel which ensures excellent conductivity and corrosion resistance.
This connector contact is designed specifically for D-Sub standard series connectors and provides a low maximum contact resistance of 20 milliohms, making it highly suitable for signal transmission in demanding industrial, telecommunications, and electronic control applications. With a length of 14.2 mm, it fits seamlessly into standard D-Sub connector assemblies.
The crimp termination enables secure and efficient installation, supporting high-volume manufacturing processes.
Its application includes use in electronic instrumentation, automation controls, telecommunications devices, and other industrial electrical systems where reliable signal contacts are critical.
Constructed with nickel contact material and gold over nickel plating for enhanced conductivity. Compatible with wire sizes from 18 AWG to 22 AWG (0.33 mm² to 0.82 mm²). Designed for crimp termination ensuring secure and reliable connections.
Contact length measures 14.2 mm for standard usage in D-Sub connectors. Maximum contact resistance rated at 20 milliohms for optimal signal integrity. Suitable for use in electronics, telecommunications, and industrial control systems.
Made in Switzerland ensuring adherence to rigorous quality standards.
Explore similar high-quality Circular Connector Contacts and D-Sub connector components in the Electronics & Electricals category at EnvMart to find the perfect fit for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact resistance is rated at 20 milliohms, ensuring optimal signal integrity.
It is compatible with wire sizes ranging from 18 AWG to 22 AWG, which corresponds to 0.33 mm² to 0.82 mm².
The contact length measures 14.2 mm, making it suitable for standard usage in D-Sub connectors.
The contact material is nickel, with gold over nickel plating for enhanced conductivity and corrosion resistance.
This model uses crimp termination, which ensures secure and reliable connections.
It is suitable for use in electronics, telecommunications, and industrial control systems where reliable signal contacts are critical.
This connector contact is male gendered.
The contact size is 1.04 mm, designed specifically for D-Sub standard series connectors.
It is manufactured in Switzerland, ensuring adherence to rigorous quality standards.
This model is designed for signal contact applications, making it suitable for various electronic assemblies.
The connector accommodates wire sizes from 0.33 mm² to 0.82 mm².
Yes, the crimp termination design supports efficient installation, making it suitable for high-volume manufacturing processes.
