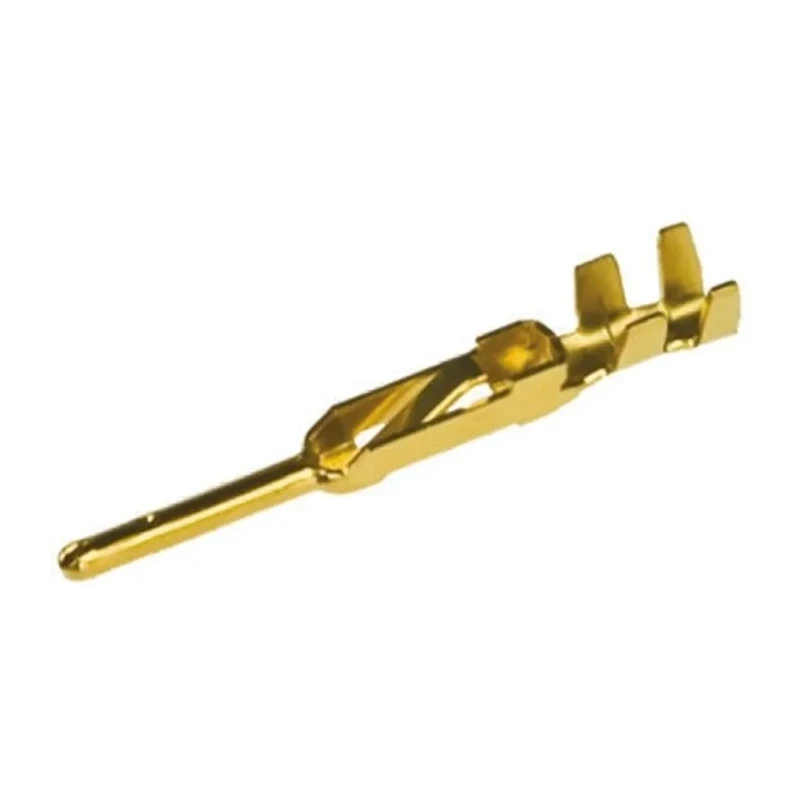

JAE Male Crimp Circular Connector Contact 3A 200V AC Gold Over Nickel Plating JN1-22-22P-PKG100
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | JAE |
| Current | 3A |
| Length | 13.9mm |
| Model | JN1-22-22P-PKG100 |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | JN1 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Contact Type | Machined |
| Minimum Operating Temperature | -20°C |
| For Use With | JN1 Series Connectors |
| Contact Plating | Gold over Nickel |
Key Features
- Constructed from copper alloy for durable and conductive contact material.
- Features gold over nickel contact plating to ensure excellent corrosion resistance and electrical performance.
- Designed with crimp termination type to provide secure and efficient cable connections.
- Operates effectively within a temperature range of -20°C to 125°C.
- Measures 13.9 mm in length, suitable for JN1 Series connectors.
- Offers a machined contact type for precision and reliability.
- Provides waterproof and dustproof connectivity with IP67 rated JN Series housing compatibility.
- Ideal for use in industrial, electronic, and power connector applications requiring robust circular contacts.
Product Description
JAE JN1-22-22P-PKG100 Male Crimp Circular Connector Contact is a precision engineered component designed to provide secure electrical connections in demanding applications. Rated at 3 amperes and suitable for 200V AC, it ensures efficient current carrying capacity for medium power electronic circuits and industrial controls.
The contact is manufactured from high-grade copper alloy, offering excellent electrical conductivity and mechanical stability. It features gold plating over nickel which enhances corrosion resistance and maintains long-term reliable conductivity under harsh environmental conditions.
Termination via crimp ensures a tight and durable mechanical and electrical connection to cables, facilitating easy assembly and serviceability. The contact's length is precisely 13.9 mm, engineered to be compatible with the JN1 Series connectors by JAE.
Designed to operate in temperatures ranging from -20°C to 125°C, this connector contact supports a wide range of applications, including industrial machinery, electronic devices, and power connectors that require rugged and reliable interconnect solutions.
The JN Series connectors incorporate an IP67 rated push and twist one-touch lock mechanism, making the combination waterproof and dustproof. This contact maintains the same standards, contributing to robust and long-lasting connector assemblies suitable for indoor and outdoor industrial environments.
Constructed from copper alloy contact material. Gold over nickel contact plating ensures corrosion resistance and durable performance. Crimp termination type provides secure cable connection. Rated for 3A current and 200V AC voltage.
Operating temperature from -20°C to 125°C. Precision machined contact type for reliable connectivity. Compatible with JN1 Series circular connectors by JAE with IP67 protection. It is suitable for electronic manufacturing, industrial automation, telecommunications, and other fields requiring secure circular connector contacts.
Explore high-quality Circular Connector Contacts and accessories on EnvMart for your next project or material replenishment need.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 3A current and 200V AC voltage, making it suitable for medium power electronic circuits and industrial controls.
It operates effectively within a temperature range of -20°C to 125°C, allowing for use in various environments.
The contact is constructed from high-grade copper alloy, which provides excellent electrical conductivity and mechanical stability.
It features a crimp termination type, ensuring a secure and efficient connection to cables.
The length of this contact is precisely 13.9 mm, designed for compatibility with JN1 Series connectors.
It has gold plating over nickel, which enhances corrosion resistance and maintains reliable conductivity.
Yes, it is designed for use with JN1 Series connectors by JAE, ensuring proper fit and functionality.
This contact features a machined type, which contributes to precision and reliability in electrical connections.
Yes, it is compatible with IP67 rated JN Series housing, providing waterproof and dustproof connectivity.
It is suitable for use in industrial machinery, electronic devices, and power connectors requiring robust circular contacts.
This product is manufactured in India, ensuring compliance with local production standards.
Key features include gold over nickel plating, crimp termination, a wide operating temperature range, and compatibility with JN1 Series connectors.
