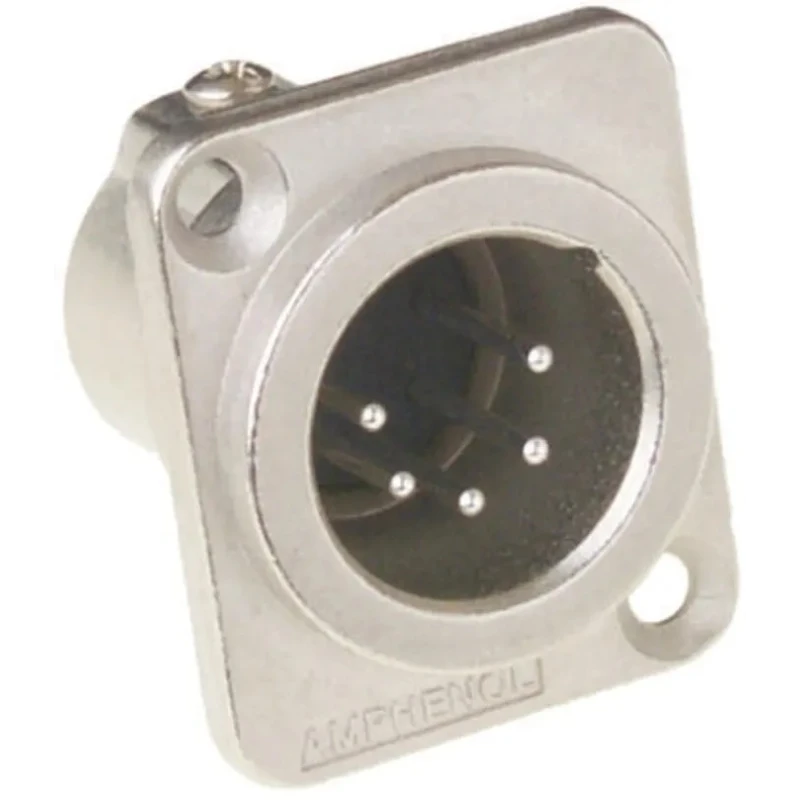

Amphenol PCD US Panel XLR Connector, Straight Orientation, 133V, 7.5A, Male, 5 Contacts, Silver Plating AC5MDZ

Amphenol PCD US AC5MDZ Panel XLR Connector is a high-quality, straight male connector designed for panel mounting applications. It features 5 silver-plated contacts that ensure excellent electrical conductivity and resistance to corrosion. The contacts are made of phosphor bronze, housed in a robust zinc alloy casing, providing durability and longevity in demanding environments.

This connector supports electrical ratings of 133 volts and 7.5 amperes, making it suitable for a wide range of electronic and audio-visual equipment requiring secure and stable connections. The termination type is solder bucket, facilitating reliable wire attachment during assembly processes.

The AC5MDZ connector operates efficiently within a temperature range of -25°C to 75°C, accommodating various industrial and commercial applications. Its compact 32.1mm length and D size housing allow for versatile front or rear panel mounting using the same panel cutout, simplifying installation and maintenance.

The connector includes a positive latch lock system that ensures a secure mating with compatible devices, preventing accidental disconnection during use. This feature is critical in professional audio and video environments where signal integrity is paramount.

Belonging to the AC Z series, this connector is designed specifically for demanding AV connector requirements and is manufactured in China under stringent quality standards, although no formal certifications are indicated. Its silver plating and metal housing provide robust mechanical and electrical performance.

Features a silver-plated contact for improved conductivity and corrosion resistance. Constructed with a durable zinc alloy housing and phosphor bronze contacts. Designed for panel mounting with solder bucket termination.

Operates reliably between -25°C and 75°C temperature range. Compact length of 32.1mm ensures easy integration in electronic assemblies. Includes positive latch lock system for secure connections. Part of the AC Z series with D size housing fitting standard panel cutouts.

Ideal for professional AV, audio, and industrial electronic applications.

This connector is suitable for use in industrial electronics, audio equipment, broadcast setups, and other commercial or manufacturing environments that require reliable panel-mounted XLR Connectors with high current and voltage ratings.
