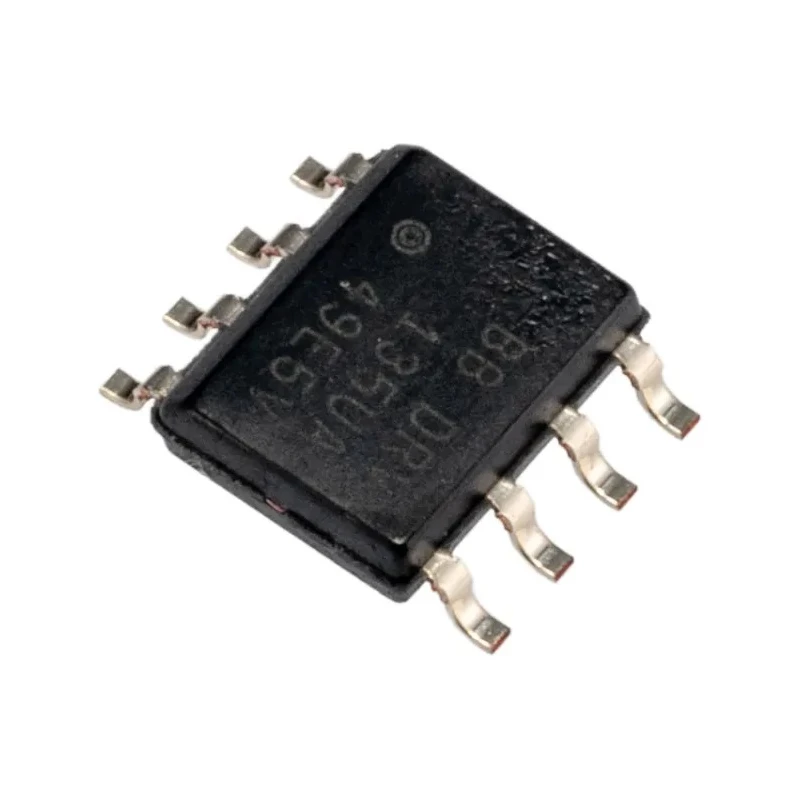

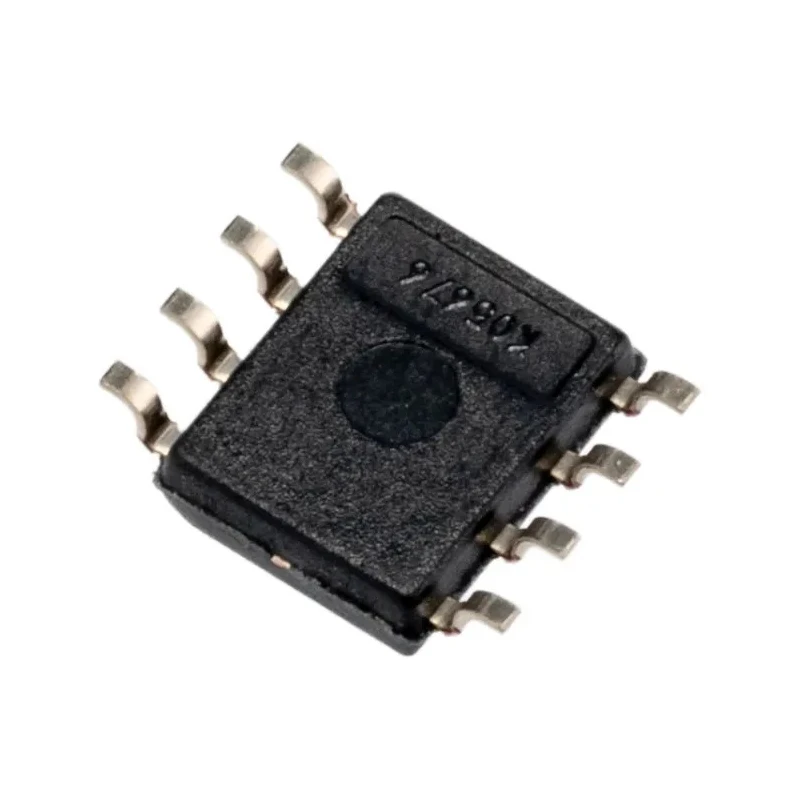

Texas Instruments Audio Line Driver Amplifier SOIC 8-Pin, 0.09W Output Power, Class A-B DRV135UA

Texas Instruments DRV135UA is a high-performance audio line driver amplifier designed for audio equipment requiring reliable amplification with low power consumption. The device comes in a compact 8-pin SOIC surface mount package suitable for automated PCB assembly processes.

This amplifier operates across a supply voltage range of 4.5V to 18V and delivers an output power of 0.09W. It features class A-B amplifier architecture, providing efficient and high-fidelity audio signal amplification with a gain bandwidth product of 1.5MHz. The single channel design facilitates straightforward integration within audio signal chains.

The DRV135UA supports a broad ambient temperature range from -40°C to 85°C, making it suitable for diverse environments including industrial electronics and audio devices. Its physical dimensions are optimized for modern PCB layouts, measuring 10.16mm in length, 6.6mm in width, and 8.26mm in height. The package type is SOIC, supporting surface mounting to enhance manufacturing efficiency.

This amplifier is not compliant with automotive standards, focusing on general consumer and professional audio equipment uses.

Common applications include audio equipment amplification, signal conditioning in audio lines, and other electronic systems requiring stable audio line driving. Its low power consumption of 0.09W helps in energy-efficient device designs.

Set yourself for high quality audio amplification with the DRV135 series from Texas Instruments, renowned for reliability and performance in audio semiconductor components. Class A-B amplifier type for high fidelity audio output.

Single channel operation with 8-pin SOIC surface mount package. Operating voltage range from 4.5V to 18V for versatile power supply options. Wide operating temperature range from -40°C to 85°C suitable for various environments.

Gain bandwidth product of 1.5MHz ensures suitable audio frequency response. Compact dimensions: length 10.16mm, width 6.6mm, height 8.26mm for space saving PCB designs. No automotive standard compliance, intended for general audio applications.

Designed with surface mount technology (SMT) for automated assembly. Explore the broad catalog of Texas Instruments audio amplifier ICs at EnvMart to enhance your electronic design projects with trusted components.
