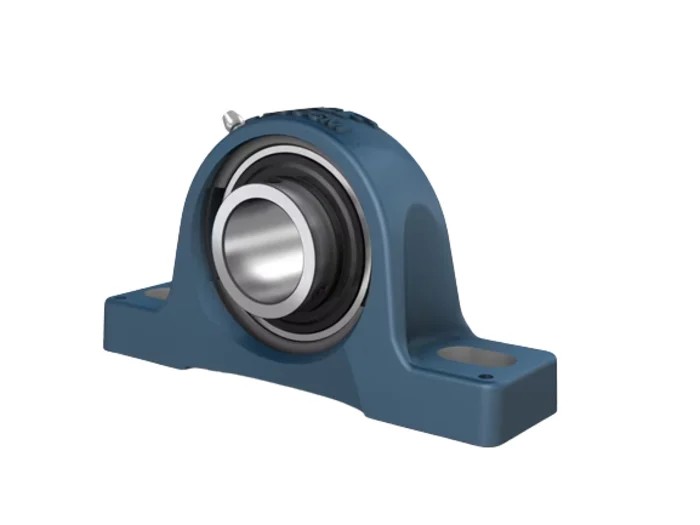

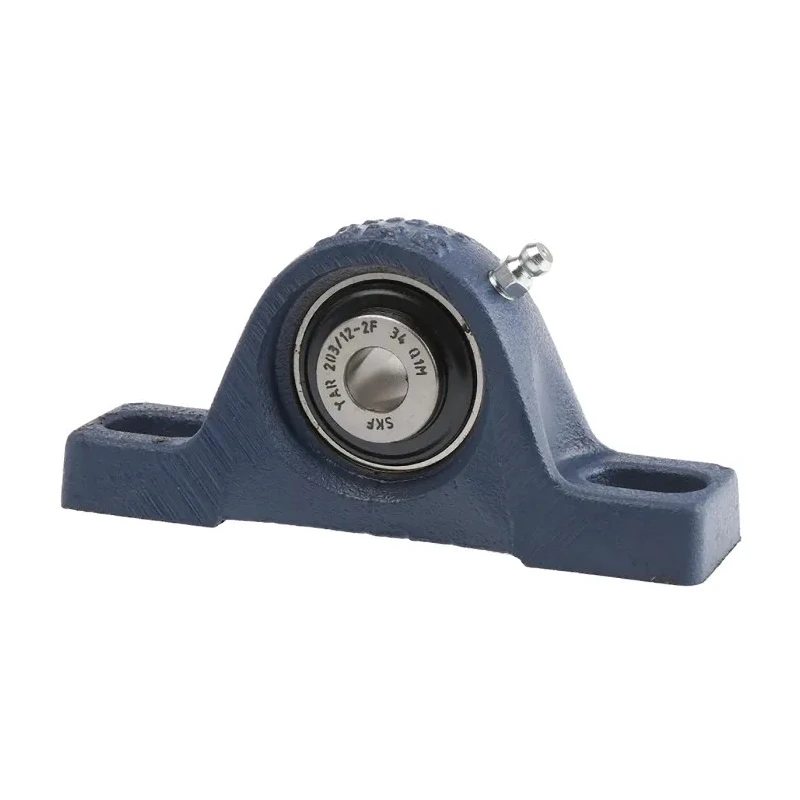

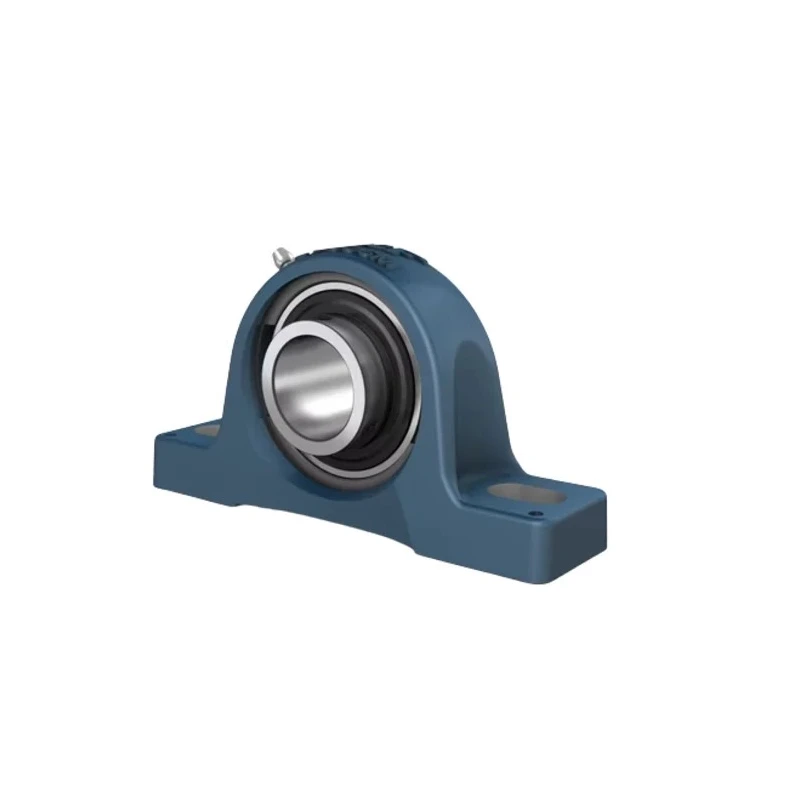

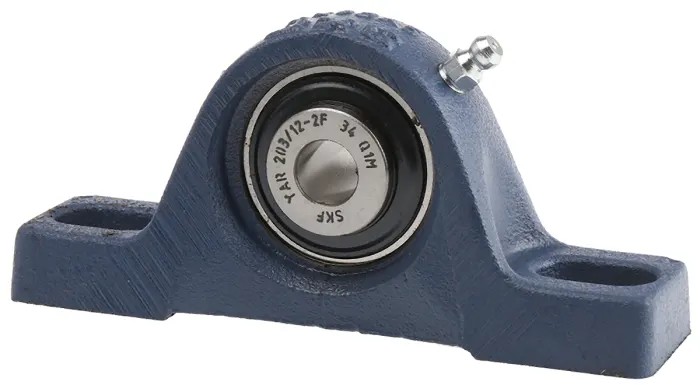

SKF Plummer Block House Cast Iron 12 mm Inside Diameter 9500 RPM Limiting Speed SY 12 TF

Free Delivery in India | Lowest Global Shipping Charges

SKF Plummer Block House Cast Iron 12 mm Inside Diameter 9500 RPM Limiting Speed SY 12 TF



Category Plummer Blocks & Pillow Blocks Brand SKF Condition New

Specifications

Country of Origin	India
Brand	SKF
Material	Cast Iron
Height	57mm
Length	127mm
Model	SY 12 TF
Depth	32mm
Inside Diameter	12mm
Limiting Speed	9500 r/min
Static Load Rating	4.75 kN
Mount Hole Size	10 mm
Mount Hole Centre-to-Centre	97mm
Centre Height	30.2mm
Dynamic Load Capacity	9.56 kN
SKF SY 15 TF Plummer Block House -, 15 mm IDBrand	SKF
NSK-RHP NP12 Pillow Block Bearing -, 12 mm IDBrand	NSK-RHP

Key Features

Durable cast iron housing provides resistance against impacts and abrasion.
Supports a dynamic load capacity of 9.56 kN and a static load rating of 4.75 kN.
Features seal and flinger on both sides to protect against contaminants.
Equipped with an accessible relubrication hole for easy maintenance.
Includes two integral fixing holes for stable surface mounting.
Suitable for packaging equipment, cement manufacturing, and automated assembly line applications.
Center height is 30.2 mm with mount hole size of 10 mm for precise installation.

Product Description

The SKF SY 12 TF Plummer Block House is a high-performance housing unit designed specifically for rotary bearing applications requiring robust support and heavy load capacity. Manufactured with rugged cast iron, this plummer block features a 12 mm inside diameter to accommodate the corresponding shaft seamlessly.

Capable of operating at a limiting speed of 9500 revolutions per minute, the unit provides excellent reliability for rapid rotation tasks in industrial environments. Its durable construction is complemented by seals and flingers on both sides, effectively protecting the bearing housing from dust, dirt, and other contaminants, thus extending service life.

Maintenance is simplified with a convenient lubrication hole that facilitates smooth relubrication during operation, reducing downtime and preserving optimal performance. Two integral fixing holes enable secure mounting on a variety of surfaces, maintaining stability during heavy-duty operations.

Technical dimensions for installation include a center height of 30.2 mm, mount hole size of 10 mm, overall length of 127 mm, depth of 32 mm, mount hole centre-to-centre distance of 97 mm, and height of 57 mm. These precise measurements ensure compatibility with a wide range of machinery configurations.

This plummer block house is ideally suited for industrial applications such as packaging equipment, cement manufacturing plants, and automated assembly lines where durability, load support, and continuous operation are critical.

Durable cast iron housing provides resistance against impacts and abrasion. Supports a dynamic load capacity of 9.56 kN and a static load rating of 4.75 kN. Features seal and flinger on both sides to protect against contaminants.

Equipped with an accessible relubrication hole for easy maintenance. Includes two integral fixing holes for stable surface mounting. Suitable for packaging equipment, cement manufacturing, and automated assembly line applications.

Precise mounting dimensions ensure secure installation. Explore the comprehensive range of plummer block houses at EnvMart for quality bearing solutions designed to enhance mechanical performance across diverse industrial sectors.
