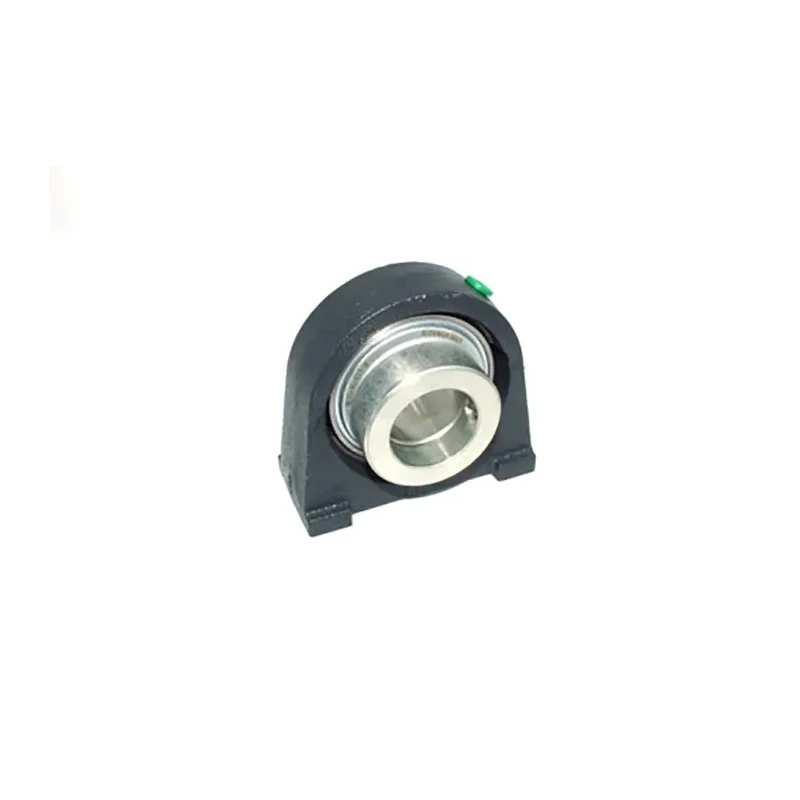

INA Cast Iron Plummer Block House 50 mm Inside Diameter RSHE50-XL-N

INA RSHE50-XL-N Plummer Block House, featuring a 50 mm inside diameter and constructed from cast iron, is engineered for durability and reliable bearing support in various industrial applications.

The plummer block housing unit includes INA radial insert ball bearings pre-fitted within a cast iron housing ensuring optimum fit and function. The spherical outside surface of the bearing outer ring combined with the concave bore design compensates for static angular misalignment of the shaft, enhancing operational reliability.

This model has a centre height of 57.2 mm, mount hole size of M16, length of 135 mm, depth of 62.8 mm, mount hole centre-to-centre of 101.6 mm, and height of 115 mm, providing a compact and robust footprint suitable for a wide range of industrial machinery.

Primarily used as a locating bearing, it is also suitable for non-locating applications under low load and speed conditions. The cast iron housing supports secure screw mounting on adjacent constructions with less stringent tolerances required on mounting surfaces, facilitating easier installation.

INA's RSHE series emphasizes sustainability with extended product life and energy-saving features, aligning with industrial efficiency goals. The housing material is cast iron providing strength and wear resistance. Inside diameter is 50 mm for compatibility with standard shafts.

Centre height is 57.2 mm to aid precise shaft alignment. Mount hole size M16 ensures secure fitting. Dimensions include length 135 mm, depth 62.8 mm, and height 115 mm. Spherical bearing and concave bore accommodate angular misalignment.

Suitable for locating and low-load non-locating bearing applications. Cast iron housing allows screw mounting with tolerance flexibility. This product finds industrial applications in manufacturing machinery, mechanical systems, HVAC equipment, and fluid power tools where reliable rotary bearing support is critical.

Choose INA Plummer Block Houses for high performance, durability, and energy-efficient operation in demanding industrial environments. Discover more reliable bearing solutions by exploring the extensive INA product range on EnvMart.
