Telemecanique Sensors Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M18 x 1 2-Wire Comfort 6V 5 NCB5-18GM40-Z1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 40mm |
| Model | NCB5-18GM40-Z1 |
| Depth | 18mm |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| Output type | 2-Wire |
| Series | Comfort |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 60V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 350Hz |
| Maximum Supply Voltage | 6V |
| Maximum Detection | 5mm |
| Standards/Approvals EN 60947-5-2, EN 60947-5-2 | 2004 |
Key Features

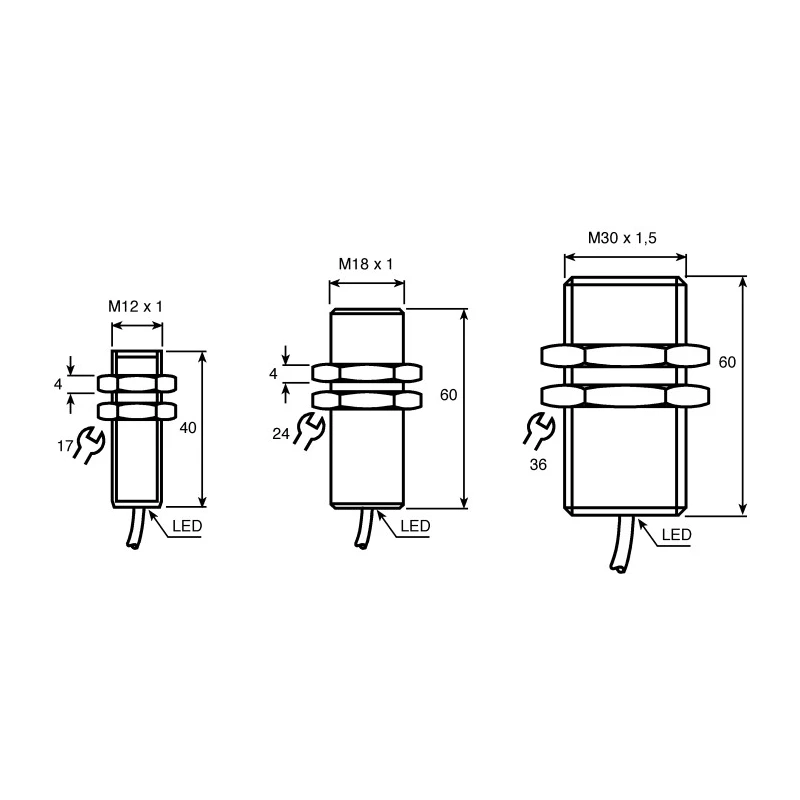

- The device features a compact M18 x 1 threaded barrel design with 40 mm length.
- It has an IP67 protection rating for dust and water resistance.
- Operates safely between -25°C and 70°C ambient temperature range.
- Offers up to 100 mA switching current with a maximum supply voltage of 6 V and maximum DC voltage of 60 V.
- LED indication enables easy status monitoring during operation.
- Shielded sensor for reliable detection with low interference.

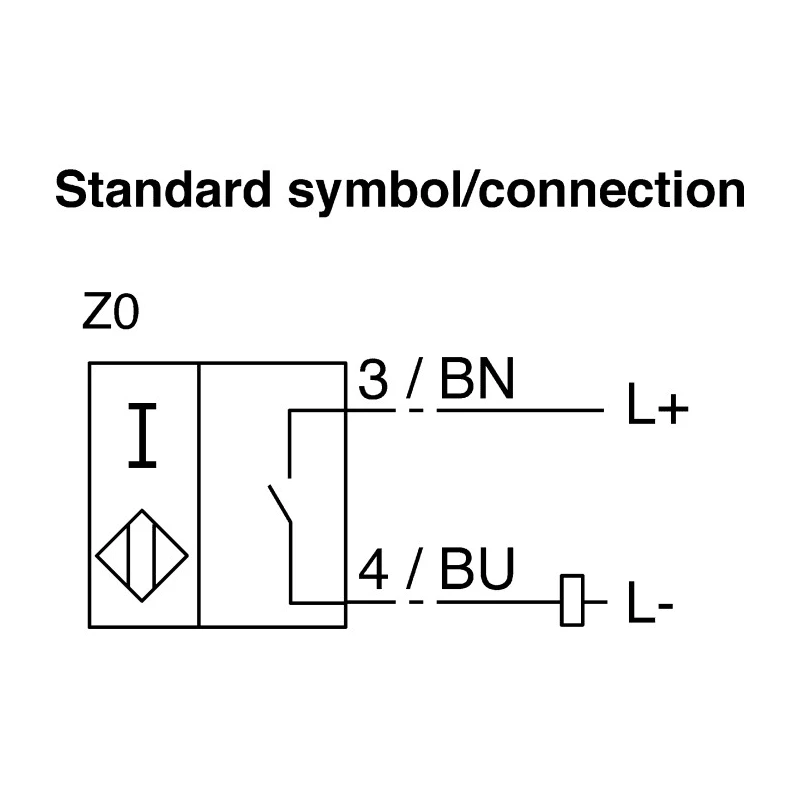

- 2-wire output type simplifies wiring and installation.
- Designed according to EN 60947-5-2 standards for reliability and safety.
Product Description

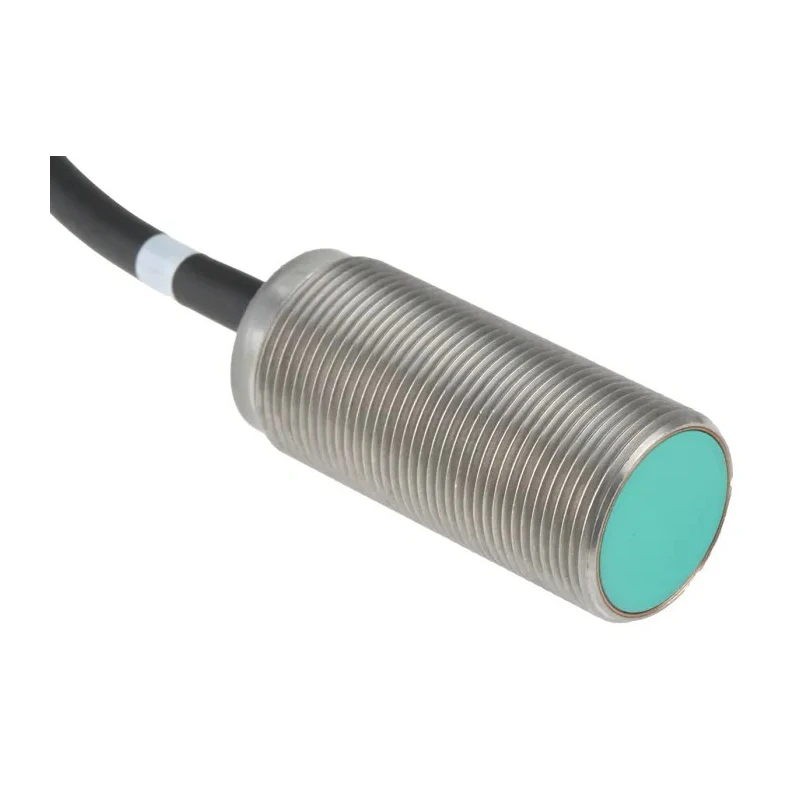

Telemecanique Sensors Pepperl + Fuchs NCB5-18GM40-Z1 is a threaded barrel Inductive Proximity Sensor designed for industrial automation applications. It features an M18 x 1 stainless steel housing with a robust PBT sensing face, ensuring durability in harsh environments.
With a detection range of 5 mm, this sensor provides precise object sensing capabilities. The device supports a maximum switching frequency of 350 Hz and a switching current of 100 mA, operated via a 2-wire output system and powered by a maximum supply voltage of 6 V (60 V dc max).
Its flush mounting design and IP67 rating guarantee protection against dust and water, making it suitable for demanding conditions. The operating temperature range from -25°C to +70°C allows broad application flexibility.
The sensor includes LED status indication for easy operational feedback and complies with EN 60947-5-2 standards to ensure safety and performance. Additional features such as short circuit and reverse polarity protection add to operational reliability.
This Pepperl + Fuchs sensor is widely used in manufacturing, automation, laboratory, and process industries, providing dependable sensing in equipment control, safety systems, and monitoring.
The sensor has a stainless steel housing with a PBT sensing face for enhanced durability. It supports flush mounting and is rated IP67 for dust and water resistance. The device operates reliably in temperatures as low as -25°C and as high as 70°C.
The sensor provides LED indication for easy monitoring of operational status. It follows EN 60947-5-2 standards, ensuring compliance and safety. Short circuit and reverse polarity protections prevent damage during installation and operation.
Its 2-wire output simplifies electrical connections. M18 x 1 threaded barrel design with 40 mm length fits standard industrial fixtures. Maximum switching frequency of 350 Hz supports fast response times. Manufactured in Indonesia, guaranteeing quality control standards.
Explore more from Telemecanique Sensors and Pepperl + Fuchs in this category for advanced sensor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has a maximum detection range of 5 mm.
It supports a maximum switching current of 100 mA.
The sensor has a length of 40 mm, a width of 18 mm, and a depth of 18 mm.
It operates reliably between -25°C and 70°C.
It utilizes a 2-wire output type, simplifying wiring and installation.
The sensor has an IP67 rating, indicating it is dust-tight and protected against water immersion.
The maximum supply voltage is 6 V, with a maximum DC voltage of 60 V.
It features a stainless steel housing and a PBT sensing face for enhanced durability.
The maximum switching frequency is 350 Hz.
Yes, it includes short circuit and reverse polarity protection to prevent damage during installation and operation.
It is designed according to EN 60947-5-2 standards for reliability and safety.
It supports flush mounting, making it suitable for standard industrial fixtures.
