ABB Tmax XT Molded Case Circuit Breaker 3-Pole 100A Breaking Capacity 85 kA Fixed 1SDA067746R1 XT2S 160 TMG 100A FF

Free Delivery in India | Lowest Global Shipping Charges

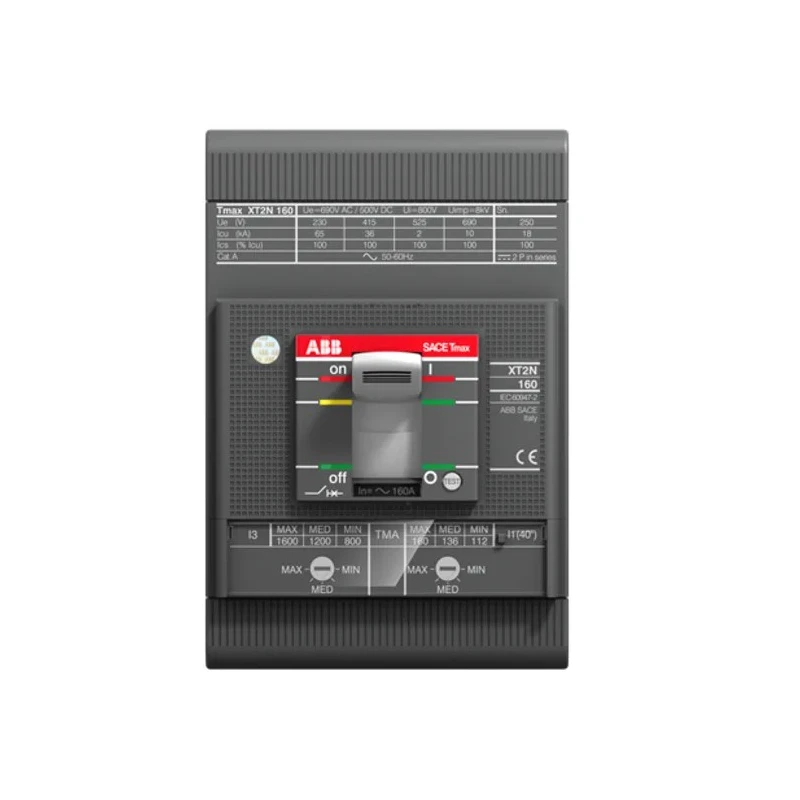

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 100A Breaking Capacity 85 kA Fixed 1SDA067746R1 XT2S 160 TMG 100A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	130mm
Model	1SDA067746R1 XT2S 160 TMG 100A FF
Depth	82.5mm
Width	90mm
Mount Type	Fixed
Current Rating	100A
Series	Tmax XT
Terminal type	Fixed
Breaking Capacity	85kA
Number of Poles	3
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Lever
Rated current (In)	100 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

Designed for industrial electrical protection with 85 kA breaking capacity.
Suitable for AC rated voltage up to 690 V and DC rated voltage up to 500 V.
Features lever type reset actuator and fixed terminal connections.
Compact dimensions with height 130 mm, width 90 mm, and depth 82.5 mm.
Complies with standards CE, IEC, and RoHS, ensuring safety and reliability.
Better World product designed for disassembly supporting sustainability.
Rated frequency supports both 50 Hz and 60 Hz applications.
Impulse withstand voltage rating of 8 kV for enhanced protection.

Product Description

ABB 1SDA067746R1 XT2S 160 TMG 100A FF Molded Case Circuit Breaker is a high-quality electrical protection device designed for industrial and commercial power distribution applications. It is a 3-pole circuit breaker with a rated current of 100 amperes. The device features a thermal magnetic (TMG) tripping mechanism that provides reliable protection against overloads and short circuits. The fixed mounting and terminal types make it suitable for stable installations in electrical panels.

This product is part of the Tmax XT range from ABB, which is recognized for durable and efficient performance in industrial electrical systems. It operates at a rated AC voltage of 690 volts and a rated DC voltage of 500 volts, supporting frequency ranges of 50 and 60 hertz. Its breaking capacity of 85 kiloamperes ensures strong fault current interruption capabilities, protecting equipment and enhancing safety.

The breaker’s compact size with a height of 130 mm, width of 90 mm, and depth of 82.5 mm makes it adaptable to various panel installations. It carries certifications including CE, IEC, and conforms to RoHS environmental standards. Furthermore, this breaker is a Better World product designed for disassembly, aligning with sustainable practices.

Thermal Magnetic tripping mechanism for precise electrical protection. Fixed terminal and mounting types for secure installation. Rated impulse withstand voltage of 8 kV ensures resistance to voltage surges. Lever reset actuator type for easy manual reset after trip.

Complies with international standards CE, IEC, and RoHS. Support for both AC and DC voltage applications enhances versatility. Ideal for use in industrial, commercial, and manufacturing electrical panels. Designed to contribute to energy savings and sustainability.

This ABB Molded Case Circuit Breaker is engineered to meet rigorous industrial requirements and provide reliable overload and short circuit protection. It is widely used in electrical automation, control panels, and power distribution systems across commercial and industrial sectors.

Explore our comprehensive catalog for diverse electrical protection solutions and other ABB industrial equipment to enhance your operational efficiency and safety.
