ABB Tmax XT Molded Case Circuit Breaker 4-Pole 100A 690V AC 500V DC Thermal Magnetic Lever 1SDA068062R1 XT3N 250 TMD 100A FF

Free Delivery in India | Lowest Global Shipping Charges

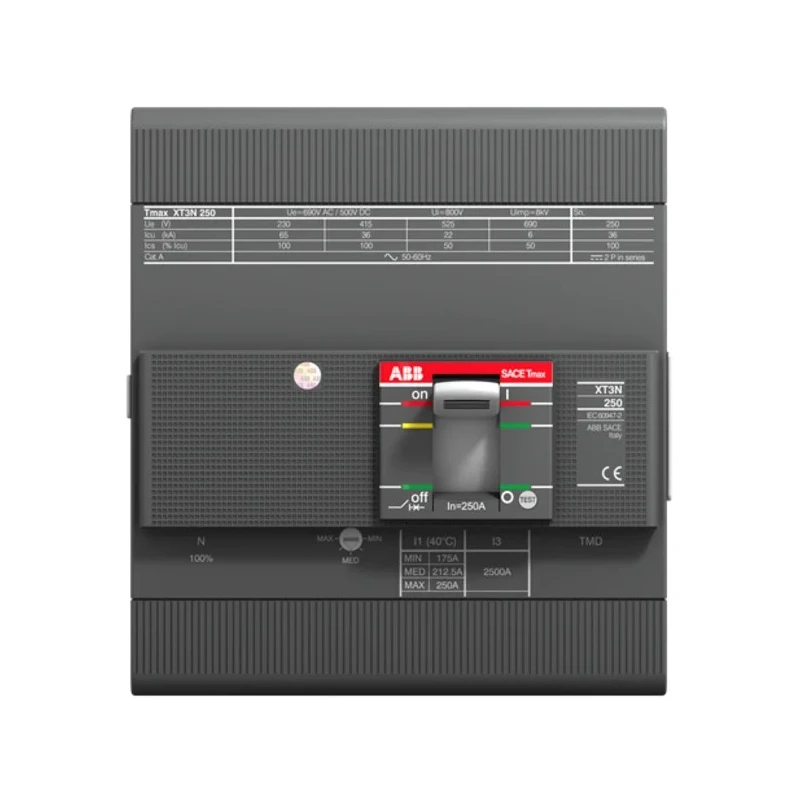

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 100A 690V AC 500V DC Thermal Magnetic Lever 1SDA068062R1 XT3N 250 TMD 100A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	150mm
Model	1SDA068062R1 XT3N 250 TMD 100A FF
Depth	70mm
Width	140mm
Mount Type	Fixed
Current Rating	100A
Series	Tmax XT
Terminal type	Fixed
Breaking Capacity	50kA
Number of Poles	4
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Lever
Rated current (In)	100 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

Designed for a current rating of 100A with a breaking capacity of 50 kA.
Supports rated AC voltage of 690V and DC voltage of 500V for versatile electrical system compatibility.
Equipped with front fixed terminals ensuring stable and secure electrical connections.
Rated impulse withstand voltage of 8 kV ensures durability against voltage surges.
Thermal magnetic tripping mechanism provides reliable protection against overload and short circuit conditions.
Compliant with CE, IEC, and RoHS standards assuring quality and environmental safety.
Manufactured in Italy under ABB’s Tmax XT series for industrial and commercial electrical protection.

Product Description

ABB 1SDA068062R1 XT3N 250 TMD 100A FF Molded Case Circuit Breaker is a robust 4-pole electrical protection device designed for industrial, commercial, and manufacturing applications. It is part of the renowned Tmax XT series providing high-performance circuit protection with a rated current of 100A and a breaking capacity of 50 kA.

This Molded Case Circuit Breaker features a thermal magnetic tripping mechanism which ensures prompt disconnection upon overload or short circuit occurrences, safeguarding electrical installations and equipment. The device supports a rated AC voltage of 690V and DC voltage of 500V, making it suitable for diverse electrical setups.

Its construction includes fixed front terminals that secure connections steadily in place and a lever-type reset actuator for ease of operation. The compact dimensions of 150 mm height, 140 mm width, and 70 mm depth facilitate convenient mounting and integration into switchboards or control panels.

Certified under CE, IEC, and RoHS standards, this product meets rigorous quality and safety requirements. Designed and manufactured in Italy, the ABB Tmax XT circuit breaker is a reliable solution for electrical protection in industrial automation, electrical distribution, HVAC systems, and manufacturing plants.

100A current rating with 50 kA breaking capacity. Thermal magnetic trip mechanism for overload and short circuit protection. Fixed mounting type with front terminals for secure installation. Rated for 690V AC and 500V DC voltage applications.

Rated impulse withstand voltage of 8 kV for surge protection. Compact size with 150 mm height, 140 mm width, and 70 mm depth. Compliant with CE, IEC, and RoHS standards. Manufactured in Italy as part of the ABB Tmax XT series.

Explore more from ABB's wide range of industrial electrical components and circuit breakers available at EnvMart for your electrical protection needs.
