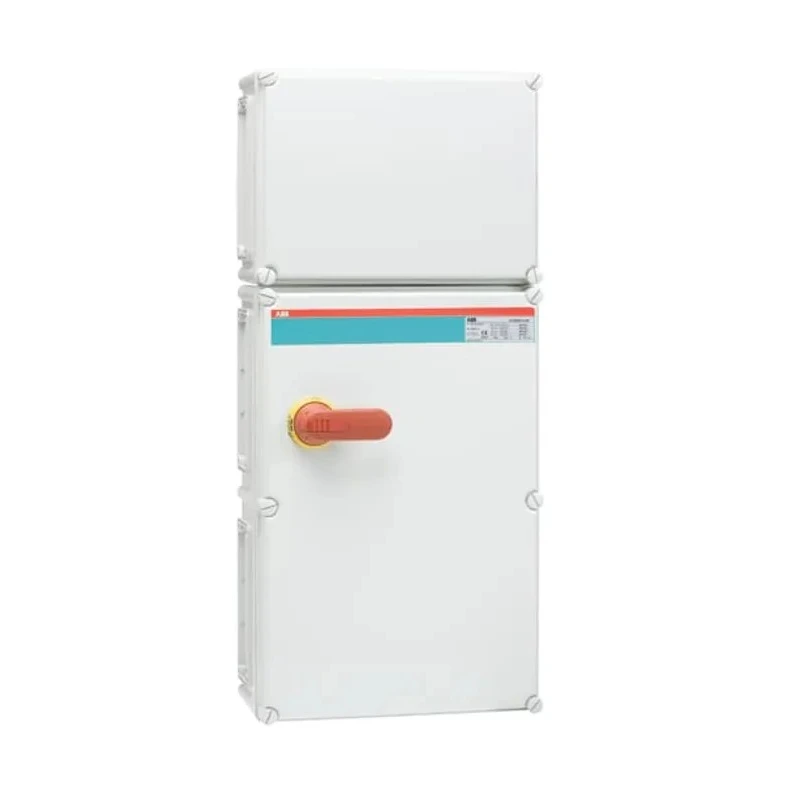

ABB 3-Pole Switch Disconnector, IP65 Enclosure, 400A Switching Current, 10W Switching Power, OT Series
Specifications
| Country of Origin | Finland |
|---|---|
| Brand | ABB |
| Length | 380mm |
| Model | IP65 |
| Depth | 180mm |
| IP Rating | IP65 |
| Width | 840mm |
| Series | OT |
| Minimum Operating Temperature | 0°C |
| Switching Current | 400A |
| Terminal type | Screw Clamp Terminal |
| Handle Colour | Red, Yellow |
| Number of Poles | 3 |
| Standards/Approvals | IEC 60947-1-3 |
| Switching AC Voltage | 1000V ac |
| Switching Power | 10W |
Key Features
- Features a rigid glass reinforced polycarbonate enclosure that is UV protected.
- Provides protection against low-pressure water jets with an IP65 rating.
- Equipped with a red and yellow padlockable handle compatible with three padlocks.
- Supports a rated operational voltage of 1000V AC and switching current of 400A.
- Includes screw clamp terminals and up to two auxiliary contacts (2NO, 1NC) for versatile control.
- Designed for easy cable entry from the top and bottom using knock-out flanges.
- The enclosure dimensions are 840mm wide, 380mm long, and 180mm deep.
- Conforms to IEC 60947-1-3 standards ensuring compliance and safety.
Product Description
ABB 1SCA022278R3120 3-Pole Switch Disconnector from the OT series is built with a rigid glass reinforced polycarbonate enclosure providing excellent UV resistance and protection against environmental elements, certified with an IP65 ingress protection rating. This make it suitable for both outdoor and indoor industrial electrical installations.
The device supports a rated operational voltage of 1000V AC and handles a switching current of 400A with a switching power of 10W, suitable for demanding electrical applications. It features screw clamp terminals for secure conductor connections and includes up to two auxiliary contacts (2NO, 1NC) enhancing control options.
The switch disconnector has a robust red and yellow handle that is padlock compatible, allowing locking with up to three padlocks for enhanced safety and operational security. Cable entries utilize knock-out flanges permitting cables to be inserted from either the top or bottom, facilitating flexible installation.
The enclosure dimensions measure 840mm width, 380mm length, and 180mm depth, providing ample space while maintaining a compact form factor. The cover is interlocked for additional safety but can be defeated when necessary. PE terminals are included within the assembly.
This product complies with IEC 60947-1-3 standards and does not bear any hazardous area certification. It is manufactured in Finland with high quality and reliability standards. Rigid glass reinforced polycarbonate enclosure with UV protection.
IP65 rated for protection against low-pressure water jets. Padlock compatible handle for three padlocks in red and yellow colors. Supports 1000V AC operational voltage and 400A switching current. Screw clamp terminal connection provides secure wiring.
Includes auxiliary contacts (2NO, 1NC) for enhanced control. Knock-out type cable entries from top and bottom for flexible installation. Interlocked cover with defeatable interlock enhances operational safety. Conforms to IEC 60947-1-3 for quality and safety compliance.
Ideal for industrial automation, electrical distribution, and manufacturing use cases. Explore more products in the Switch Disconnectors category on EnvMart for reliable electrical isolation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a rated operational voltage of 1000V AC.
This switch disconnector can handle a maximum switching current of 400A.
It features a rigid glass reinforced polycarbonate enclosure that is UV protected and rated IP65.
The enclosure dimensions are 840mm wide, 380mm long, and 180mm deep.
This model has 3 poles.
It includes screw clamp terminals for secure conductor connections.
It features a padlockable handle compatible with up to three padlocks and an interlocked cover that can be defeated when necessary.
This switch disconnector includes up to two auxiliary contacts, configured as 2NO (Normally Open) and 1NC (Normally Closed).
It conforms to IEC 60947-1-3 standards, ensuring compliance and safety.
The minimum operating temperature is 0°C.
Cable entries utilize knock-out flanges, allowing for flexible installation from the top or bottom.
It is manufactured in Finland.
