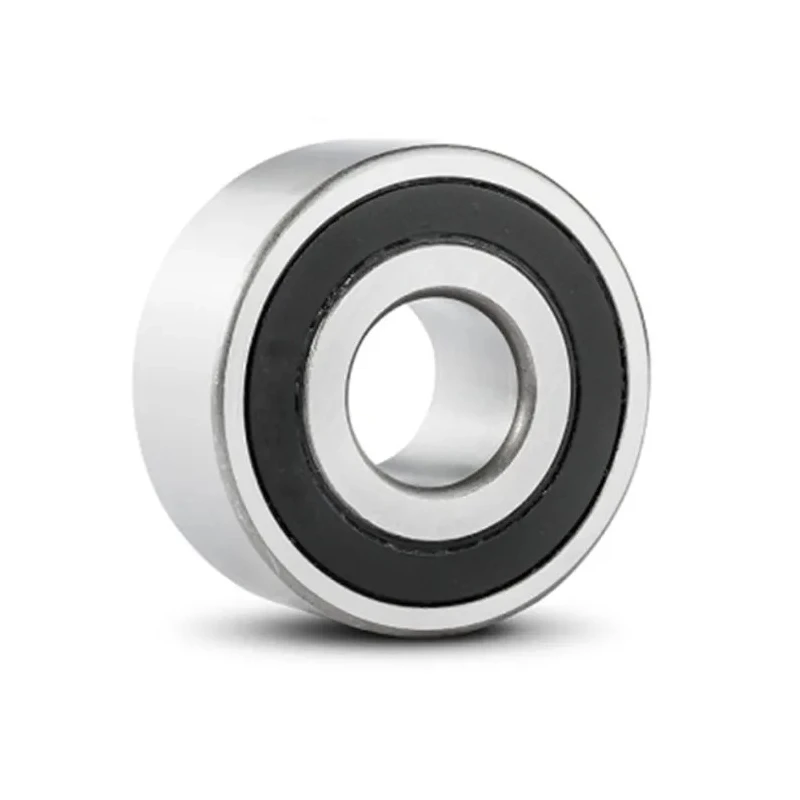

RS PRO 2 Row Double Row Angular Contact Ball Bearing 20 mm Inside Diameter, 47 mm Outside Diameter, 20 mm 3204-B-2RSR-TV
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 3204-B-2RSR-TV |
| Series | 2 Light |
| Outside diameter | 47mm |
| Inside Diameter | 20mm |
| Number of Rows | 2 |
| Ball Material | Stainless Steel |
| Limiting Speed | 10000rpm |
| Internal Clearance | CN |
| End Type | Sealed |
| Bore Type | Parallel |
| Bearing Type | Double Row Angular Contact Ball |
| Cage Material | Steel |
| Race Width | 20mm |
| Static Load Rating | 12.1kN |
| Dynamic Load Rating | 18.1kN |
| Contact Angle | 40° |
Key Features
- This bearing features two rows providing enhanced load capacity and stability.
- Designed with a 40° contact angle to support radial and axial loads in both directions.
- Equipped with sealed ends and a steel cage for protection against contamination and preservation of lubrication.
- The balls are made of stainless steel, ensuring corrosion resistance and long service life.
- Ideal for high speed applications up to 10000 rpm with high running accuracy.
- Its parallel bore type supports easy installation and optimal fitment.
- Low maintenance due to the double rubber seals and CN internal clearance.
- Suitable for industrial, manufacturing, automotive, agricultural, and materials handling applications.
Product Description
RS PRO 3204-B-2RSR-TV Double Row Angular Contact Ball Bearing is engineered to provide exceptional running accuracy and high load capacity, suitable for both radial and axial loads. Featuring a 20 mm inside diameter, 47 mm outside diameter, and 20 mm race width, this bearing is designed with two rows and a 40° contact angle on each row, ensuring superior rigidity and load distribution.
The bearing is constructed with a steel cage and stainless steel balls, enhancing its durability and corrosion resistance. The end type is sealed, which protects the bearing from contamination while retaining vital lubrication, contributing to longer maintenance intervals and quieter operation. The bore type is parallel for straightforward installation.
With a limiting speed of 10000 rpm, this bearing supports high-speed industrial and mechanical applications involving agriculture, automotive, manufacturing, and materials handling sectors. The CN internal clearance classification ensures optimal performance under dynamic operating conditions.
This model is part of the RS PRO 2 Light series, known for quality and reliability. It eliminates the need to fit paired bearings by combining dual angled contact rows in one unit, simplifying installation and reducing complexity.
This bearing supports radial and axial load requirements in both directions thanks to its double row angular contact design. The sealed construction prevents ingress of contaminants, preserving lubrication and extending service life.
Designed for high-speed applications with a limiting speed of 10000 rpm. Manufactured with stainless steel balls for enhanced corrosion resistance. Steel cage construction ensures structural integrity and durability. Parallel bore allows for precise fit in machinery and equipment.
Meets industrial demands in automotive, agricultural, and manufacturing applications. Low internal clearance (CN) contributes to bearing rigidity and performance. Explore a broad range of bearings and industrial rotary components at EnvMart, your trusted source for high-quality mechanical solutions.
Explore more products in our Ball Bearings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inside diameter of this model is 20 mm.
It is designed to support both radial and axial loads in both directions due to its double row angular contact design.
The outside diameter is 47 mm.
The balls in this bearing are made of stainless steel, which enhances corrosion resistance.
The race width of this bearing is 20 mm.
This model has a CN internal clearance classification, which contributes to its performance under dynamic conditions.
The contact angle for this bearing is 40°, which aids in load distribution and stability.
It features a sealed end type, which protects against contamination and retains lubrication.
The cage is made of steel, ensuring structural integrity and durability.
It is suitable for various applications including automotive, agricultural, manufacturing, and materials handling.
