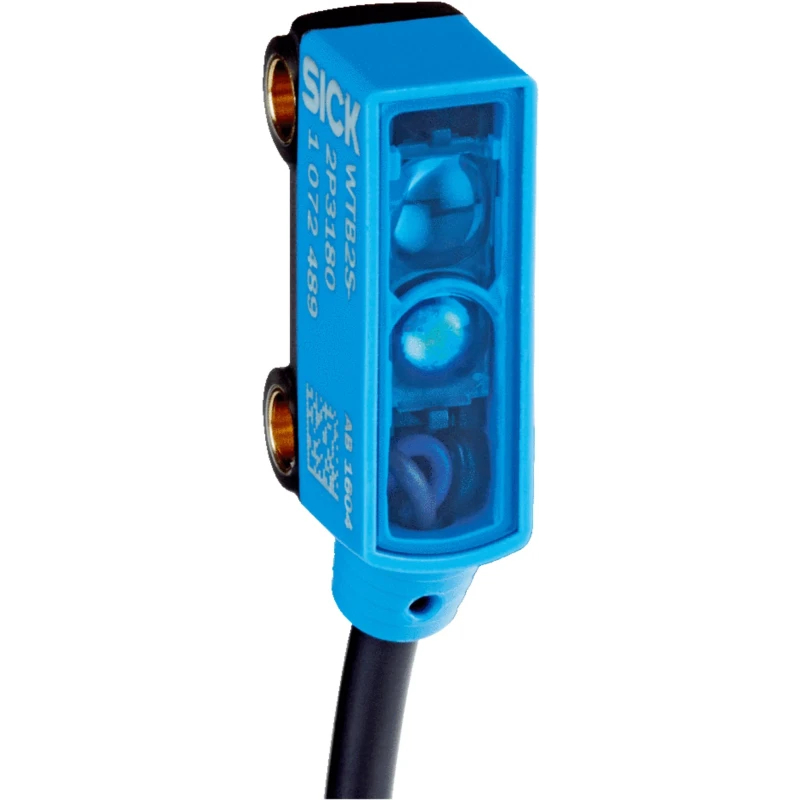

SICK Background Suppression Photoelectric Sensor, Block Sensor, 4 mm to 40 mm Detection Range, NPN Output, IP67 WTB2S-2N1380
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 400μs |
| Light Source | LED |
| Detection range | 4 mm → 40 mm |
| Model | WTB2S-2N1380 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Plastic |
| Output type | NPN |
| Series | W2S-2 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| Terminal type | 3-Wire |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | CE Certified, UL Certified |
| Sensor Style | Block |
| Machine design flexibility | the ultra-compact sensors offer above-average sensing distances and provide space-saving installation |
| Remote setup | sensors installed in confined spaces can be set and monitored remotely via IO-Link |
| High operational reliability | ultrablack objects are detected with a degree of reflection of 1% |
| Quick and easy commissioning | the photoelectric retro-reflective sensor with autocollimation provides a clearly visible light spot for high process reliability |
| Universal application options | wide range of models enclosed in a rugged housing |
Key Features
- Block sensor style for reliable background suppression detection.
- Equipped with a 3-wire terminal and LED light source.
- Operates at a maximum DC voltage of 30V and maximum current of 50mA.
- Highly durable plastic housing with screw mount type.
- Wide operating temperature range from -25°C to 50°C.
- Features CE and UL certifications ensuring quality and safety.
- Response time of 400 microseconds supporting fast detection.
- Designed for industrial uses including pharmaceutical, logistics, and assembly automation.
Product Description
SICK WTB2S-2N1380 Background Suppression Photoelectric Sensor is a high-performance block sensor featuring a detection range from 4 mm to 40 mm and IP67 ingress protection. It uses an LED light source with NPN output for accurate detection in industrial automation environments.
The sensor is enclosed in a rugged plastic housing with a screw mount type, optimized for secure installation. It operates at a maximum DC voltage of 30V with a maximum current rating of 50mA and supports a wide operating temperature range of -25°C to 50°C, making it suitable for various industrial environments including pharmaceutical manufacturing, logistics handling, and automated assembly processes.
Equipped with advanced background suppression technology, the sensor reliably detects objects with minimal reflection, including ultrablack materials with a reflection degree of 1%. Its PinPoint 2.0 LED technology ensures extended sensing distances and high operating reserves.
Additional features include quick and easy commissioning with a visible light spot, remote setup capabilities via IO-Link, and high operational reliability. The sensor ensures enhanced machine design flexibility with its ultra-compact form factor, enabling space-saving installation without the need for reflectors or through-beam systems.
Block sensor style with robust background suppression capability. NPN output with 3-wire terminal interface. Maximum DC voltage: 30V; current: 50mA. IP67 rating providing dust-tight and water protection. Plastic housing with screw mount for reliable fitting.
Operating temperature range: -25°C to 50°C. Fast response time of 400 μs for high-speed detection. Certified to CE and UL standards for safety compliance. Remote setup and monitoring enabled via IO-Link. Application range includes pharmaceutical, logistics, and manufacturing industries.
Country of origin: Germany. Discover more sensors and automation solutions to enhance your industrial efficiency with EnvMart.
