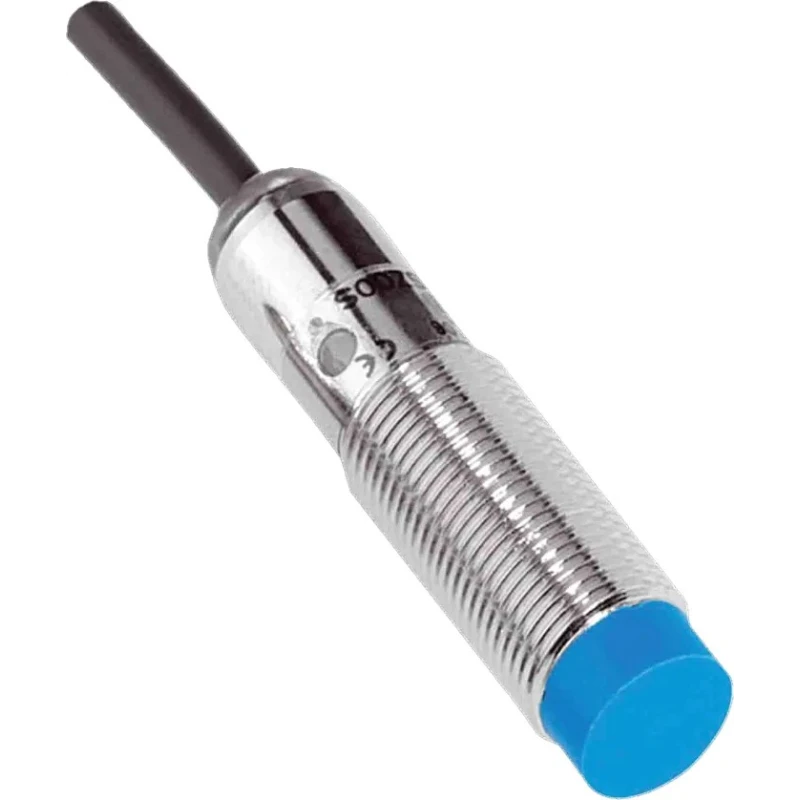

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1, 30 V DC, 200 mA Output, IP67 IME12-08NPSZW6K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 44mm |
| Model | IME12-08NPSZW6K |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME12-08NPSZW6K |
| Maximum Operating Temperature | 75°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 8mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- The sensor features M12 x 1 thread size with a length of 44 mm.
- It operates on a maximum supply voltage of 30 V DC with PNP output.
- The housing is made of durable metal and rated IP67 for dust and water protection.
- Suitable for temperatures from -25°C to +75°C for versatile industrial applications.
- This non-flush mount sensor has a cable terminal type for easy installation.
- Max switching frequency is 2 kHz ensuring rapid response times.
- The sensor is unshielded and detects metal materials precisely.
- Designed and manufactured in Hungary, conforming to EN 60947-5-2 and EN 60529 standards.
Product Description
The SICK IME12-08NPSZW6K threaded barrel Inductive Proximity Sensor is engineered for precise metal detection with an 8 mm sensing range. Operating at 30 V DC and capable of switching currents up to 200 mA with a PNP output type, this sensor ensures reliable performance in automation and control systems.
The sensor's robust metal housing provides protection against harsh environments, supported by an IP67 enclosure rating that offers full dust protection and resistance to water jets. Its compact 44 mm length and M12 x 1 threaded design facilitate straightforward installation in tight spaces.
Operating temperature ranges between -25°C and +75°C make it suitable for diverse industrial applications including presence detection in automotive assembly, position monitoring of components, and part infeed/outfeed automation. The sensor's non-flush mount and cable terminal add to ease of integration.
Equipped with an unshielded design and a maximum switching frequency of 2 kHz, it delivers high positioning accuracy and rapid switching behaviors essential for efficient machine operation. Compliance with EN 60947-5-2 and EN 60529 standards assures quality and safety.
M12 x 1 threaded barrel design. 8 mm maximum sensing range for metal detection. 30 V DC maximum supply voltage with PNP output. IP67 rated metal housing for durable protection. Temperature range from -25°C to +75°C. Maximum switching frequency of 2 kHz for fast response.
Unshielded sensor type, suitable for a variety of metal materials. Non-flush mount type with cable terminal connection. Manufactured in Hungary following international standards.
This sensor is widely used in industrial automation, manufacturing, automotive body detection, material handling, and position monitoring applications. Its reliable performance and rugged design enhance machine availability and reduce downtime across multiple sectors.
Explore further automation and sensor products in the Electronics & Electricals category on EnvMart for complete industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sensing range of this model is 8 mm for metal detection.
It operates within a temperature range of -25°C to +75°C.
This sensor features a PNP output type.
The housing is rated IP67, providing full dust protection and resistance to water jets.
The maximum supply voltage is 30 V DC.
The maximum switching frequency is 2 kHz, allowing for rapid response times.
It is designed to detect metal materials.
This model has a length of 44 mm and features an M12 x 1 thread size.
This sensor is a non-flush mount type, designed for easy installation.
It conforms to EN 60947-5-2 and EN 60529 standards.
The body style of this sensor is a threaded barrel.
It features a cable terminal type for connection.
