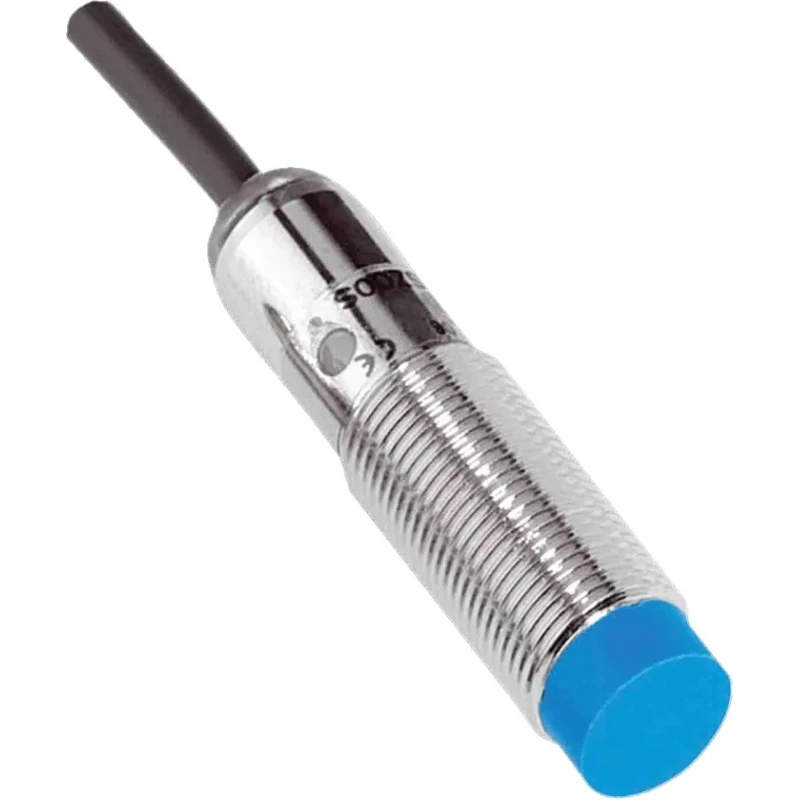

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 30 V dc 200mA IME12-08NNSZW2K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 44mm |
| Model | IME12-08NNSZW2K |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME12-08NNSZW2K |
| Maximum Operating Temperature | 75°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 8mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Robust metal housing with IP67 protection ensures durability in harsh industrial environments.
- Non-flush mount type allows easy installation and flexible application.
- NPN output type with cable terminal for reliable electrical connection.
- Wide operating temperature range from -25°C to 75°C supports versatile applications.
- Maximum switching frequency of 2 kHz allows fast and precise sensing.
- Unshielded sensor design suitable for detecting metal objects within 8 mm range.
- Nickel-plated brass housing and plastic sensing face for enhanced shock and vibration resistance.
- Complies with EN 60529 and EN 60947-5-2 standards for safety and performance.
Product Description
The SICK IME12-08NNSZW2K is a high-precision threaded barrel Inductive Proximity Sensor designed for industrial automation and control applications. Featuring an M12 x 1 threaded metal body with a 44 mm length and 12 mm width, this sensor provides reliable detection of metal objects within an 8 mm range.
Operating at a maximum supply voltage of 30 V dc and a switching current of 200 mA with an NPN output, the sensor supports fast switching frequencies up to 2 kHz. Its robust nickel-plated brass housing and plastic sensing face are fully encapsulated to enhance shock and vibration resistance. The sensor meets IP67 ingress protection, making it suitable for use in harsh environments requiring dust-tight and waterproof performance.
With a wide operating temperature range from -25 °C to +75 °C and compliance with EN 60529 and EN 60947-5-2 standards, the IME12 series sensors ensure precise and repeatable switching behavior, which enhances machine reliability and uptime.
Applications include presence detection for car body parts, position monitoring of tool carriers, detection of metal components in manufacturing lines, and monitoring end positions in automated machinery. Its flexible mounting options and electrical configurations (DC 3-/4-wire, DC 2-wire) facilitate diverse use cases in automotive, material handling, packaging, and automation sectors.
Robust metal housing with IP67 protection ensures durability in harsh industrial environments. Non-flush mount type allows easy installation and flexible application. NPN output type with cable terminal for reliable electrical connection.
Wide operating temperature range from -25°C to 75°C supports versatile applications. Maximum switching frequency of 2 kHz allows fast and precise sensing. Unshielded sensor design suitable for detecting metal objects within 8 mm range.
Nickel-plated brass housing and plastic sensing face for enhanced shock and vibration resistance. Complies with EN 60529 and EN 60947-5-2 standards for safety and performance. Ideal for presence detection, positioning, and monitoring in automotive, manufacturing, and automation industries.
Choose the SICK IME12-08NNSZW2K for reliable and accurate inductive sensing in demanding industrial environments. Browse EnvMart's broad catalog of sensors for additional automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of the SICK IME12-08NNSZW2K is 8 mm for metal objects.
It operates within a temperature range of -25 °C to +75 °C.
The maximum switching frequency is 2 kHz, allowing for fast and precise sensing.
This model has an NPN output type with a cable terminal for reliable electrical connection.
The sensor has an IP67 rating, ensuring it is dust-tight and can withstand water immersion.
The sensor has a length of 44 mm and a width of 12 mm.
It is designed to detect metal objects.
The maximum supply voltage is 30 V dc.
It complies with EN 60529 and EN 60947-5-2 standards for safety and performance.
This model features a non-flush mount type, allowing for easy installation and flexible application.
It supports DC 3-/4-wire and DC 2-wire electrical configurations.
The country of origin for this sensor is Hungary.
