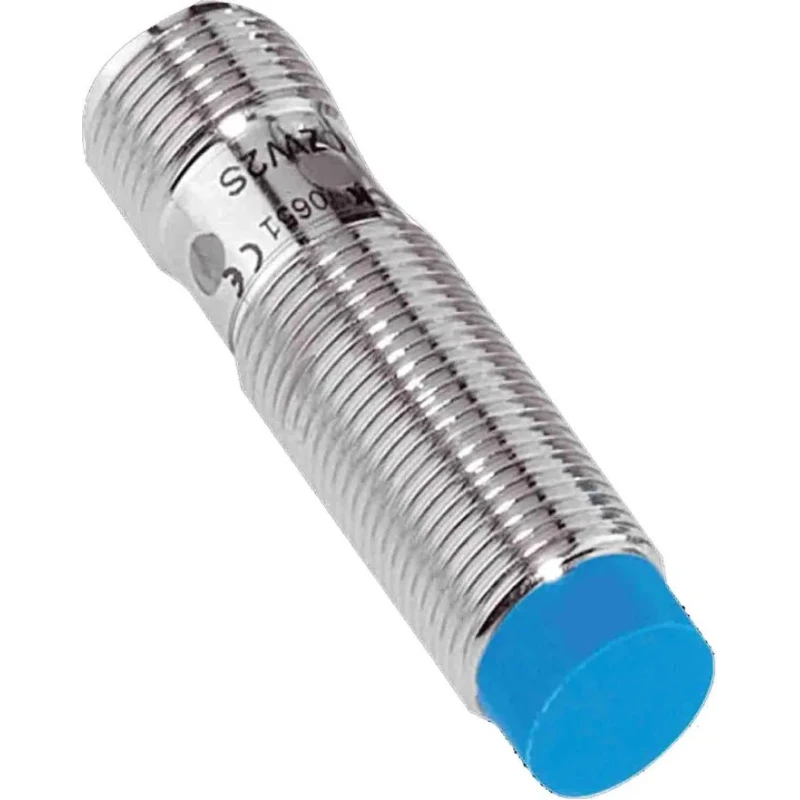

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 NPN 30 V DC 200 mA IME12-08NNOZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 46mm |
| Model | IME12-08NNOZC0K |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME12 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 8mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- The sensor provides unshielded detection up to 8 mm for metal objects.
- Designed for non-flush mounting with a threaded barrel body style.
- Encapsulated with hotmelt molding for high vibration and shock resistance.
- Operates in temperature range from -25°C to 75°C with an IP67 enclosure rating.
- Offers a switching frequency up to 2 kHz with NPN output configuration.
- The sensor is 46 mm in length and 12 mm in width with a 4-pin terminal type.
- It enables digital adjustment and precise switching behavior via integrated ASIC technology.
- Suitable for industrial automation applications including presence detection and position monitoring.
Product Description
SICK IME12-08NNOZC0K is a threaded barrel Inductive Proximity Sensor featuring a metal housing with M12 x 1 threading and a sensing distance of 8 mm. It operates at a maximum supply voltage of 30 V DC with a switching current of 200 mA and an NPN output type. The sensor is designed for non-flush mounting applications and has a body length of 46 mm and width of 12 mm.
Constructed with a nickel-plated brass housing and plastic sensing face, the sensor is completely encapsulated with hotmelt molding, enhancing its shock and vibration resistance for reliable industrial performance. It complies with IP67 enclosure standards, suitable for harsh environmental conditions, and operates efficiently in temperature ranges from -25°C up to 75°C.
The IME12 series sensors integrate an ASIC chip that allows digital adjustment after manufacturing, ensuring high repeatability and precision in switching points over numerous production runs. This leads to enhanced machine availability and cost efficiency due to the sensor's ruggedness and low purchase cost.
Typical applications include presence detection of car body parts, positioning of dashboard components, monitoring dancer positions in film tension systems, end position detection in automated handling, and speed monitoring in escalators. This sensor is widely used in industrial automation, manufacturing, and process control environments for accurate non-contact detection of metal materials.
The sensor offers extended sensing ranges from 1.5 mm to 38 mm within the IME series. It features an IP67 enclosure rating, suitable for wet and dusty conditions. Its switching frequency capability is up to 2 kHz for fast response requirements.
The sensor is unshielded, making it suitable for applications demanding wider sensing fields. Manufactured in Hungary, conforming to EN 60529 and EN 60947-5-2 standards for safety and quality. The four-pin terminal supports DC 3-/4-wire and DC 2-wire electrical configurations.
Discover the full SICK IME12 sensor portfolio for versatile and precise inductive sensing solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this inductive proximity sensor is 8 mm for metal objects.
This model operates within a temperature range of -25 °C to +75 °C.
It features an NPN output type.
The sensor can achieve a maximum switching frequency of 2 kHz.
The sensor has a length of 46 mm and a width of 12 mm.
It has an IP67 enclosure rating, making it suitable for wet and dusty conditions.
This model is designed for non-flush mounting applications.
The maximum supply voltage is 30 V DC.
This inductive proximity sensor is designed to detect metal materials.
It supports DC 3-/4-wire and DC 2-wire electrical configurations.
It conforms to EN 60529 and EN 60947-5-2 standards for safety and quality.
This sensor is manufactured in Hungary.
