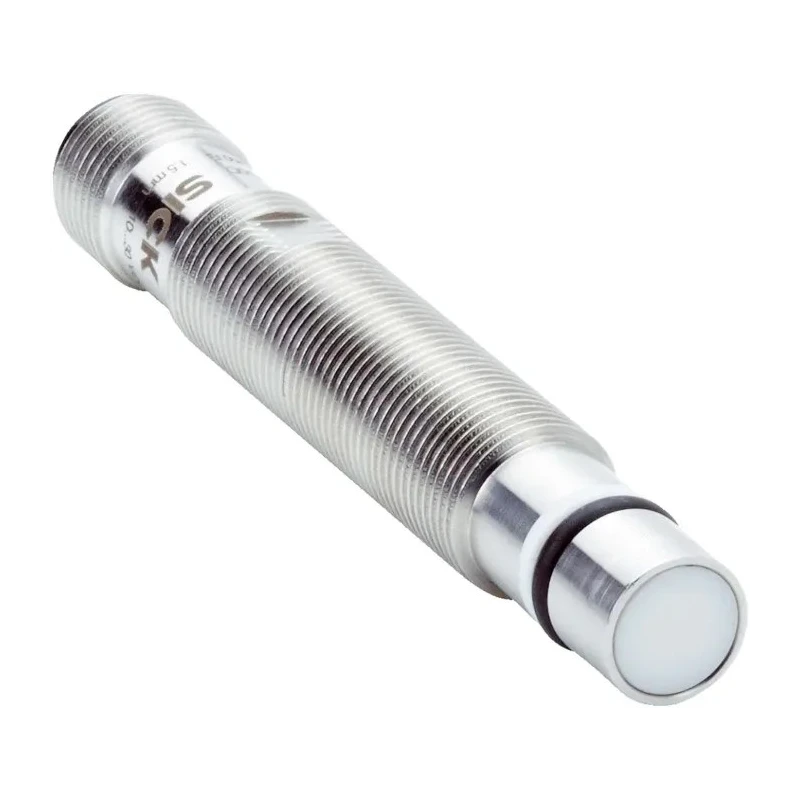

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30 V dc 200mA IMP12-1B5PSVC0D

SICK IMP12-1B5PSVC0D is a high-performance threaded barrel Inductive Proximity Sensor with M12 x 1 thread size. This sensor features a robust stainless steel housing with an active surface made from stable high-performance ceramic, making it pressure resistant up to 500 bar. It offers reliable end position detection in hydraulic cylinders and pneumatic applications.

Operating at 30 V dc with a maximum switching current of 200 mA, this sensor provides a maximum detection range of 1.5 mm. The PNP output configuration and shielded sensor design ensure dependable operation even in demanding industrial environments. It supports fast switching frequencies of up to 600 Hz, facilitating precise real-time monitoring.

Designed for flush mount installation, the IMP12 series sensors from SICK cover sizes M5, M8, M12, and M14 with extended sensing ranges from 1 mm to 3 mm. The sensor maintains operational integrity in temperatures ranging from -25 °C to +80 °C and features an IP68 enclosure rating offering superior protection against dust and water ingress.

This sensor benefits applications such as end position detection of piston strokes in hydraulic cylinders, controlled piston deceleration, and collision prevention extending piston service life. Its durable design supports an expected service life of up to one million pressure cycles, reducing maintenance costs and enhancing system uptime.

With compliance to EN 60947-5-2 standards, it assures compatibility and reliability across automation control systems. The sensor is manufactured in China and forms part of SICK's IMP12 series known for compact size and high load capability.

Constructed with stainless steel housing for high resilience and corrosion resistance. Designed for flush mount installation with M12 x 1 thread size. Operates at a maximum supply voltage of 30 V dc with a switching current of 200 mA.

Provides precise detection up to a maximum sensing distance of 1.5 mm. Features PNP output type and shielded design for reliable operation in industrial environments. Rated IP68 for protection against dust and water ingress, suitable for harsh conditions.

Supports switching frequency up to 600 Hz enabling fast sensor response. Functionally stable across a temperature range of -25 °C to 80 °C. Ideal for end position detection in hydraulic cylinders and pneumatic systems. Offers pressure resistance up to 500 bar with high-performance ceramic active surface.

Explore this product in the Sensors category on EnvMart for industrial automation, manufacturing, and control applications.
