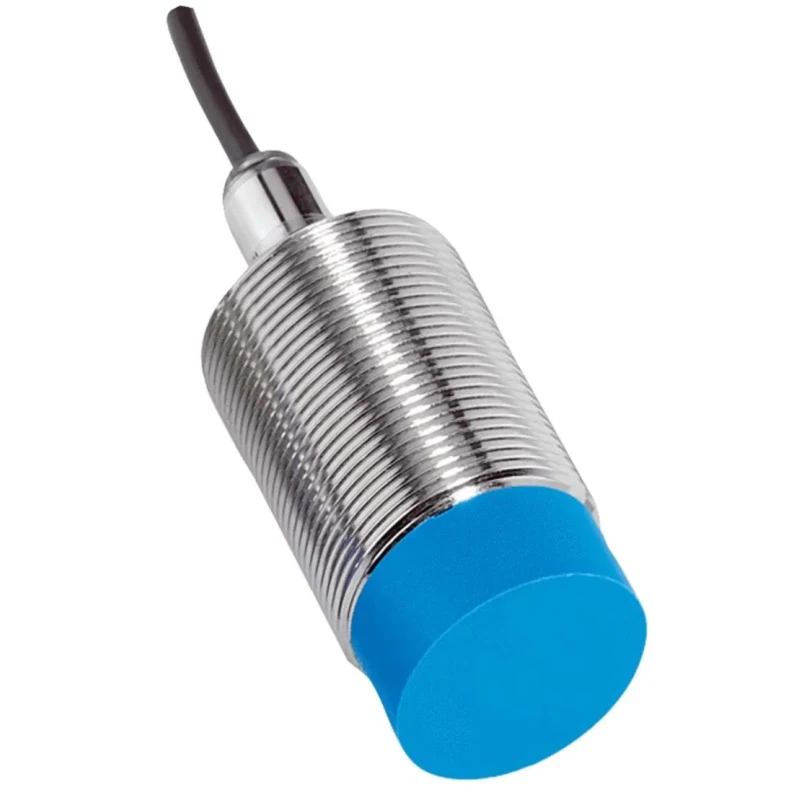

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 30 V dc 200mA IME30-20NPSZW2S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 70mm |
| Model | IME30-20NPSZW2S |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME30 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M30 x 1.5 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 20mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Features a rugged metal housing with IP67 enclosure rating for durability.
- Operates reliably within a temperature range of -25°C to 75°C.
- Suitable for non-flush mounting with cable terminal connection.
- Supports maximum switching frequency of 500 Hz and maximum switching current of 200 mA.
- Compatible with DC 3-/4-wire and DC 2-wire electrical configurations.
- Offers extended sensing ranges from 1.5 mm to 38 mm in IME30 series.
- Nickel-plated brass housing ensures high shock and vibration resistance.
- Ideal for industrial use in presence detection, positioning, and monitoring applications.
Product Description
The SICK IME30-20NPSZW2S is a high-precision Threaded Barrel Inductive Proximity Sensor designed with a metal housing measuring 70 mm length and 30 mm width with M30 x 1.5 thread size. It operates at a maximum supply voltage of 30 V dc with PNP output type and supports switching currents up to 200 mA. The sensor is non-flush mountable with cable connection terminals and features an IP67 rating for dust and water ingress protection.
Designed to detect metal objects within a maximum sensing range of 20 mm, it supports a switching frequency up to 500 Hz, making it suitable for fast industrial automation tasks. Its operating temperature range is from -25°C to 75°C, ensuring performance under various environmental conditions.
This sensor belongs to the IME30 series known for nickel-plated brass housing and plastic sensing face construction, providing high mechanical stability and resistance to shock and vibrations. It integrates an ASIC chip enabling digital adjustment and repeatability of switching points for consistent performance across production runs.
Industrial applications include presence detection for car body parts, positioning tool carriers, monitoring film tension mechanisms, end position detections in automated machinery, and many other manufacturing, laboratory, and automation uses. The high positioning accuracy and rugged design ensure minimal downtime and cost-efficient operation.
Rugged metal construction with IP67 rating ensures durable operation. Wide temperature range supports diverse industrial environments. Supports multiple electrical configurations for flexible integration. High switching frequency enables fast, reliable sensing.
Extended sensing ranges increase installation versatility. Nickel-plated brass housing improves mechanical resilience. Digital adjustment via integrated ASIC ensures precision. Suitable for automated production lines, automotive, packaging, and material handling.
This product is manufactured in Hungary and complies with EN 60529 and EN 60947-5-2 standards, guaranteeing quality and safety. The SICK IME30-20NPSZW2S Inductive Proximity Sensor is a preferred choice for diverse automation and control gear applications.
Explore more high-quality sensors and automation components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 20 mm.
It operates within a temperature range of -25°C to 75°C.
This model supports a maximum switching frequency of 500 Hz.
It is compatible with DC 3-/4-wire and DC 2-wire electrical configurations.
The sensor has an IP67 enclosure rating, providing protection against dust and water ingress.
The maximum switching current for this sensor is 200 mA.
This sensor is designed to detect metal objects.
The sensor measures 70 mm in length and 30 mm in width.
The IME30-20NPSZW2S is designed for non-flush mounting with cable terminal connection.
It features a metal housing, specifically nickel-plated brass, which enhances its mechanical stability.
It complies with EN 60529 and EN 60947-5-2 standards.
The thread size of this sensor is M30 x 1.5.
