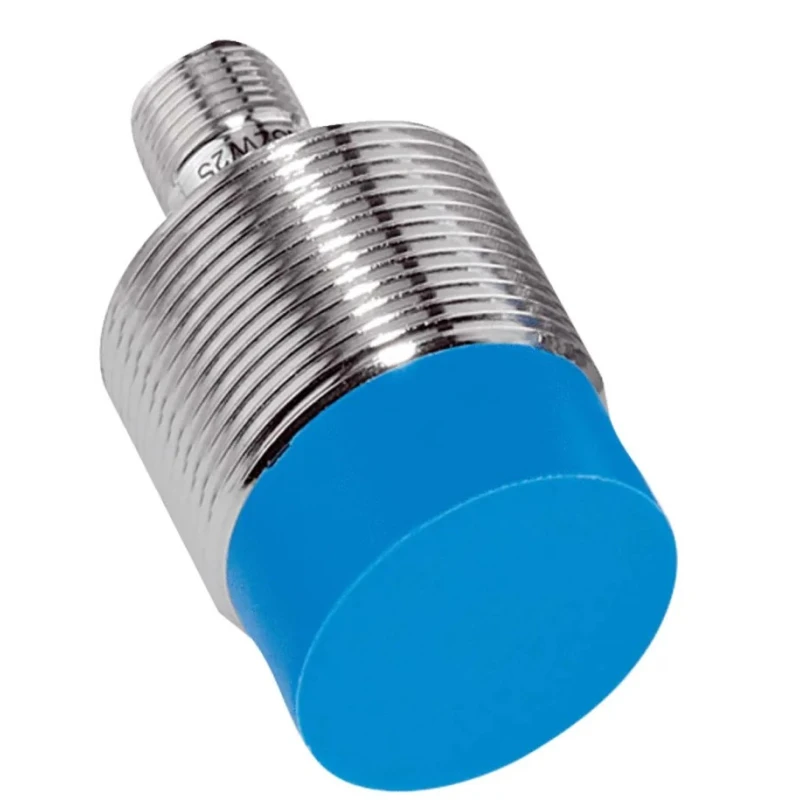

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5, PNP Output, 30 V DC, 15 mm Sensing Distance IME30-15NPSZC0K

Free Delivery in India | Lowest Global Shipping Charges

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5, PNP Output, 30 V DC, 15 mm Sensing Distance IME30-15NPSZC0K

Name: SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5, PNP Output, 30 V DC, 15 mm Sensing Distance IME30-15NPSZC0K
Brand: SICK
SKU: 402685
Price: 70.74 USD
Availability: InStock



Category Inductive Proximity Sensor Brand SICK Condition New

Specifications

Country of Origin	Hungary
Brand	SICK
Temperature range	- 25 °C to +75 °C
Length	52mm
Model	IME30-15NPSZC0K
IP Rating	IP67
Width	30mm
Mount Type	Non-Flush
Housing Material	Metal
Types	M8 to M30
Output type	PNP
Series	IME30
Maximum Operating Temperature	75°C
Thread Size	M30 x 1.5
Enclosure Rating	IP 67
Minimum Operating Temperature	-25°C
Switching Current	200mA
Terminal type	4-Pin
Body Style	Threaded Barrel
Maximum dc Voltage	30V dc
Shielding	Unshielded
Maximum Switching Frequency	500Hz
Standards/Approvals	EN 60529, EN 60947-5-2
Maximum Supply Voltage	30V
Materials Detected	Metal
Maximum Detection	15mm
Extended sensing ranges	1.5 mm to 38 mm
Electrical configuration	DC 3-/4-wire, DC 2-wire

Key Features

Thread size M30 x 1.5 with 52 mm length for versatile mounting.
PNP output type capable of switching up to 200 mA current.
Robust metal housing with IP67 protection rating for harsh environments.
Operational temperature range from - 25°C to +75°C ensuring reliable performance.
Unshielded design with a 4-pin terminal configuration.
High switching frequency of 500 Hz enables quick detection cycles.
Suitable for non-flush mounting applications.
Detects metal materials accurately within a 15 mm sensing distance.

Product Description

The SICK IME30-15NPSZC0K is a high-precision threaded barrel Inductive Proximity Sensor designed for industrial automation and control applications. It features a metal housing with a thread size of M30 x 1.5 and an overall length of 52 mm, suitable for installation in diverse locations requiring non-flush mounting.

Operating at a maximum supply voltage of 30 V dc with a PNP output and capable of switching currents up to 200 mA, this sensor offers reliable switching behavior with a maximum switching frequency of 500 Hz. The sensor detects metallic objects within a 15 mm range accurately, making it ideal for presence detection, positioning, and end-of-travel monitoring in manufacturing and assembly lines.

Its nickel-plated brass housing and plastic sensing face combine to provide durability and resistance against mechanical shocks and vibrations. The IP67 enclosure rating ensures robust protection against water and dust ingress, enabling use in harsh industrial environments with temperatures from - 25°C to +75°C.

Thread size M30 x 1.5 with 52 mm sensor body length. PNP output type supporting 200 mA switching current. IP67 rated metal housing suitable for demanding environments. Working temperature range from - 25°C up to +75°C. Unshielded design, 4-pin terminal with non-flush mount style.

Switching frequency of 500 Hz for fast response. Extended sensing range options from 1.5 mm to 38 mm within IME series.

This inductive sensor is manufactured in Hungary and complies with EN 60529 and EN 60947-5-2 safety standards, ensuring high reliability and safety in industrial control systems. Common applications include metal part presence detection, tool carrier positioning, end position sensing, and monitoring of material flow in automated processes.

Choose the SICK IME30-15NPSZC0K for rugged, high-accuracy metal detection optimized for long service life and minimal downtime in industrial automation, manufacturing, and process control environments.
