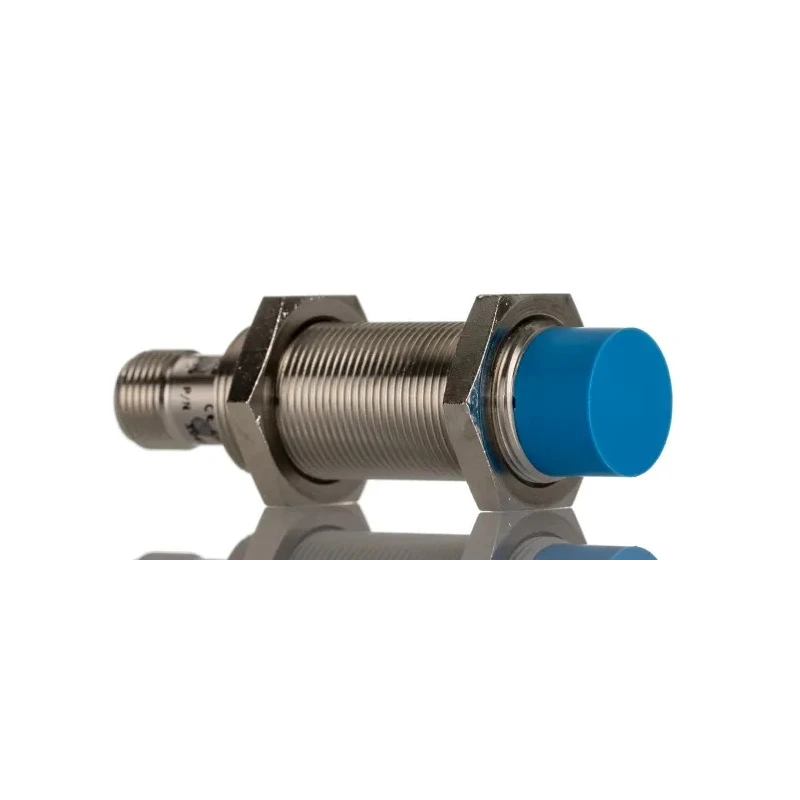

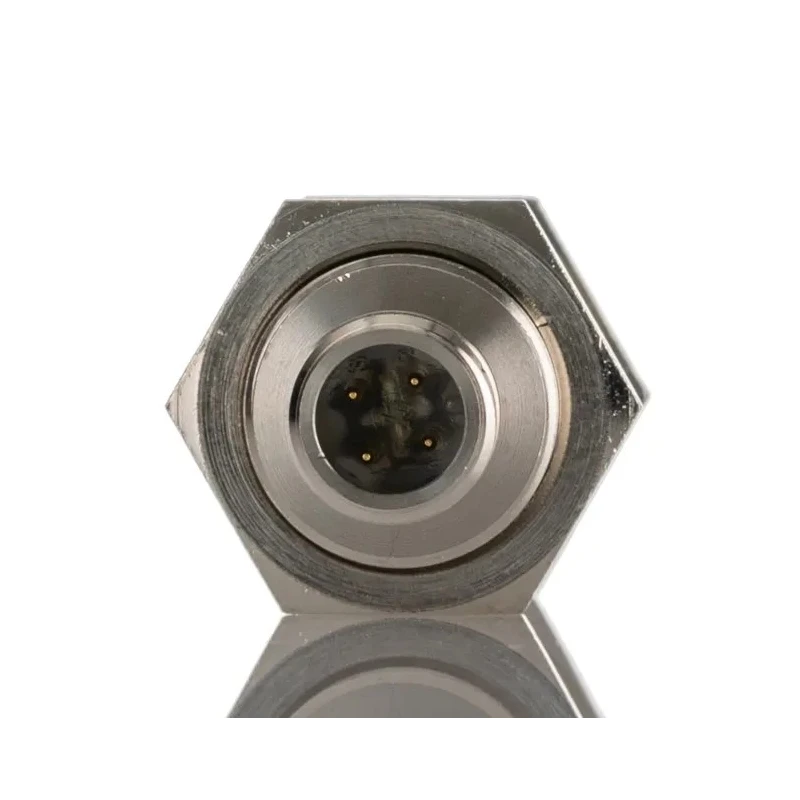

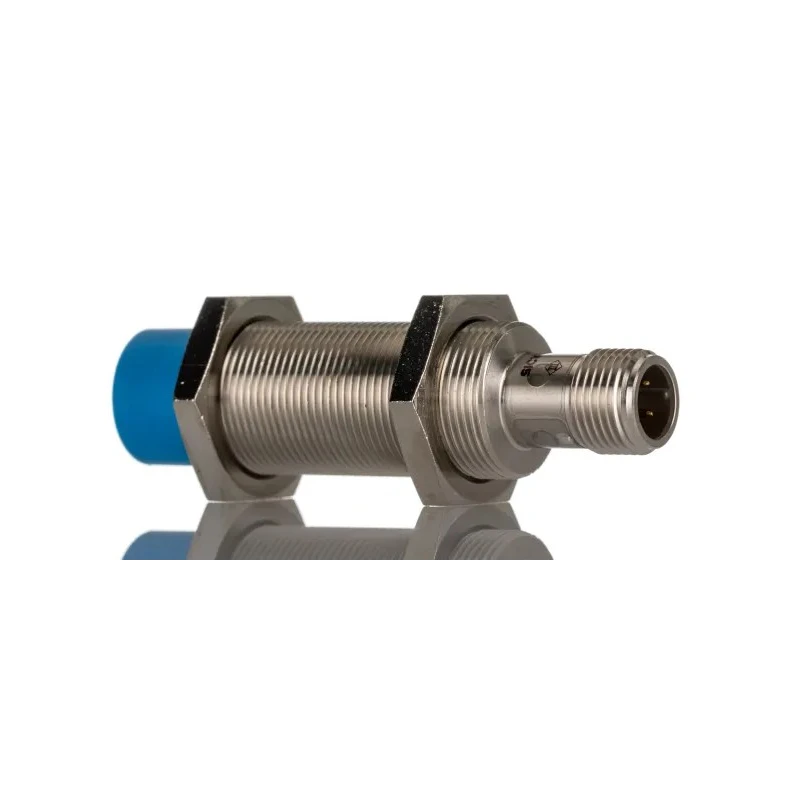

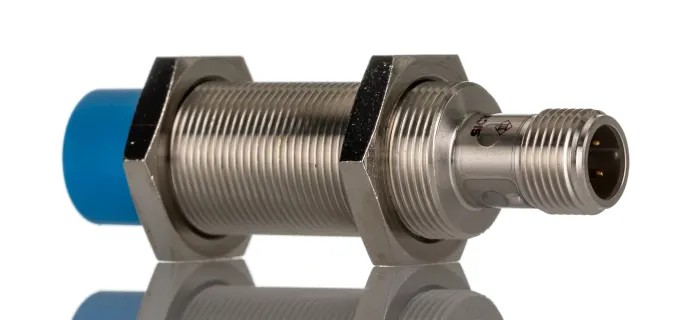

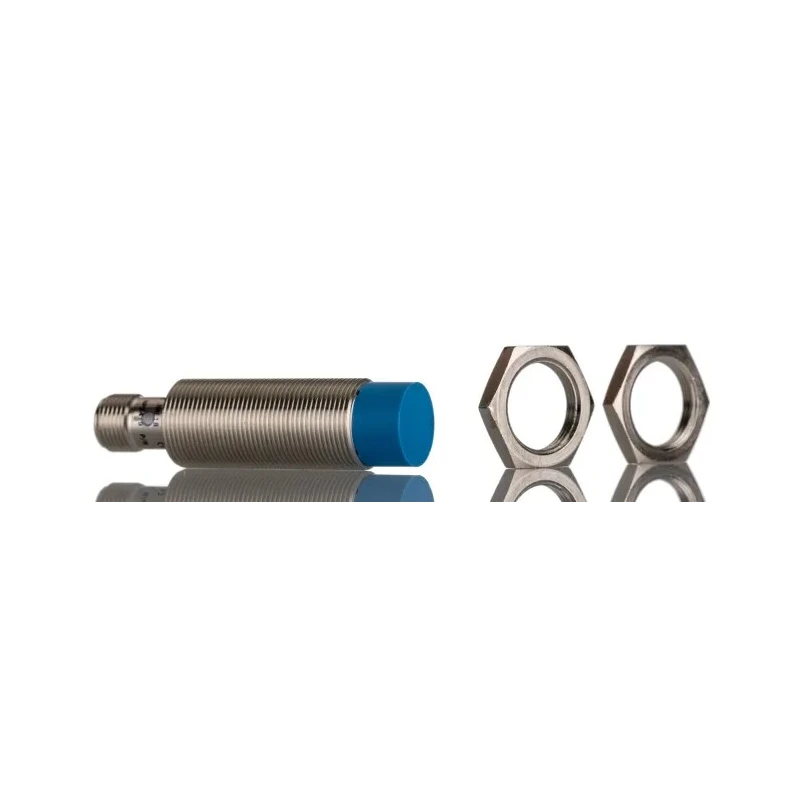

SICK Threaded Barrel Inductive Proximity Sensor M18 x 1, PNP Output, 30 V DC, 12 mm Detection Range IME18-12NPSZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 50mm |
| Model | IME18-12NPSZC0K |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME18 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M18 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 12mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- The sensor features a 12 mm maximum detection distance for metal materials.
- Constructed with a robust metal housing and plastic sensing face ensuring durability.
- IP67-rated enclosure provides protection against dust and water ingress.
- Designed for non-flush mount installation with a 4-pin terminal configuration.
- Operates reliably within a temperature range of -25°C to 75°C.
- Offers a maximum switching frequency of 1 kHz and a switching current of 200 mA.
- Unshielded sensor series IME18 allows precise and repeatable switching behavior.
- Suitable for industrial automation tasks including presence detection, position monitoring, and end position sensing.
Product Description
SICK IME18-12NPSZC0K is a threaded barrel Inductive Proximity Sensor with an M18 x 1 thread size, designed for industrial automation applications requiring precise metal object detection. It features a PNP output type and operates on a 30 V DC supply, supporting a maximum detection range of 12 mm on metal surfaces.
This sensor is housed in a metal body with a plastic sensing face, providing excellent durability and resistance to harsh industrial environments. Its IP67-rated enclosure ensures protection against dust and water, making it suitable for demanding industrial, manufacturing, and automation settings.
IME18-12NPSZC0K supports non-flush mounting and has a 4-pin terminal type for straightforward integration into control systems. It operates within a wide temperature range from -25°C to +75°C and supports a switching frequency up to 1 kHz with a maximum switching current of 200 mA, ensuring reliable performance even under dynamic operational conditions.
The sensor design includes unshielded protection enabling wide sensing ranges for various metal detection tasks. Its robust construction and integrated ASIC technology guarantee precise switching points and high repeatability for multiple production runs.
It is ideal for applications such as presence detection of car body parts, component presence checks, positioning of tool carriers, and monitoring of conveyor systems. Additional uses include detection at film tension monitoring, end position control, gripper function monitoring, and automated part infeed/outfeed systems.
The sensor's construct supports resistance to shock and vibration through complete encapsulation with hotmelt molding, enhancing machine availability and reducing downtime. This product is manufactured in Hungary and complies with standards EN 60529 and EN 60947-5-2, assuring quality and safety compliance for industrial sensor applications.
Users can rely on this sensor for high positioning accuracy, long service life, and cost-effectiveness, making it a preferred choice for automation, manufacturing, and control gear integration in demanding industrial environments.
Explore EnvMart’s extensive range of industrial sensors for diverse automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 12 mm for metal materials.
It operates reliably within a temperature range of -25°C to +75°C.
This sensor features a PNP output type.
The sensor has an IP67 rating, providing protection against dust and water ingress.
The maximum switching frequency is 1 kHz.
The thread size of this model is M18 x 1.
This sensor is designed to detect metal materials.
It features a robust metal housing with a plastic sensing face.
This model is designed for non-flush mounting.
The maximum switching current is 200 mA.
It has a 4-pin terminal type for straightforward integration into control systems.
It complies with standards EN 60529 and EN 60947-5-2.
