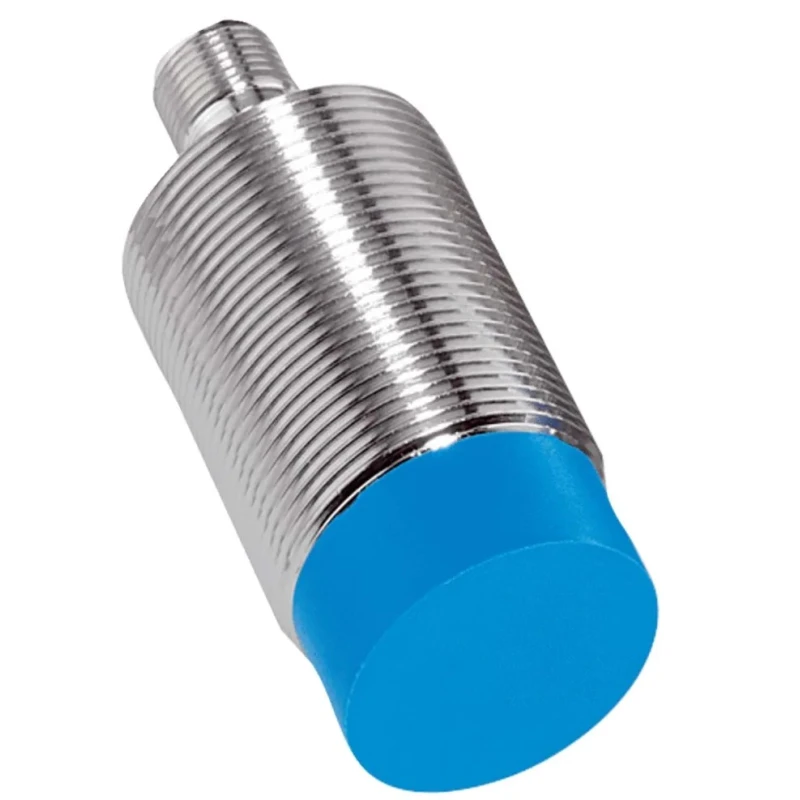

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5 NPN 30 V dc 200mA IME30-15NNSZC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 71mm |
| Model | IME30-15NNSZC0S |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME30 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M30 x 1.5 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 15mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- The sensor supports a maximum supply voltage of 30 V dc and a switching current of 200mA.
- It operates reliably within a temperature range from -25°C to 75°C.
- The sensor features an IP67 enclosure rating for dust and water resistance.
- Equipped with a 4-pin terminal and non-flush mount type for easy installation.
- Unshielded design enables detection of metal targets up to 15 mm distance.
- Maximum switching frequency is 500Hz, providing precise switching behavior.
- Manufactured with a nickel-plated brass housing ensuring durability and shock resistance.
- Conforms to EN 60947-5-2 and EN 60529 standards for safety and protection.
Product Description
The SICK IME30-15NNSZC0S is a high-quality threaded barrel inductive proximity sensor designed for industrial automation and control applications. Featuring a robust M30 x 1.5 threaded metal barrel housing and an unshielded design, this sensor reliably detects metal objects up to 15 mm away.
Operating at a maximum supply voltage of 30 V dc and a switching current of 200mA, it offers precise and fast switching at frequencies up to 500Hz. The sensor is built to withstand harsh environments with an IP67 ingress protection rating, ensuring resistance against dust and water ingress. The operating temperature range between -25°C to 75°C makes it suitable for diverse industrial settings.
Its 4-pin terminal and non-flush mount style allow for flexible integration into automation systems. The nickel-plated brass housing enhances durability while maintaining a compact 71 mm length and 30 mm width profile. This product complies with renowned standards EN 60947-5-2 and EN 60529, guaranteeing safety and performance.
Typical applications include presence detection of car body parts, positioning of tool carriers, monitoring end positions, and part detection in assembly lines. Its high repeatability and long service life reduce downtime and improve machine uptime.
The sensor can be used for non-contact detection and positioning in manufacturing, automotive, packaging, and material handling industries. It is ideal for monitoring the position of mechanical components, end of travel limits, and film tension regulation in automated processes.
The sensor helps in quality control by detecting metallic parts reliably without contact.
This Inductive Proximity Sensor supports wide operating conditions and offers cost-effective, reliable detection solutions for various industrial automation needs. It is made in Hungary to ensure quality and precision.
Explore the full range of SICK sensors and automation components at EnvMart for industrial-grade performance and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 15 mm for metal targets.
It operates reliably within a temperature range from -25°C to 75°C.
This model features an NPN output type.
The maximum supply voltage is 30 V dc.
It supports a maximum switching current of 200 mA.
The sensor has an IP67 enclosure rating, providing protection against dust and water ingress.
It features a non-flush mount type for easy installation.
The sensor has a length of 71 mm and a width of 30 mm.
It conforms to EN 60947-5-2 and EN 60529 standards for safety and protection.
The maximum switching frequency is 500 Hz.
This model is designed to detect metal materials.
This sensor is manufactured in Hungary.
