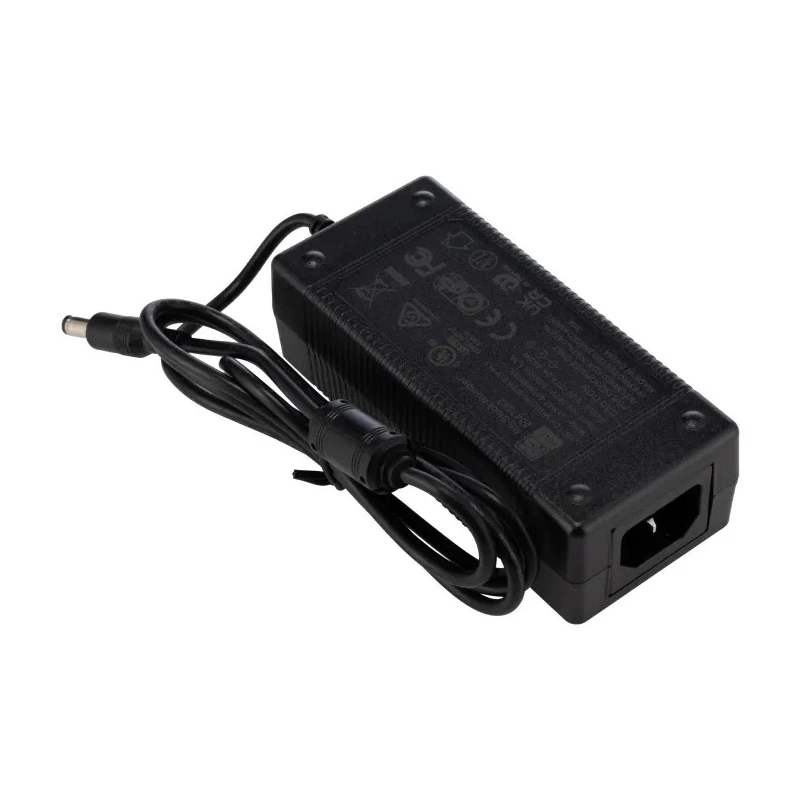

RS PRO 2.1 x 5.5 x 11 mm Centre Positive Power Adapter IEC 320 C14 40 W 5V DC Output 8 A 204-7562
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 40W |
| Efficiency | 86.065% |
| Dimensions | 120mm x 52.5mm x 36mm |
| Model | 204-7562 |
| Depth | 36mm |
| Series | RS PRO |
| Maximum Operating Temperature | 40°C |
| Sub Type | Power Adapter |
| Load Regulation | ±5 % |
| Minimum Operating Temperature | 0°C |
| Plug Type | IEC 320 C14 |
| Output Voltage Rating | 5V to 48 V dc |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Output Voltage | 5V dc |
| Standards/Approvals | UL/CUL:UL/CSA62368-1, CB:IEC62368-1, TUV/GS:EN62368-1 |
| Minimum Input Voltage | 90V ac |
| Output Connector Type | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector Type | IEC 320-C14 |
| Adapter Current | 8A |
| Energy Efficiency Level | VI |
| Rated Output Power | 40W to 72 W |
| Standards/Approvals UL/CUL | UL/CSA62368-1, CB:IEC62368-1, TUV/GS:EN62368-1 |
| + 5V DC 8A 40W RS stock no | 204-7562 |
| + 12V DC 5A 60W RS stock no | 204-7563 |
| + 15V DC 4.33A 65W RS stock no | 204-7564 |
| + 18V DC 3.5A 63W RS stock no | 204-7565 |
| + 24V DC 3A 72W RS stock no | 204-7566 |
| + 36V DC 2A 72W RS stock no | 204-7567 |
| + 48V DC 1.5A 72W RS stock no | 204-7568 |
Key Features
- Switched mode power supply with Class I protection.
- Input connector type IEC 320-C14 supports 90V to 264V AC input voltage range.
- Operating temperature range from 0°C to 40°C.
- Efficiency rating of 86.065% with Energy Efficiency Level VI.
- Overload and short circuit protection ensures device safety.
- Compact design measuring 120mm x 52.5mm x 36mm with lightweight enclosure.
- Compliant with UL62368-1, EN 62368-1, and IEC 62368-1 safety standards.
- Ideal for desktop applications including IT equipment, audio/video devices, instrumentation, and communication systems.
Product Description
RS PRO model 204-7562 is a desktop AC/DC power adapter designed to provide a reliable 5V DC output at 40 watts and 8 amps current. It features a 2.1 x 5.5 x 11 mm centre positive power output connector and an IEC 320 C14 input plug, suited for worldwide voltage input range from 90 to 264V AC. This switched mode power supply incorporates Class I safety protection and offers efficient operation with an 86.065% efficiency rating and Energy Efficiency Level VI compliance.
The compact power adapter measures 120mm x 52.5mm x 36mm and is encased in a fully enclosed plastic housing with an IP20 rating, weighing approximately 240 grams. It supports an operating temperature range of 0°C to 40°C, ensuring suitability across typical indoor environmental conditions.
Protection features include overload protection with hiccup mode and automatic recovery after fault removal, together with short circuit protection to safeguard connected devices. This adapter meets stringent safety approvals including UL/CSA62368-1, IEC62368-1, and EN62368-1 standards, making it reliable for critical desktop and small device power applications.
Typical applications for this RS PRO desktop power supply include powering laptops, CCTV cameras, audio/video equipment, instrumentation, chargers, lamps, and speakers. It offers a convenient and versatile solution for IT, laboratory, manufacturing, industrial, and commercial environments where stable low voltage DC power is needed.
Switched mode power supply with Class I protection. Input connector IEC 320-C14 rated for 90V-264V AC input. 5V DC output at 40W and 8A current capacity. Overload and short circuit protection with auto recovery. Compact dimensions of 120mm x 52.5mm x 36mm and lightweight design.
Energy Efficiency Level VI certified with 86.065% efficiency. Meets UL62368-1, EN 62368-1, IEC 62368-1 safety standards. Suitable for desktop IT, audio, video, instrumentation, and communication use cases.
Explore a wide range of professional power supplies and adapters in EnvMart’s Electronics & Electricals category to find the ideal solution for your industrial or commercial power needs.
Explore more products in our AC/DC Adapters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 5V DC output with a current rating of 8A, delivering a total power of 40W.
It supports an input voltage range from 90V to 264V AC, making it suitable for worldwide use.
The compact dimensions of this power adapter are 120mm in length, 52.5mm in width, and 36mm in height.
It meets UL/CSA62368-1, IEC62368-1, and EN62368-1 safety standards, ensuring reliable operation.
It features an IEC 320 C14 input connector, which is standard for many power supplies.
The efficiency rating is 86.065%, and it is compliant with Energy Efficiency Level VI.
It operates effectively within a temperature range of 0°C to 40°C.

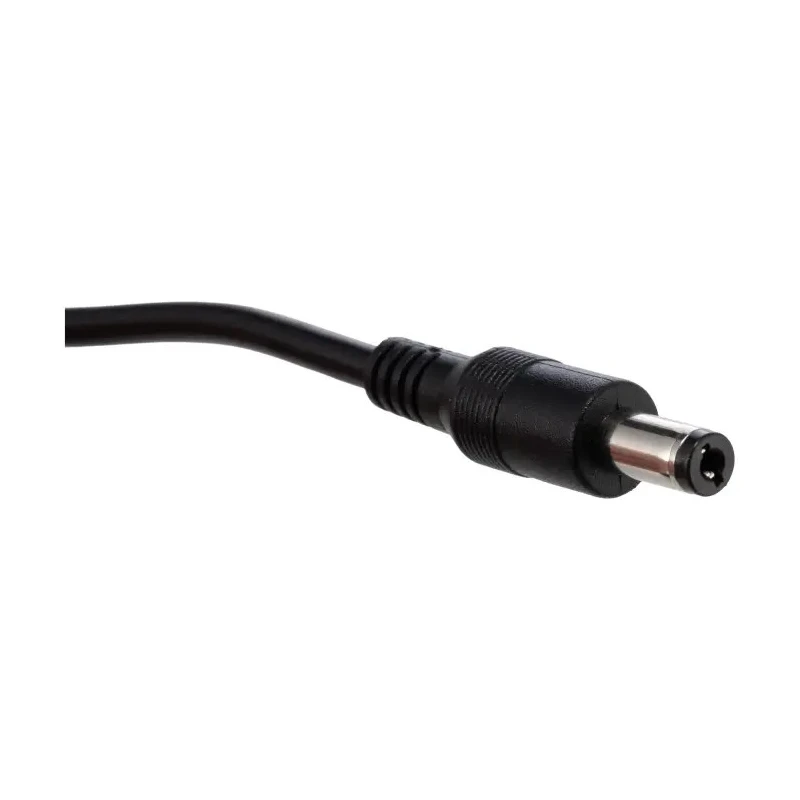

This power adapter has a 2.1 x 5.5 x 11 mm centre positive output connector.
It includes overload protection with hiccup mode and automatic recovery after fault removal, along with short circuit protection.
This unit weighs approximately 240 grams, making it lightweight and easy to handle.
