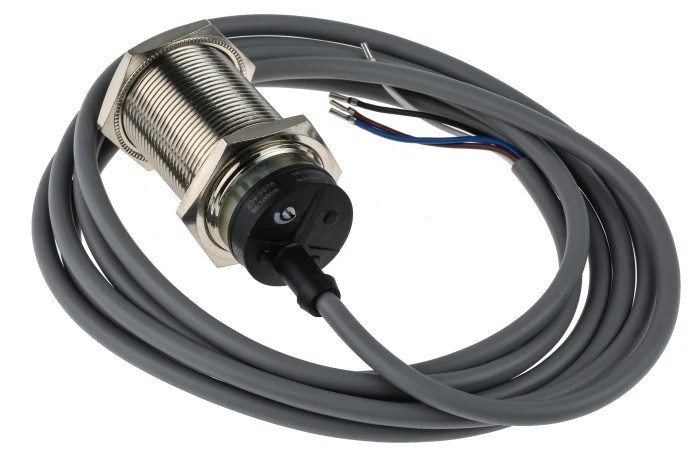

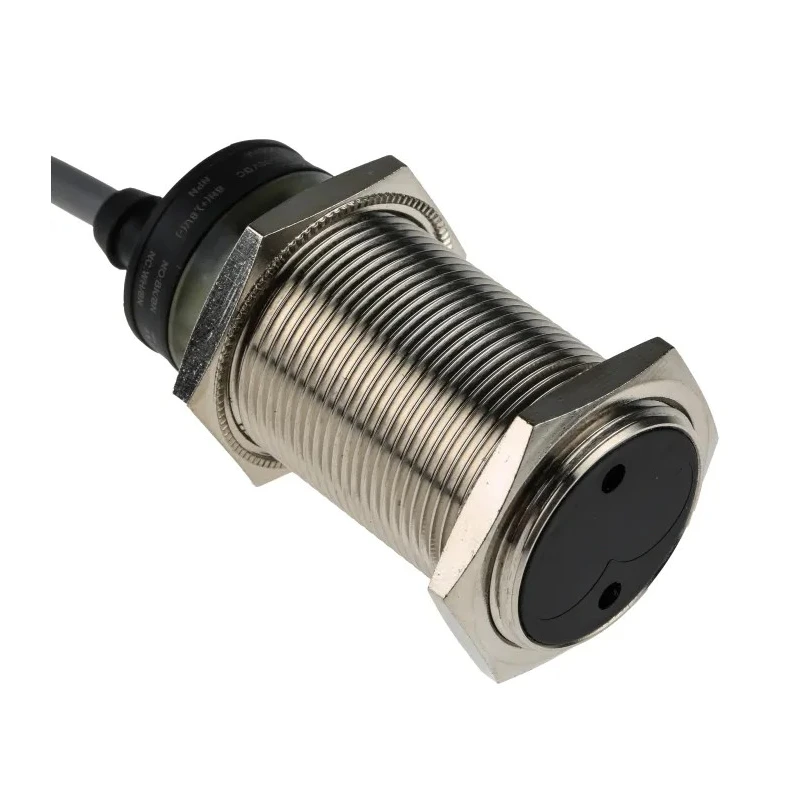

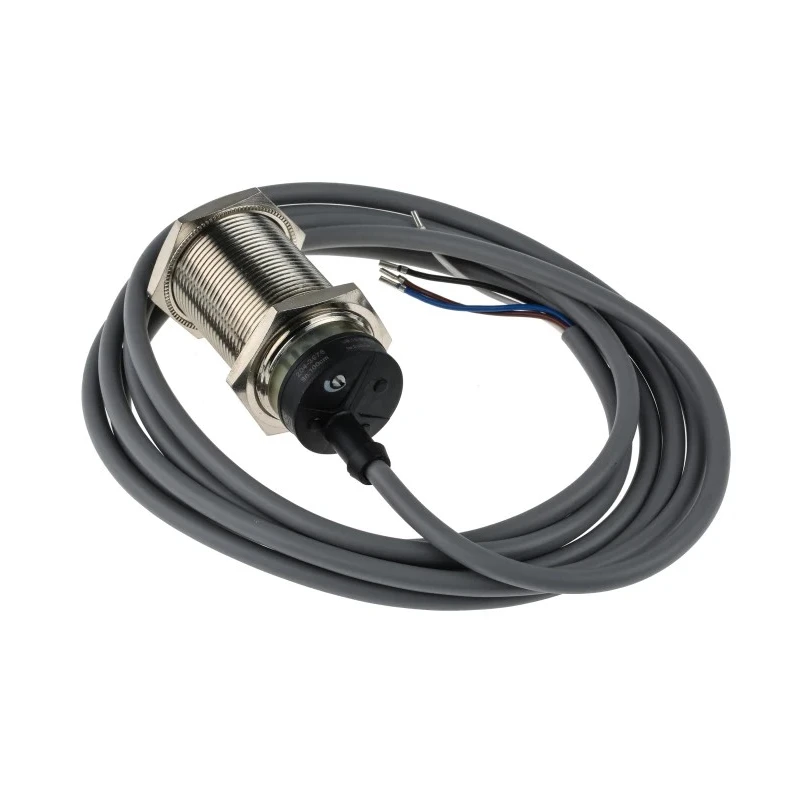

RS PRO Diffuse Reflection Photoelectric Sensor Barrel Sensor 1 m Detection Range NPN NO/NC Output IP67 Rated IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 8.2ms |
| Light Source | Infrared LED |
| Detection range | 1 m |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Copper Nickel |
| Output type | NPN NO/NC |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Thread Size | M30 |
| Minimum Operating Temperature | -15°C |
| Maximum Current | 200mA |
| DetectIon Type | Diffuse Reflection |

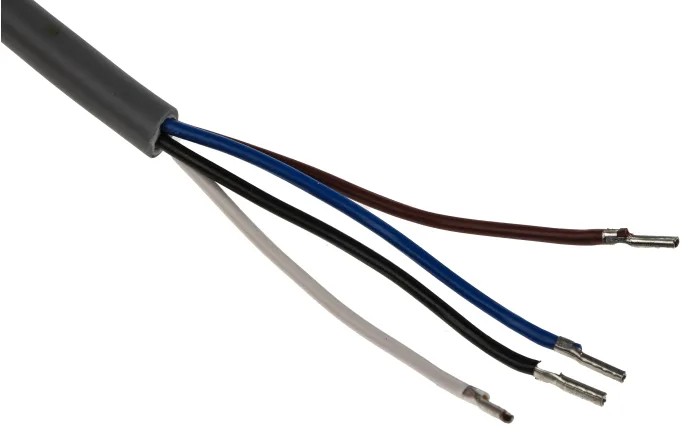

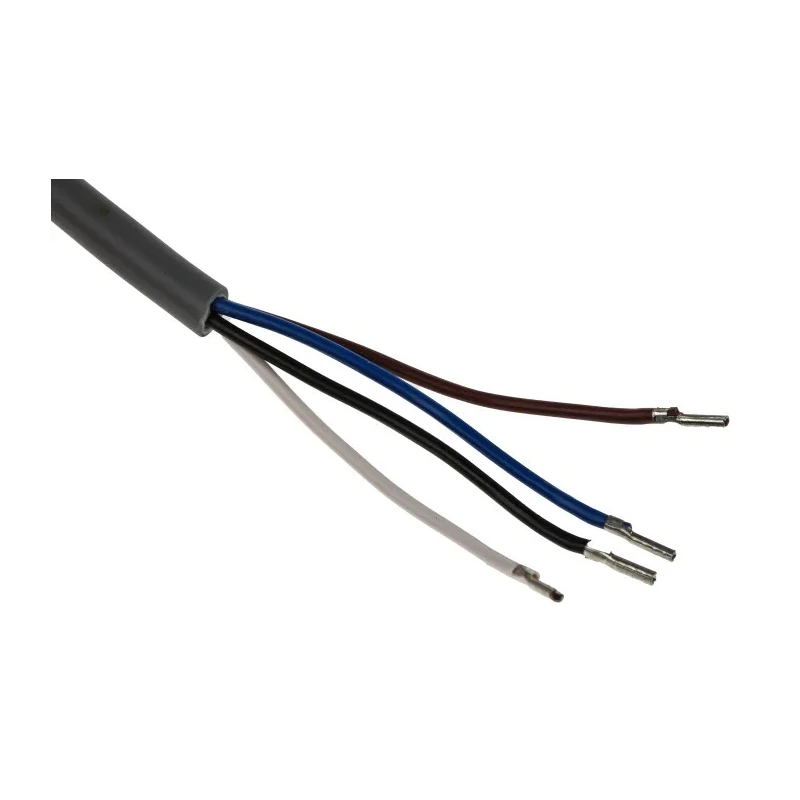

| Terminal type | Cable |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Barrel |
Key Features
- Sensor features a barrel style design for robust installation.
- Detects objects using diffuse reflection with infrared LED light source.
- NPN normally open/normally closed output with cable terminal type ensures signal reliability.
- Rated IP67 for excellent protection against dust and water ingress.
- Operates within a temperature range of -15°C to 55°C ensuring suitability for diverse environments.
- Maximum detection range of 1 meter allows for effective sensing in varied applications.
- Housing made of copper nickel providing durability and corrosion resistance.
- Compact M30 threaded mount facilitates secure and easy mounting with screw attachment.
Product Description
RS PRO IP67 Diffuse Reflection Photoelectric Sensor is a high-quality barrel style sensor designed for reliable object detection in industrial and manufacturing settings.
Utilizing an infrared LED as its light source, the sensor detects the presence or absence of objects through diffuse reflection, providing non-contact sensing that minimizes wear and interference. This makes it particularly suitable for automation systems requiring precise monitoring and control.
Its rugged copper nickel housing and IP67 rating ensure durability and protection against dust and water, making this sensor ideal for demanding industrial and outdoor environments.
The M30 threaded mount with screw fixing allows for secure installation, while the cable terminal output with NPN NO/NC functionality offers versatile integration options in control systems.
Operating within a temperature range of -15°C to 55°C and featuring a fast response time of 8.2 milliseconds, this sensor can support a wide array of applications including manufacturing automation, material handling, robotics, and quality control processes.
Barrel style sensor housing provides mechanical strength and ease of mounting. Detection range of 1 meter enables sensing across medium distances. Infrared LED light source ensures reliable operation in variable lighting conditions.
NPN NO/NC output offers flexible switching based on application needs. IP67 rated enclosure protects against dust and water ingress for industrial use. Wide operating temperature makes it suitable for various climates and environments.
Copper nickel housing resists corrosion and enhances longevity. CE certified for compliance with European safety requirements. Response time of 8.2 ms supports quick detection and automation responsiveness. Thread size M30 and screw mount provide secure fitting options.
This RS PRO sensor is a reliable choice for industries requiring precise and rugged photoelectric sensing solutions. It finds applications in factory automation, conveyor systems, packaging machinery, and process control environments. Selecting this sensor ensures enhanced automation performance with low maintenance needs.
Explore more in the Electronics & Electricals > Sensors > Photoelectric Sensor category at EnvMart for additional compatible automation components and controls.
