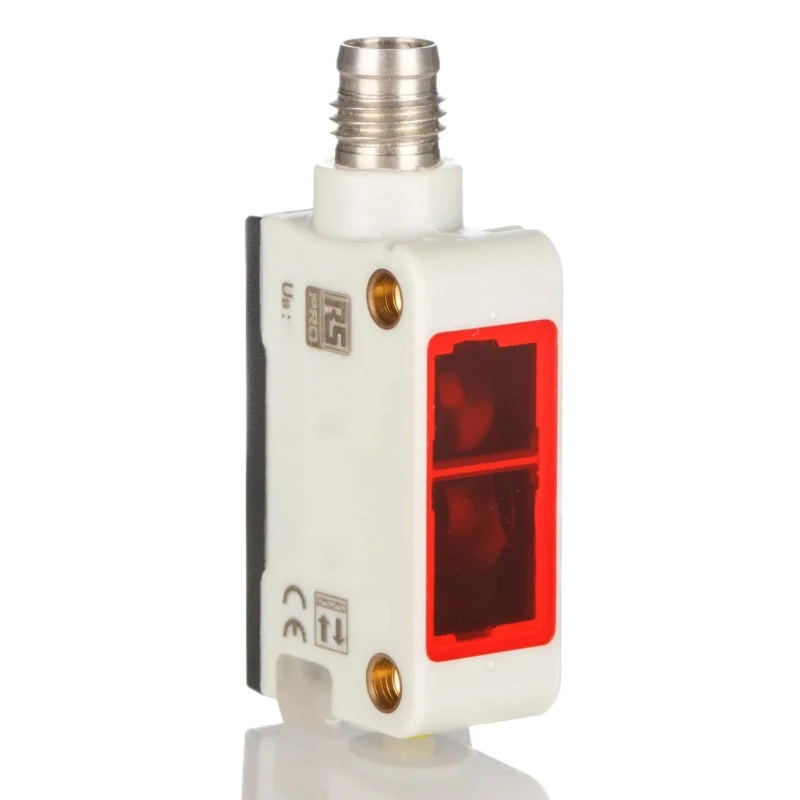

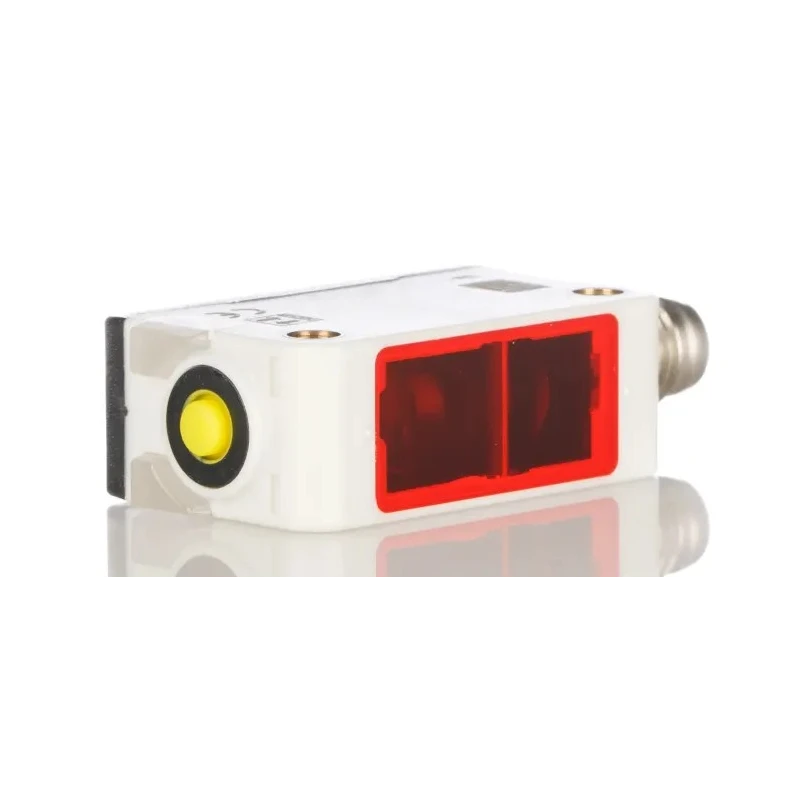

RS PRO Polarised Retro Reflection Photoelectric Sensor, Block Sensor, 4 m Detection Range, NPN NO/NC Output, M8 IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 1ms |
| Light Source | Red Light |
| Detection range | 4 m |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS, Polycarbonate, Polymethyl Methacrylate |
| Electrical Connection | PVC cable or M8 Connector |
| Output type | NPN NO/NC |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Note | Emitter and receiver should be used in pairs |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 200mA |

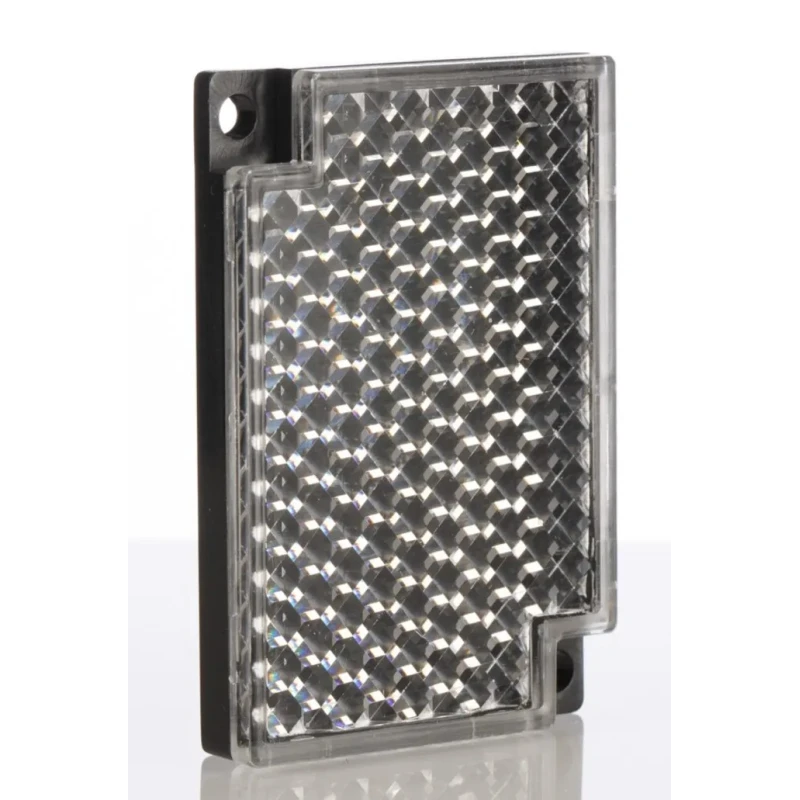

| DetectIon Type | Polarised Retro Reflection |

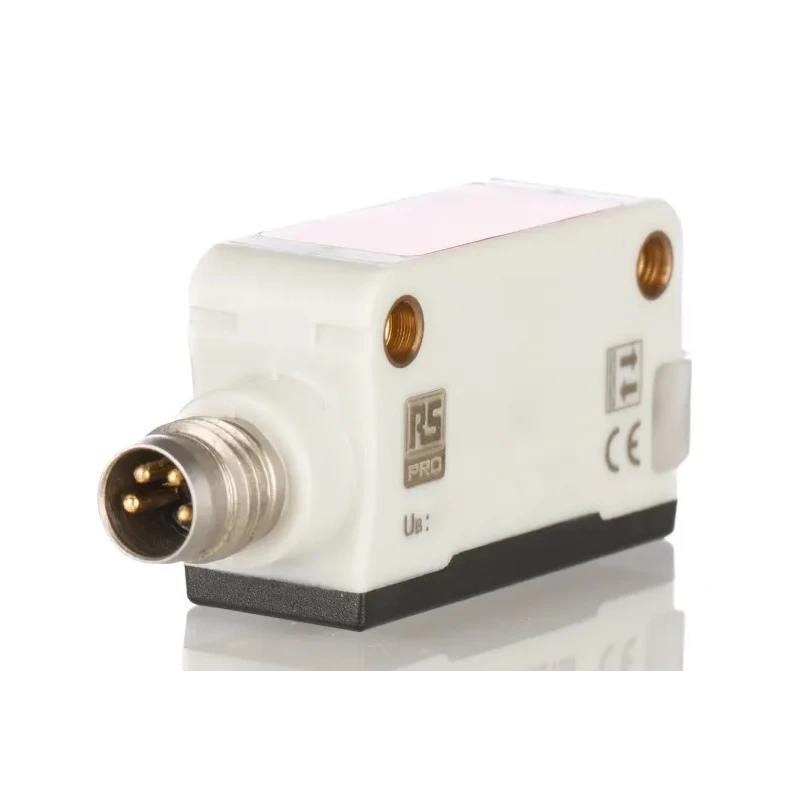

| Terminal type | M8 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Block |
Key Features
- The sensor offers a 4 meter detection range using polarized retro reflection technology.
- It features a robust IP67 rated housing suitable for harsh and wet conditions.
- The output type is switchable NPN normally open or normally closed via M8 connector.
- The device operates with a red light source and a response time of 1 millisecond.
- It is constructed from durable ABS, polycarbonate, and polymethyl methacrylate materials.

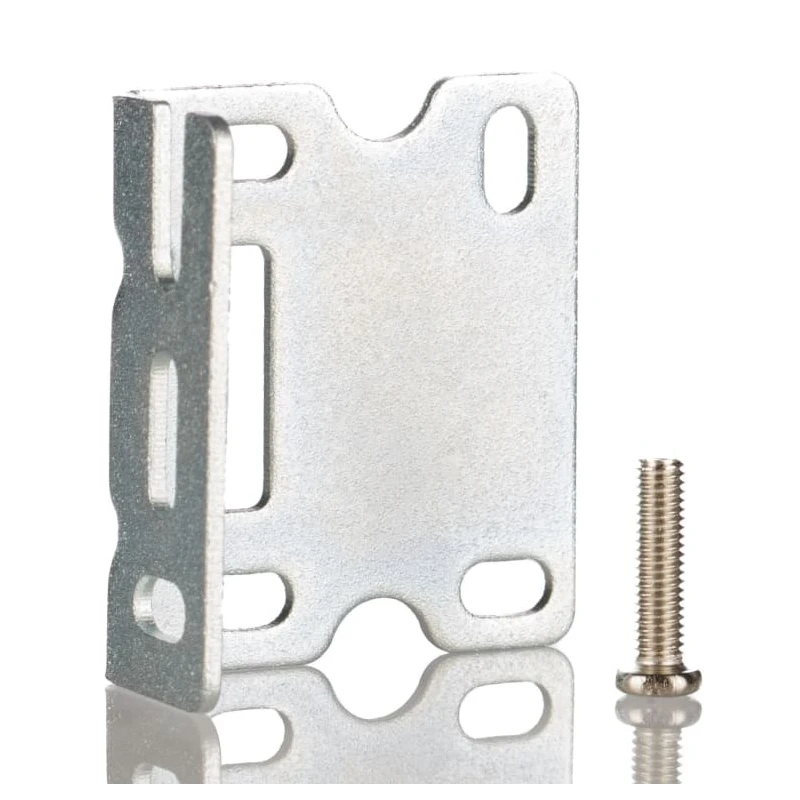

- The mounting is designed for bracket and screw fixing for secure installation.
- The sensor is designed to operate between -25°C to 55°C for a wide thermal range.
- Maximum operating voltage is 30 V DC with maximum current rating of 200 mA.
Product Description
RS PRO IP67 Polarised Retro Reflection Photoelectric Sensor, model IP67, is a highly reliable block sensor designed for industrial automation and control systems. With a detection range of 4 meters, this sensor is suitable for precise detection tasks on conveyor belts and manufacturing lines.
This sensor uses polarized retro reflection technology to detect objects regardless of material, making it effective for high light or transparent objects. Its robust housing with IP67 rating ensures protection against dust and water ingress, fitting harsh industrial environments.
The sensor features an NPN output that is switchable between normally open and normally closed states, connected via an M8 connector or PVC cable. Equipped with a red light source, it provides rapid detection with a response time of 1 ms.
Manufactured with durable ABS, polycarbonate, and polymethyl methacrylate, it is designed for bracket and screw mounting, providing stable installation. It operates reliably within a temperature range from -25°C up to 55°C and supports a maximum DC voltage of 30 V and current of 200 mA.
Certified to CE standards, the RS PRO IP67 photoelectric sensor is ideal for applications in manufacturing, industrial automation, laboratory and testing equipment, and conveyor systems.
The sensor offers a 4 meter detection range using polarized retro reflection technology. It has an IP67 rated housing suitable for harsh environments. The output type is NPN NO/NC switchable with M8 connector. Response time is 1 millisecond for fast operation.
Wide operating temperature range from -25°C to 55°C. Constructed with ABS, polycarbonate, and polymethyl methacrylate materials. Mounting options include bracket and screw fixing. Supports maximum 30 V DC and 200 mA current.
Electrical connections via PVC cable or M8 connector. CE certified for industrial and manufacturing applications. Set contains the polarised retro reflection photoelectric sensor unit. The emitter and receiver should be used in pairs for proper operation.
Browse more RS PRO sensors and Photoelectric Sensor products at EnvMart for comprehensive industrial sensing solutions.
