| Country of Origin | India |
|---|---|
| Voltage | 50V dc |
| Brand | Yageo |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | CC0603JRNPO9BN220 |
| Packaging | Paper/PE Tape Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | Standard |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 22pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | C0G |
| Suppression Class | Class I |

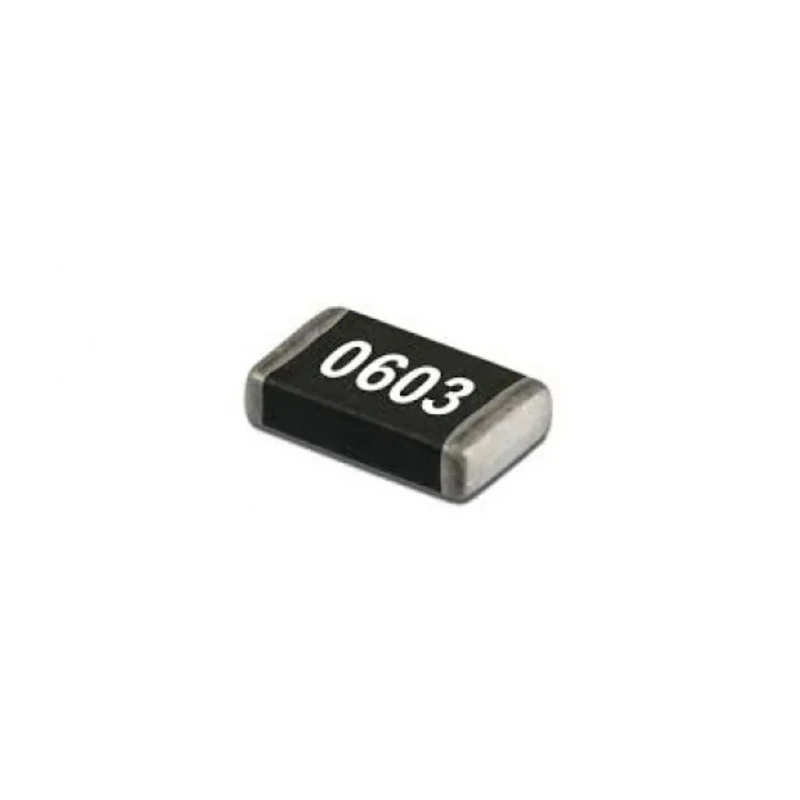

Yageo CC0603JRNPO9BN220 is a high-quality multilayer ceramic capacitor with a capacitance value of 22 pF and a voltage rating of 50V dc. Designed for surface mount technology, this capacitor uses a stacked construction combined with C0G dielectric, providing excellent temperature stability and minimal capacitance change over temperature variations.
The compact 0603 package dimensions (1.6 mm length x 0.8 mm width x 0.8 mm height) allow for efficient PCB layout and space-saving in electronic assemblies. Its tolerance of ±5% ensures precise capacitance in critical circuits. It complies with international IEC standards 60384-1 and 60384-21/22, guaranteeing reliable performance in diverse applications.
Operating within a temperature range of -55°C to 125°C, this device is suitable for automotive and industrial electronics, ensuring durability under harsh conditions. The Class I suppression classification indicates superior stability characteristics, making it ideal for filtering, tuning, and timing applications.
The capacitor features surface mount termination, supporting automated assembly lines for mass production. Typical industrial uses include television receivers, tuners, and camera circuits where dimensional accuracy and electrical stability are paramount.
Constructed with stacked ceramic dielectric for durability. 0603 surface mount package compatible with automated PCB assembly. Thermally stable C0G dielectric material. ±5% capacitance tolerance for reliable circuit performance.
Conforms to IEC 60384-1 and IEC 60384-21/22 standards. Operates reliably from -55°C to 125°C temperature range. Class I suppression for minimal loss and high stability. Surface mount termination suitable for mass production.
Widely used in TVs, tuners, and camera electronics.
This Multilayer Ceramic Capacitor by Yageo offers precision and reliability for electronics manufacturing and repairs. Browse the Electronics Components category at EnvMart for more solutions from Yageo and similar premium brands.
