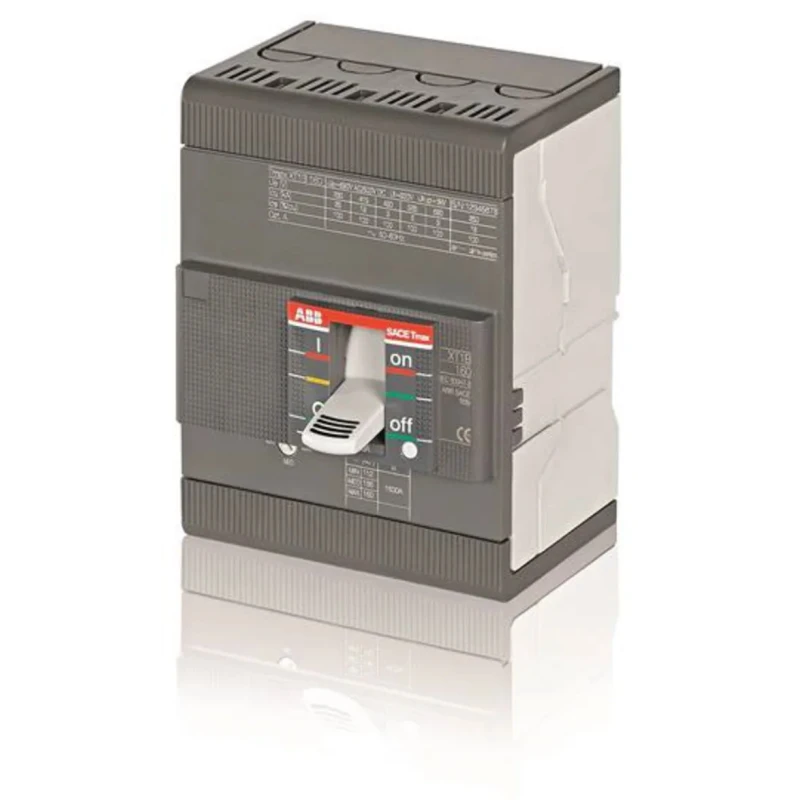

ABB SACE Tmax XT XT1 Molded Case Circuit Breaker 4-Pole 80A 25kA Breaking Capacity 690V AC 500V DC Thermal 1SDA067405R1

Free Delivery in India | Lowest Global Shipping Charges

ABB SACE Tmax XT XT1 Molded Case Circuit Breaker 4-Pole 80A 25kA Breaking Capacity 690V AC 500V DC Thermal 1SDA067405R1



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	SACE Tmax XT
Brand	ABB
Height	130mm
Model	1SDA067405R1
Depth	130mm
Width	70mm
Current Rating	80A
Series	XT1
Terminal type	Front
Breaking Capacity	25kA
Number of Poles	4
Standards/Approvals	RoHS, IEC
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Tripping Characteristics	TMD
Tripping Mechanism	Thermal Magnetic

Key Features

Features thermal magnetic tripping mechanism for reliable operation.
Rated for 690V AC and 500V DC voltages.
Front terminal type ensures easy and safe wiring.
Compact dimensions with height and depth of 130mm, and width of 70mm.
Complies with IEC standards and RoHS directive for safety and environmental compliance.
Constructed for industrial and commercial electrical circuit protection.
Manufactured in Italy ensuring high quality and durability.

Product Description

ABB 1SDA067405R1 SACE Tmax XT XT1 molded case circuit breaker is a high-quality 4-pole circuit protection device rated at 80 amperes with a breaking capacity of 25kA. Designed with a thermal magnetic tripping mechanism, it effectively protects electrical installations against overloads and short circuits.

With a rated AC voltage of 690 volts and rated DC voltage of 500 volts, this breaker suits a wide range of industrial electrical applications. The front terminal type facilitates convenient wiring and maintenance, ensuring a safe and user-friendly installation process.

This circuit breaker features compact dimensions of 130mm height and depth, and a width of 70mm, allowing it to fit efficiently within electrical panels and distribution boards. Compliance with IEC standards and RoHS certification guarantees environmental and safety standards are met, making it ideal for commercial, industrial, and manufacturing electrical systems.

Thermal magnetic tripping mechanism for overload and short circuit protection. Rated current of 80A with 25kA breaking capacity ensures reliable fault interruption. Suitable for AC voltage up to 690V and DC voltage up to 500V.

Front terminal type for ease of installation and connection. Compact and ergonomic design with 130mm height and depth and 70mm width. Meets IEC standards and RoHS environmental compliance. Manufactured in Italy, reflecting high-quality engineering.

This ABB Molded Case Circuit Breaker is widely used in industrial automation, manufacturing plants, commercial electrical installations, infrastructure projects, HVAC systems, and other applications requiring robust electrical protection solutions. Its design ensures longevity and safety in demanding environments.

Explore more ABB electrical protection devices and circuit breakers in the EnvMart portfolio to ensure reliable and efficient electrical network operation.
