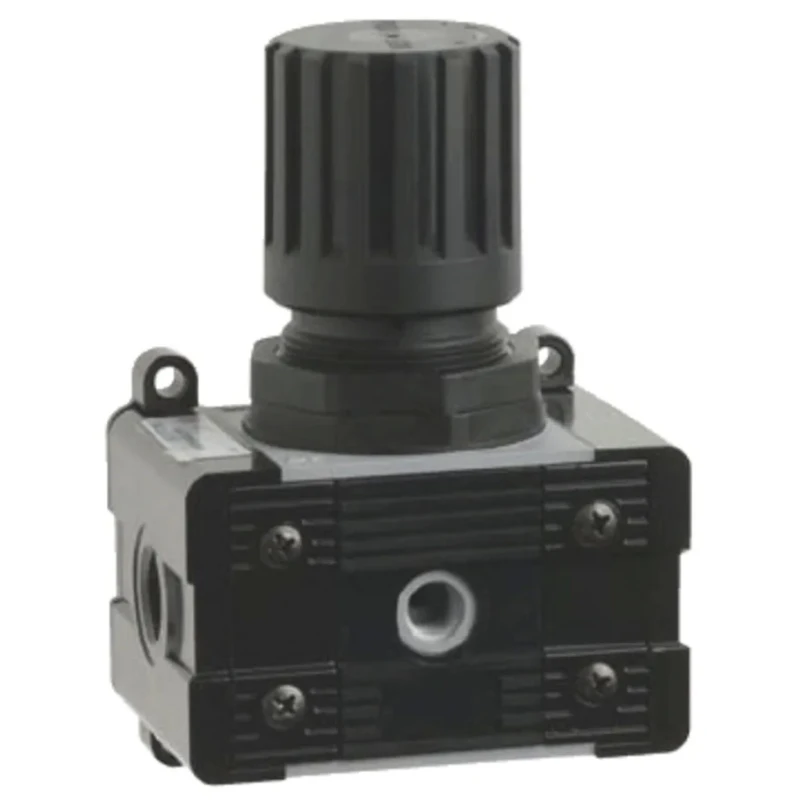

RS PRO 1/2 Inch Pneumatic Regulator 8 Bar Maximum Operating Pressure 3200 NL/min Flow Rate Model 176-1725
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Nickel Plated Brass |
| Maximum Operating Pressure | 8 bar |
| Model | 176-1725 |
| Overall Length | 89mm |
| Series | RS PRO |
| Overall Width | 59mm |
| Maximum Operating Temperature | 50°C |
| Port Size | 1/2 in |
| Minimum Operating Temperature | -10°C |
| Overall height | 121mm |
| Maximum Flow Rate | 3200NL/min |
| Connection Thread Standard | G |
| Pressure Gauge Port Thread Standard | G |
| Pressure Setting Range | 0 to 8 bar |
Key Features
- Port size and pressure gauge ports measure 1/2 inch for easy integration.
- Body constructed from durable nickel plated brass ensuring corrosion resistance.
- Operating temperature range from -10°C up to 50°C.
- Pressure setting range from 0 to 8 bar enabling fine control.
- Compact dimensions with overall length of 89 mm and height of 121 mm support installation in tight spaces.
- Suitable for multiple gas media and free of silicone to prevent contamination.
- Incorporates coalescing filters to block debris and maintain air quality.
- Designed for modular pneumatic systems allowing scalable configurations.
Product Description
RS PRO 176-1725 is a high-quality pneumatic regulator designed to control and stabilize air or gas pressure within industrial and mechanical applications. Featuring a maximum operating pressure rating of 8 bar and capable of supporting flow rates up to 3200 NL/min, this regulator ensures consistent performance in pneumatic systems.
The regulator utilizes a 1/2 inch G-standard threaded port connection for both input and pressure gauge ports, made from nickel plated brass which offers excellent resistance to corrosion and wear. It operates reliably within a temperature range of -10°C to 50°C, making it suitable for diverse environments.
Its compact form factor - measuring 89 mm in length, 59 mm in width, and 121 mm in height - allows easy integration into pneumatic air preparation setups in industrial, manufacturing, and fluid power tools sectors. The pressure setting range from 0 to 8 bar provides precise air pressure control to protect downstream equipment and optimize system efficiency.
A key feature is its compatibility with various gas media, achieved by being silicone-free to prevent impairing or contaminating sensitive components. Additionally, built-in coalescing filters minimize the risk of dust and debris ingress, enhancing the longevity and reliability of pneumatic devices.
This RS PRO regulator is part of a modular pneumatic system family and can be combined with air distributors and connection plates to tailor air circuits to specific operational demands.
Port size 1/2 inch ensures compatibility with common pneumatic fittings. Maximum flow rate of 3200 NL/min supports high-throughput requirements. Temperature range suitability from -10°C to 50°C for standard industrial settings.
Constructed of nickel plated brass for durable performance. Pressure setting adjustable from 0 to 8 bar for flexible pressure control. Includes coalescing filters to prevent impurities in airflow. Supports modular system design with RS PRO pneumatic components.
This product is ideal for use in mechanical, fluid power, pneumatic, and hydraulic equipment applications across industrial, manufacturing, and HVAC sectors. It enables enhanced operational safety and efficiency by stabilizing air pressure in pneumatic circuits.
Explore additional RS PRO Pneumatic Regulators and components on EnvMart for comprehensive pneumatic system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic regulator is 8 bar.
This model supports a maximum flow rate of 3200 NL/min.
The overall dimensions of this unit are 89 mm in length, 59 mm in width, and 121 mm in height.
The body of the regulator is constructed from nickel plated brass, which provides corrosion resistance.
It operates reliably within a temperature range of -10°C to 50°C.
It utilizes a 1/2 inch G-standard threaded port connection for both input and pressure gauge ports.
Yes, it incorporates coalescing filters to block debris and maintain air quality.
Yes, it is suitable for multiple gas media and is silicone-free to prevent contamination.
The pressure setting range is adjustable from 0 to 8 bar, allowing for fine control.
Yes, it is designed for modular pneumatic systems, allowing for scalable configurations with other components.
This model is ideal for use in mechanical, fluid power, pneumatic, and hydraulic equipment applications across industrial and manufacturing sectors.
