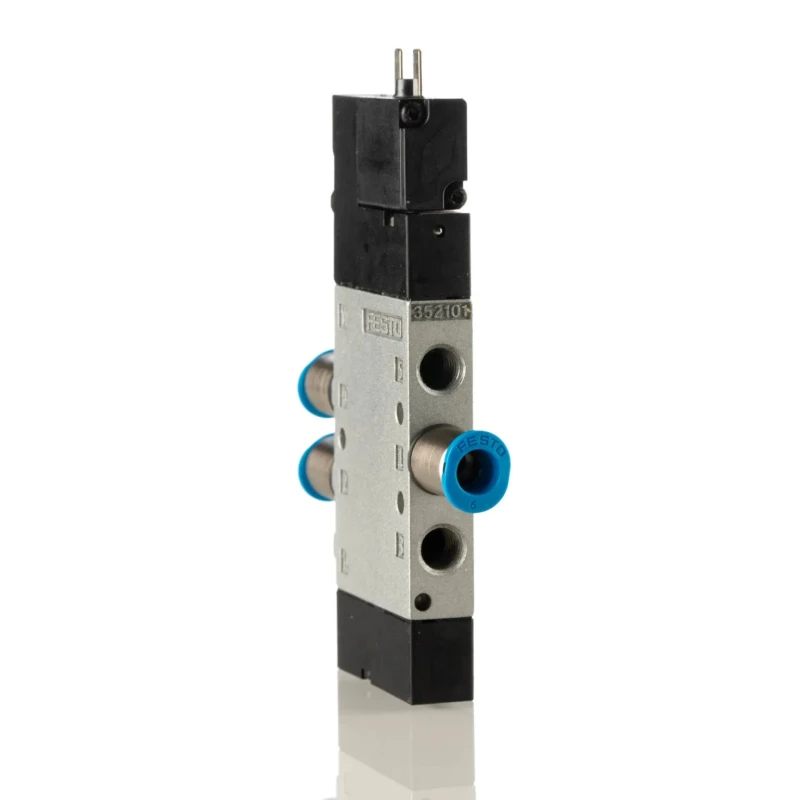

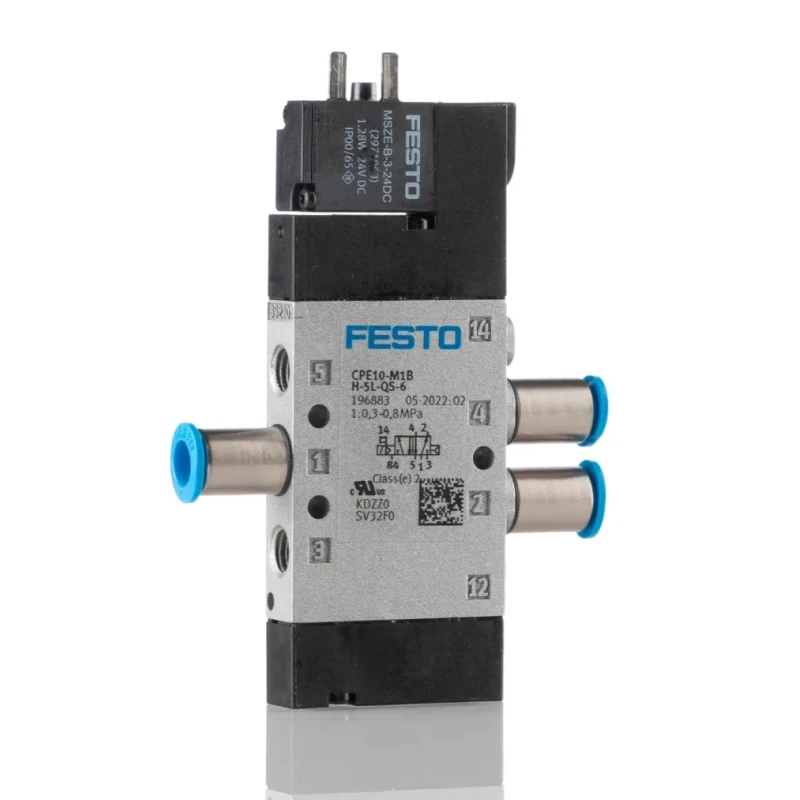

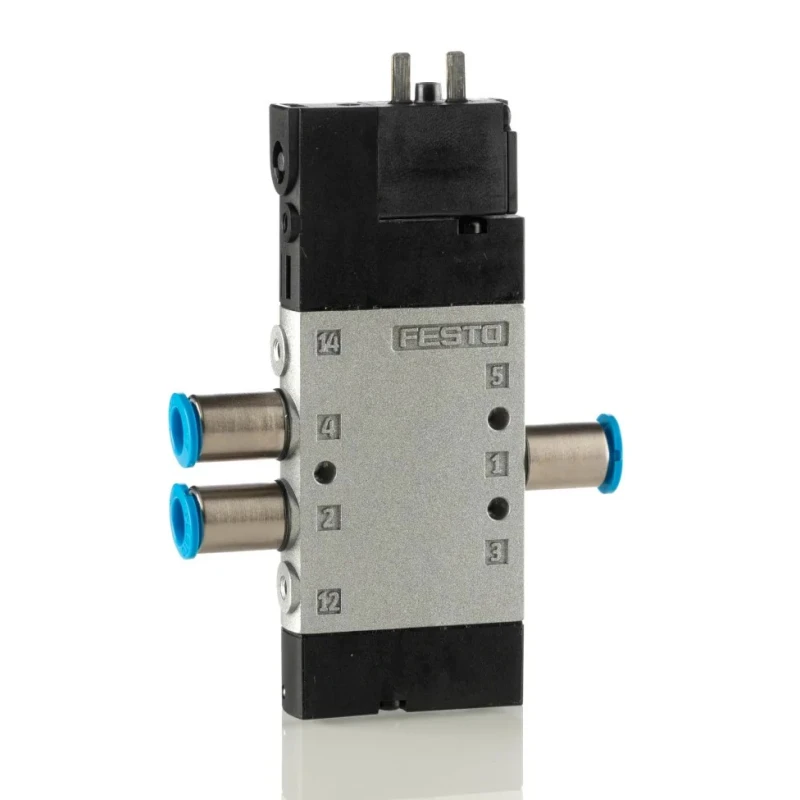

Festo Solenoid Pilot Valve Electric G CPE Series, 5/2 Valve Function, 24V DC, Aluminium Body, Model CPE10-M1BH-5L-QS-6

Festo CPE10-M1BH-5L-QS-6 Solenoid Pilot Valve from the Electric G CPE Series is designed to efficiently regulate compressed air flow in pneumatic control systems. With a 5/2 valve function and electric actuation at 24V DC, this valve provides reliable and precise operation for industrial pneumatic applications.

The valve features a robust aluminium die-cast housing that is resistant to corrosion and mechanical impact, ensuring durability in harsh operational environments. The compact size with a 10 mm width and through-hole mounting style offers flexibility for integration into complex pneumatic setups.

Operating pressures range from 3 to 8 bar with the ability to handle pilot pressures between 0.9 and 10 bar, making it suitable for controlling double-acting cylinders and other pneumatic actuators. The valve's push-in one-touch 6 mm port sizing and threaded G standard connection facilitate secure and easy installation.

This solenoid valve delivers a high maximum flow rate of 350 L/min, enabling efficient airflow management in heavy-duty applications. Additionally, the valve complies with industry standards including RoHS and c UL US, and its IP65 ingress protection rating ensures protection against dust and low-pressure water jets, making it apt for challenging environments.

Typical use cases for the CPE10-M1BH-5L-QS-6 solenoid valve include automotive manufacturing, industrial automation systems, and medical and dental equipment, where precise pneumatic control is critical.

Operates on 24V DC electric actuation for precise pneumatic control. 5/2 valve function with 5 ports and 2 positions suitable for double-acting cylinders. Robust aluminium die-cast body ensures resistance to corrosion and impact.

Push-in 6 mm one-touch fittings enable quick and secure connection. Wide operating temperature of -5°C to 50°C supports varied environments. High maximum flow rate of 350 L/min accommodates heavy-duty applications. IP65 rating guarantees dust-tightness and water jet protection.

Threaded connection standard G and 1/4 inch thread size. Compact design with 10 mm width and through-hole mount style. Compliant with RoHS and c UL US standards.
