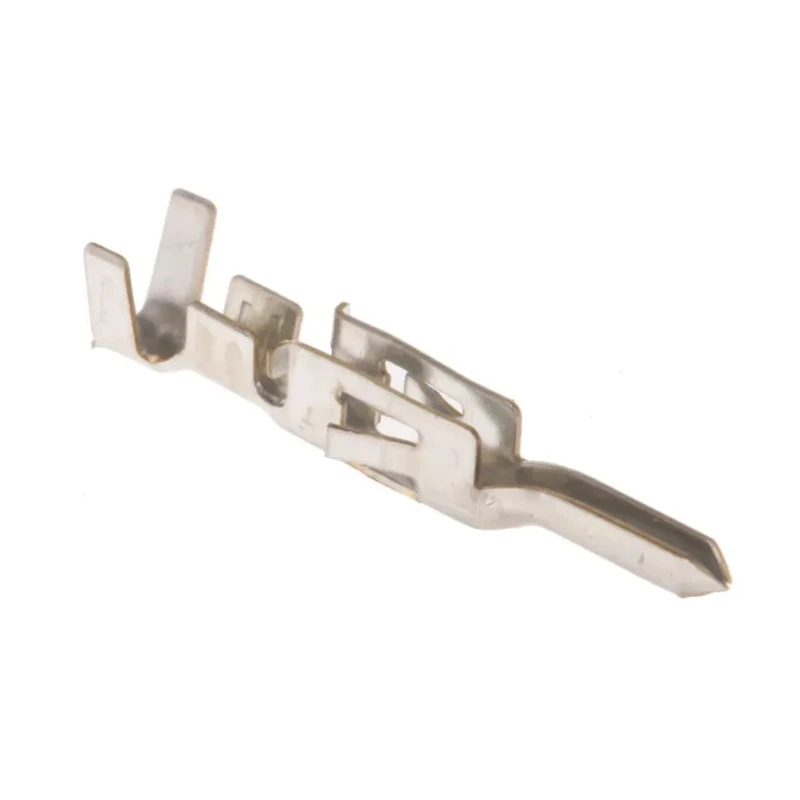

TE Connectivity VAL-U-LOK Series Male Crimp Terminal 26 AWG Min Wire 22 AWG Max Wire 9A Current 1586316-1

TE Connectivity 1586316-1 VAL-U-LOK Series Male Crimp Terminal is a precision-engineered crimp contact designed to provide secure and reliable electrical connections within VAL-U-LOK connector housings. This contact terminal supports wire sizes ranging from 26 AWG (minimum) to 22 AWG (maximum), accommodating cables sized between 0.1 mm² and 0.3 mm². It is rated for a current carrying capacity of 9 amperes, making it suitable for a wide range of electronic and electrical applications requiring standard power handling capability.

The contact material is brass, selected for excellent electrical conductivity and mechanical strength, enhanced with a tin plating to resist corrosion and maintain long-term performance. The male crimp terminal design ensures a robust, snap-in connection that withstands vibration and mechanical stress.

Engineered to operate within a broad temperature range from -40°C to 105°C, this terminal is suitable for use in harsh industrial, commercial, and electronic environments. The maximum contact resistance is specified at 10 milliohms, ensuring minimal power loss and efficient energy transfer.

Applications for this terminal include PCB connectors, wire harness assemblies, power connectors, and other electronic component interfaces where reliable crimp contacts are essential. Although it carries no specific certifications or standards, it is manufactured in China by TE Connectivity, a globally recognized leader in connectivity solutions.

Suitable for use with VAL-U-LOK connector housings. Supports minimum wire size of 26 AWG and maximum wire size of 22 AWG. Constructed from brass contact material with tin plating for durability. Features a crimp termination type for secure connections.

Operates reliably in temperatures ranging from -40°C to 105°C. Maximum contact resistance of 10 milliohms ensures efficient conductivity. Designed as a male gender Crimp Terminal suitable for various industrial applications.

This part is ideal for industrial electronics, power connectors, manufacturing equipment wiring, and automotive electrical systems. The robust design ensures long-lasting performance in demanding environments.
