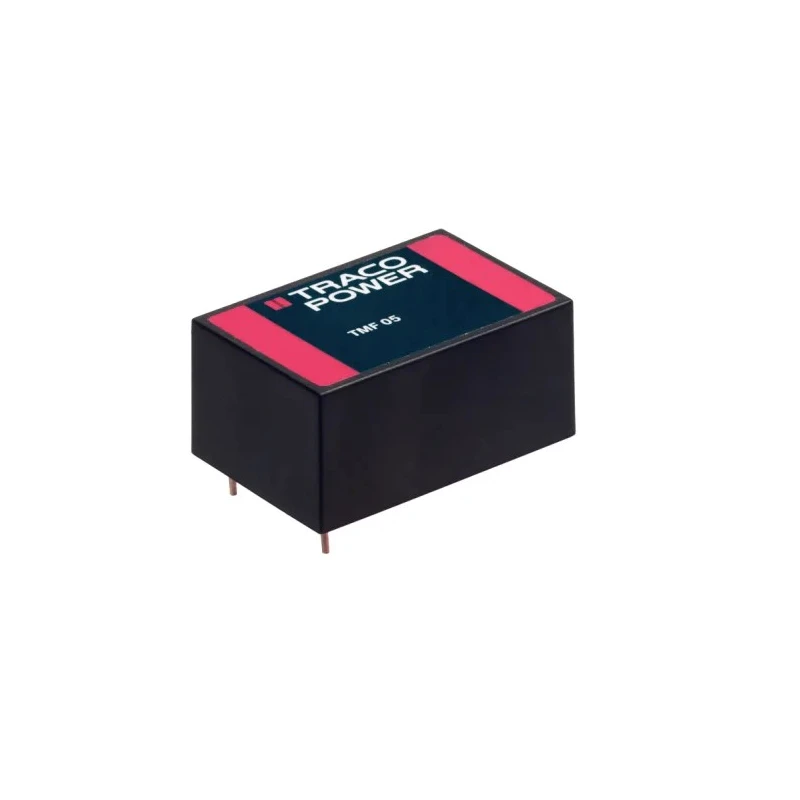

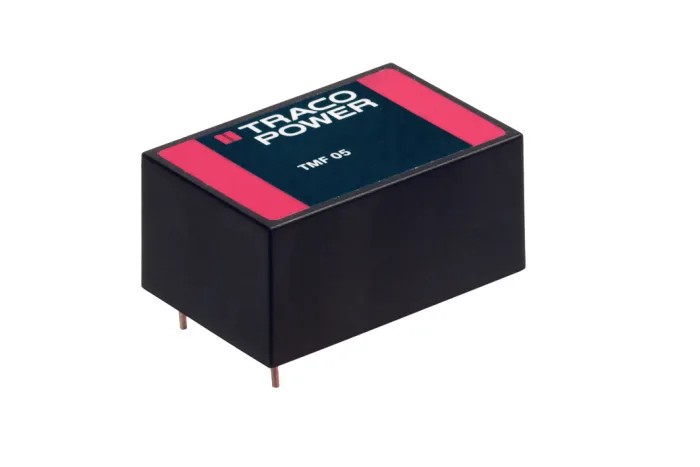

TRACOPOWER TMF 05105 Switching Power Supply 5V 5W PCB Mount Fully Encapsulated Medical Grade TMF 05105

TRACOPOWER TMF 05105 Switching Power Supply is a fully encapsulated switch mode power supply module designed primarily for medical equipment, ensuring safety, reliability, and quality in critical applications. The compact unit easily mounts on PCBs with its plastic casing offering Class II protection and low leakage current, making it highly suitable for stationary and transportable medical instruments.

This power supply operates efficiently within an input voltage range of 90 V AC to 264 V AC and delivers a regulated 5 V output with a maximum power of 5 W and current of 1 A. It functions reliably across a broad temperature range from -25°C to 70°C, encompassing various environmental conditions encountered in industrial and laboratory environments.

Adhering to stringent international medical safety standards such as IEC 60601-1, EN 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1:14, and RoHS compliance, the TMF 05105 assures high performance and safety. Its efficiency of 77% ensures reduced energy wastage and improved thermal management.

The unit's mechanical specifications include a length of 41.2 mm, width of 27.2 mm, and depth of 19.1 mm, with a lightweight design (30 grams) that facilitates easy integration into electronic assemblies. The power supply also includes short circuit, overload, and overvoltage protections, enhancing device robustness and longevity.

The power supply delivers 5 V output voltage with 1 A output current capacity. It features low leakage current and is fully encapsulated for enhanced safety. Operating temperature range supports usage from -25°C up to 70°C.

Complies with medical and industrial safety standards and certifications. Compact size and lightweight for efficient PCB mounting. Wide input voltage acceptance from 90 V AC to 264 V AC. Provides Class II protection and short circuit, overload, and overvoltage protection.

Efficiency rated at 77% for energy-efficient operation.

This power supply is ideal for industrial, laboratory, and medical applications requiring a reliable low-power DC source with safety certifications. It is suitable for designing medical diagnostic equipment, measurement devices, and other precision instruments. Explore our catalog for more switching power supplies and related power management solutions by TRACOPOWER and other reputed manufacturers to find the perfect match for your technical needs.
