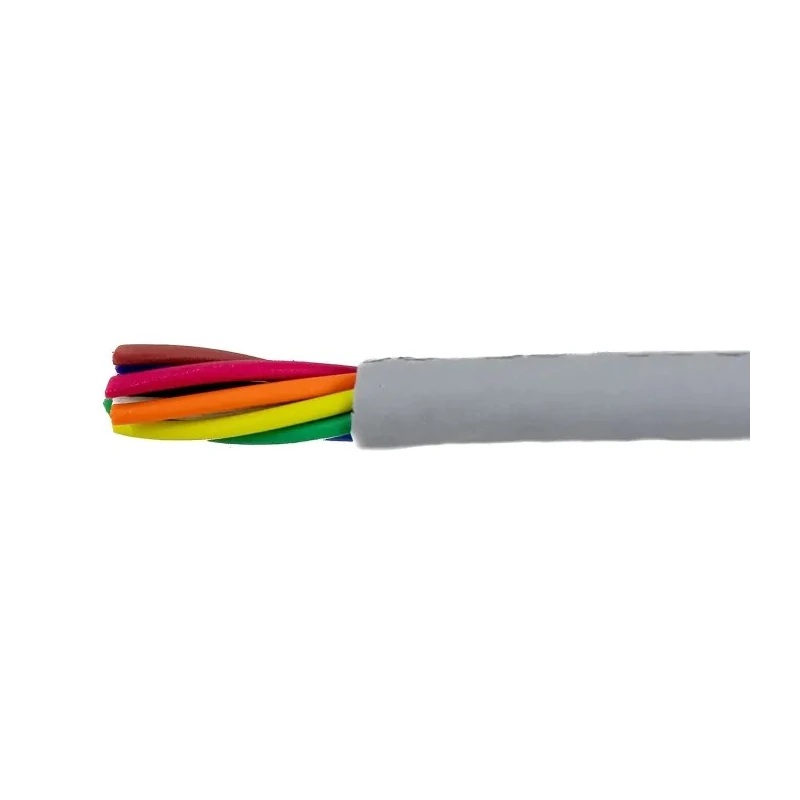

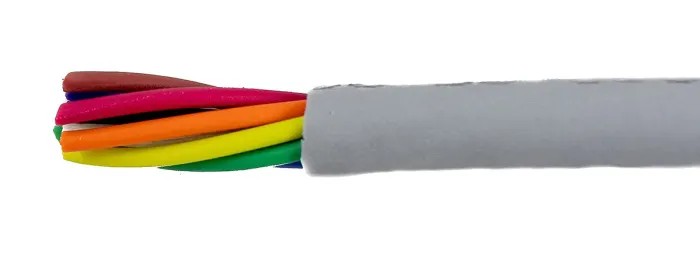

Alpha Wire Ecogen Ecocable Mini Control Cable 8 Cores 0.09mm² 28 AWG Unscreened 300 V Grey Modified Polyphenylene 78008 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78008 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.4mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.134 inch (3.40 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 28AWG |
| Screened/Unscreened | Unscreened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.079mm |
| Size of Strands | 0.079mm |
| Cable CSA | 0.09mm² |
| Conductors | 8, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/40 |
Key Features
- The cable features tinned copper wire conductors for enhanced corrosion resistance.
- Its modified polyphenylene ether (mPPE) jacket provides durability and low specific gravity.
- Operational temperature range extends from -40°C to +80°C.
- The cable is halogen-free and fully recyclable for environmentally responsible applications.
- Nominal diameter is 3.4 mm with a jacket thickness of 0.38 mm for compact installation.
- The cable is compliant with UL, CSA, and CE standards ensuring industrial safety and reliability.
- Consists of 19 strands per conductor with a core strand size of 0.079 mm for flexibility and conductivity.
Product Description
Alpha Wire 78008 SL005 is a high-performance Ecogen Ecocable Mini Control Cable designed for industrial and automation applications. It features 8 cores of 0.09mm² (28 AWG) tinned copper wire conductors, unscreened, housed within a grey modified polyphenylene ether jacket, providing excellent electrical properties and mechanical resilience.
This control cable operates reliably in temperatures ranging from -40°C to +80°C, making it suitable for harsh environments. The mPPE insulation and jacket materials confer benefits such as low specific gravity, halogen-free properties, and full recyclability, aligning with modern environmental standards.
The cable’s construction includes 19 strands per conductor, each of 0.079 mm diameter, and a total nominal diameter of 3.4 mm which facilitates lightweight, space-saving installations in confined industrial settings. The jacket thickness is 0.38 mm, ensuring protection without excessive bulk.
Certified to UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, WEEE, and ISO 10993-5 standards, this cable meets rigorous demands for safety and performance. It is ideal for use in control systems, electronic circuits, telecommunication, automation, and studio equipment, and complies with NFPA 79 safety safeguards for industrial machinery.
The cable features tinned copper conductors for enhanced corrosion resistance. The mPPE insulation and jacket provide a durable and halogen-free solution. Rated for 300 V with a length of 30 m in each reel for flexible deployment.
Nominal diameter of 3.4 mm with a compact and lightweight design. Temperature range from -40°C to +80°C suitable for diverse environments. Meets multiple international standards ensuring application compliance. Composed of 19 strands per conductor enhancing flexibility and conductivity.
This Alpha Wire Ecogen cable series is optimized for industrial, electrical automation, telecommunications, laboratory, and manufacturing sectors where high cable quality and reliability are essential. Its 8-core design supports multiple signal or power pathways within a single jacket, reducing cable clutter and improving installation efficiency.
Discover more quality cables and Control Cable options in our Electrical & Automation Cables category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 80°C.
The nominal diameter of this cable is 3.4 mm.
This control cable features 8 cores.
The voltage rating for this cable is 300 V.
The conductors are made of tinned copper wire, and the jacket is made of modified polyphenylene ether (mPPE).
Yes, this cable is halogen-free, making it suitable for environmentally responsible applications.
The jacket thickness of this cable is 0.38 mm.
Each conductor consists of 19 strands.
This cable complies with UL, CSA, and CE standards, ensuring safety and reliability.
The cable is available in a length of 30 meters per reel.
The minimum operating temperature for this model is -40°C.
This cable is ideal for use in control systems, electronic circuits, telecommunication, automation, and studio equipment.
