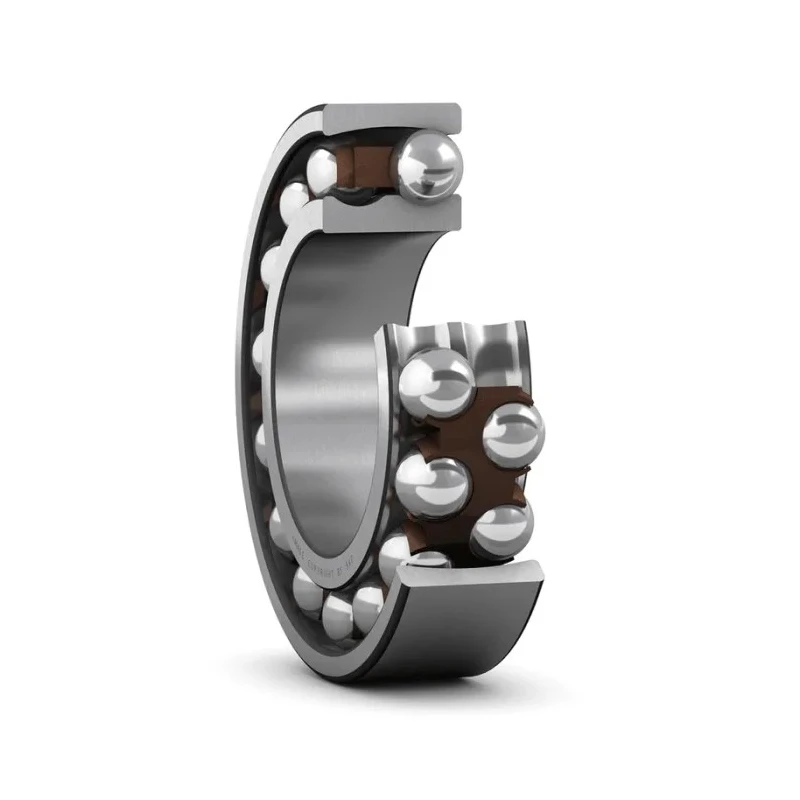

SKF Self-Aligning 2 Row Ball Bearing 45 mm ID 100 mm OD Race Width 36 mm Non-Metallic Cage Steel Balls Open End 2309 ETN9/C3

The SKF 2309 ETN9/C3 is a high-quality self-aligning ball bearing featuring two rows of steel balls designed to accommodate misalignment between the shaft and housing. It has a 45 mm inside diameter and a 100 mm outside diameter with a 36 mm race width, making it suitable for demanding rotary bearing applications in industrial and manufacturing environments.

Constructed with a non-metallic cage to reduce friction and wear, and an open end design to aid in lubrication and heat dissipation. This bearing offers a C3 internal clearance, allowing for thermal expansion and shaft deflection without performance loss, suited for dynamic industrial conditions.

The bearing is engineered with a parallel bore type ensuring accurate shaft fit and can safely operate at limiting speeds of up to 4500 rpm. With static and dynamic load ratings of 19.3 kN and 63.7 kN respectively, it provides robust load carrying capacity.

Self-aligning capability with two rows of balls allows this bearing to compensate for angular misalignment caused by shaft deflection, making it ideal for heavy-duty machinery, construction equipment, HVAC systems, manufacturing lines, and other industrial use cases requiring durability and reliability.

36 mm race width enhances load tolerance. Non-metallic cage reduces friction. Steel balls for long-term durability. Open end type improves lubrication flow. C3 internal clearance supports thermal expansion. Parallel bore design for precise shaft fitting.

Speed rating up to 4500 rpm. Static load rating 19.3 kN, dynamic load rating 63.7 kN. Manufactured in Malaysia ensuring consistent quality. Explore the wide range of SKF Ball Bearings at EnvMart for industrial and mechanical needs, ensuring precision and performance in your applications.
