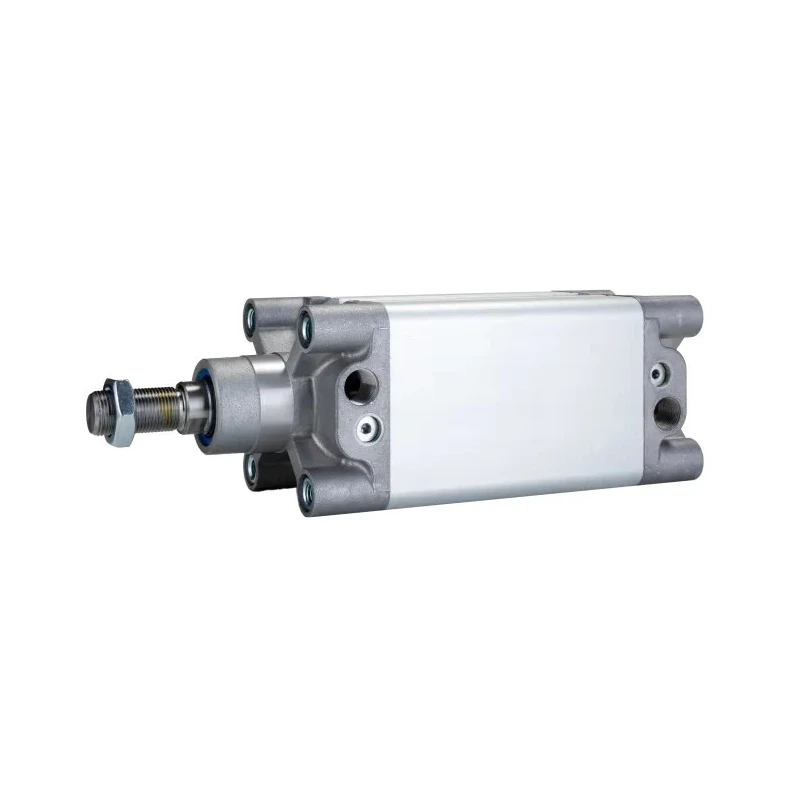

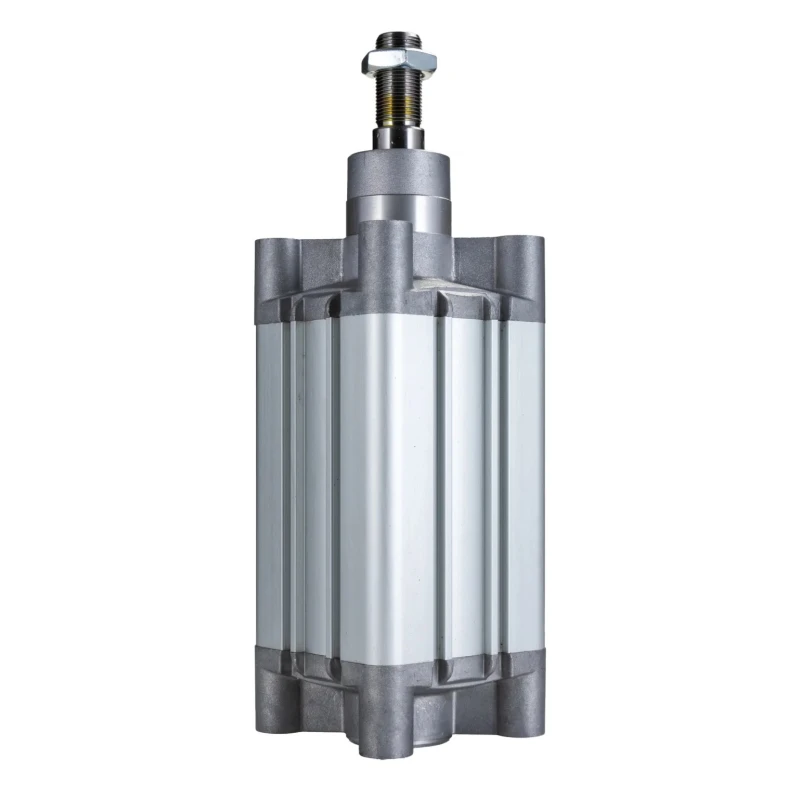

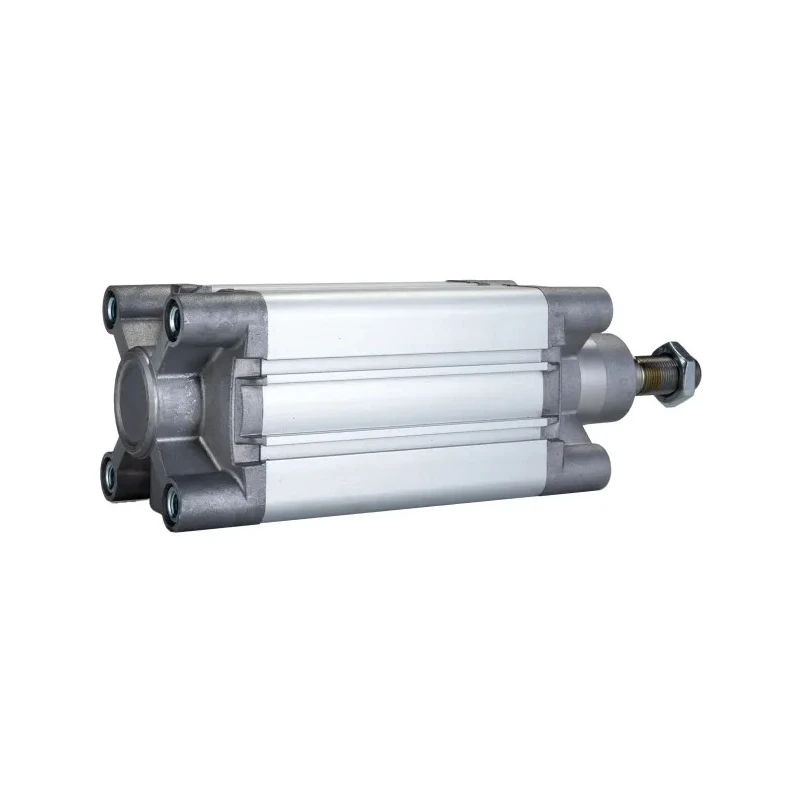

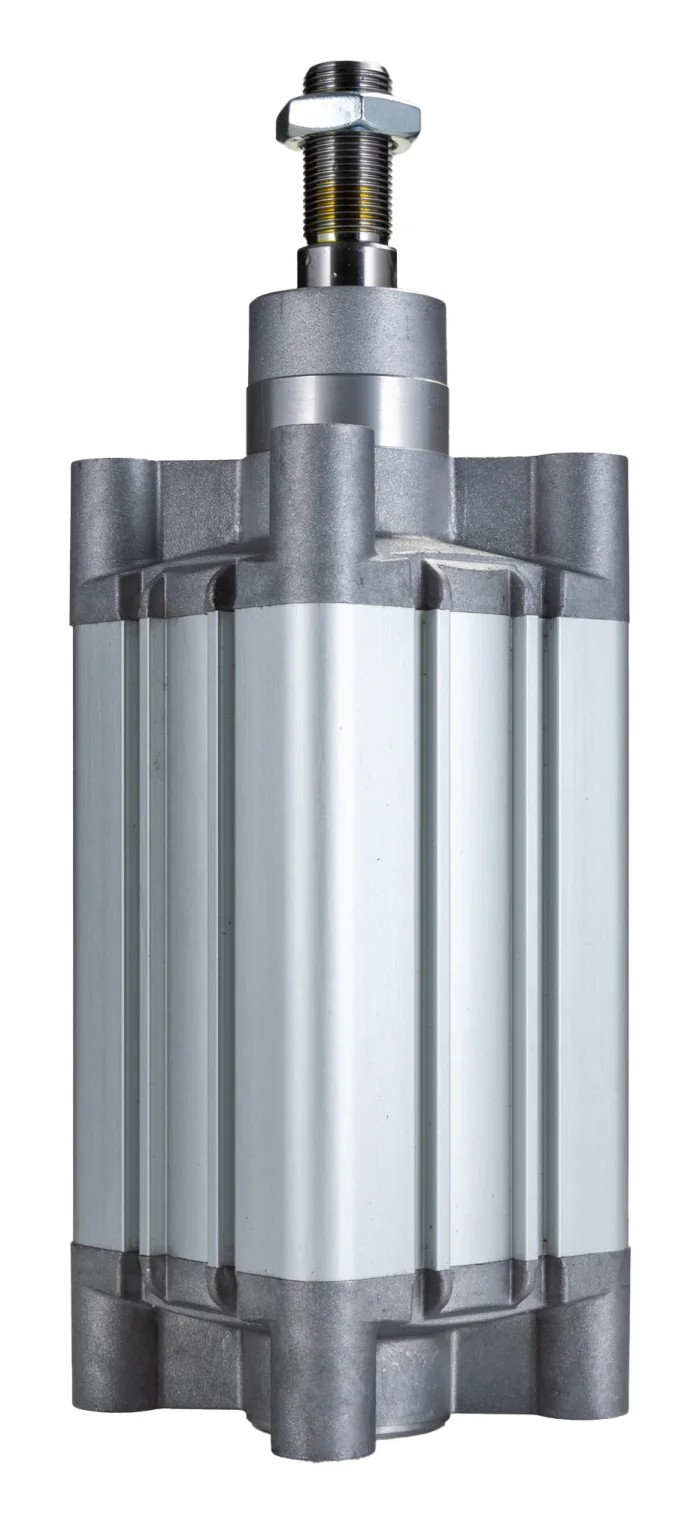

RS PRO Double Acting Pneumatic Cylinder 80mm Bore, 125mm Stroke, Stainless Steel Body, Cushioned with M20 Female 176-1669
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Height | 94mm |
| Length | 299mm |
| Model | 176-1669 |
| Width | 94mm |
| Mount Type | Both Ends Tapped |
| Series | RS PRO |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | 0°C |
| Stroke Length | 125mm |
| Bore Diameter | 80mm |
| Rod Type | Double |
| Action Type | Double Acting |
| Standards/Approvals | RS PRO Seal of Approval |
| Cushioning Type | Cushioned |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M20 |
| RS PRO 125 mm Pneumatic Piston Rod Cylinder - Double Acting ActingRS Stock No. | 711-572Brand: RS PRO |
| RS PRO Pneumatic Compact Cylinder - 80mm Bore, 125 mm Double Acting ActingBrand | RS PRO |
Key Features
- Double acting action type ensures efficient piston movement in both directions.
- Constructed with stainless steel body for corrosion resistance and long service life.
- Cushioned design reduces impact and noise at stroke ends for smoother operation.
- Both ends tapped mount type provides versatile installation options.
- M20 female threaded piston rod with metric thread standard for secure attachment.
- Integrated magnet enables external piston position sensing for automation feedback.
- Designed to operate within 0°C to 80°C temperature range and withstands up to 10 bar pressure.
- Compact dimensions of 299mm length, 94mm width, and 94mm height optimize space usage.
Product Description
RS PRO 176-1669 double acting pneumatic cylinder features an 80mm bore diameter and a 125mm stroke length, manufactured with a robust stainless steel body ensuring corrosion resistance and durability for industrial use. This cylinder converts compressed air energy into smooth mechanical motion with precise control for demanding automation applications.
The actuator's double acting functionality allows piston movement in both directions powered by air pressure, enhancing operational efficiency. Cushioning at stroke ends reduces impact and operational noise, extending the service life and providing smoother transitions. The integrated magnet permits external sensors to detect piston position, enabling reliable feedback in control systems.
Mounted by both ends with tapped holes, installation is flexible and secure. The piston rod is double type with a female M20 metric thread, matching common industrial fittings. Operating temperature is rated between 0°C and 80°C, withstanding maximum pressures up to 10 bar, suitable for varied pneumatic setups.
Compact dimensions of 299mm length, and 94mm square cross section make it ideal for installation in constrained industrial environments without sacrificing performance. This actuator is often utilized in manufacturing lines, robotics, and other industrial automation systems requiring accurate pneumatic actuation.
Double acting cylinder design for bi-directional piston motion. Durable stainless steel body for corrosion resistance. Cushioned to reduce impact and noise during operation. Both ends tapped mount type for versatile installation.
Integrated magnet for piston position sensing in automation. M20 female threaded piston rod, metric standard. Operating temperature range 0°C to 80°C. Maximum operating pressure of 10 bar. Compact dimensions: 299mm length, 94mm width and height.
This cylinder is engineered for high precision and reliability in industrial pneumatic applications including assembly lines, robotic actuation, and automated process controls. The RS PRO quality seal assures compliance and industrial-grade performance.
Explore more pneumatic cylinders and actuators from RS PRO in the Industrial Tools & Equipment category at EnvMart.
Explore more products in our Pneumatic Cylinder & Actuator category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 80mm.
It can withstand a maximum operating pressure of 10 bar.
The stroke length is 125mm.
The body is constructed from stainless steel, ensuring corrosion resistance.
It operates within a temperature range of 0°C to 80°C.
The piston rod is a double type with a female M20 metric thread.
It features a cushioned design that reduces impact and noise at stroke ends.
The dimensions are 299mm in length, and 94mm in both width and height.
It supports both ends tapped mounting, allowing for versatile installation options.
This model is suitable for industrial automation applications, including manufacturing lines and robotics.
The integrated magnet allows for external sensors to detect the piston position, enabling automation feedback.
It carries the RS PRO Seal of Approval, indicating compliance with industrial standards.
