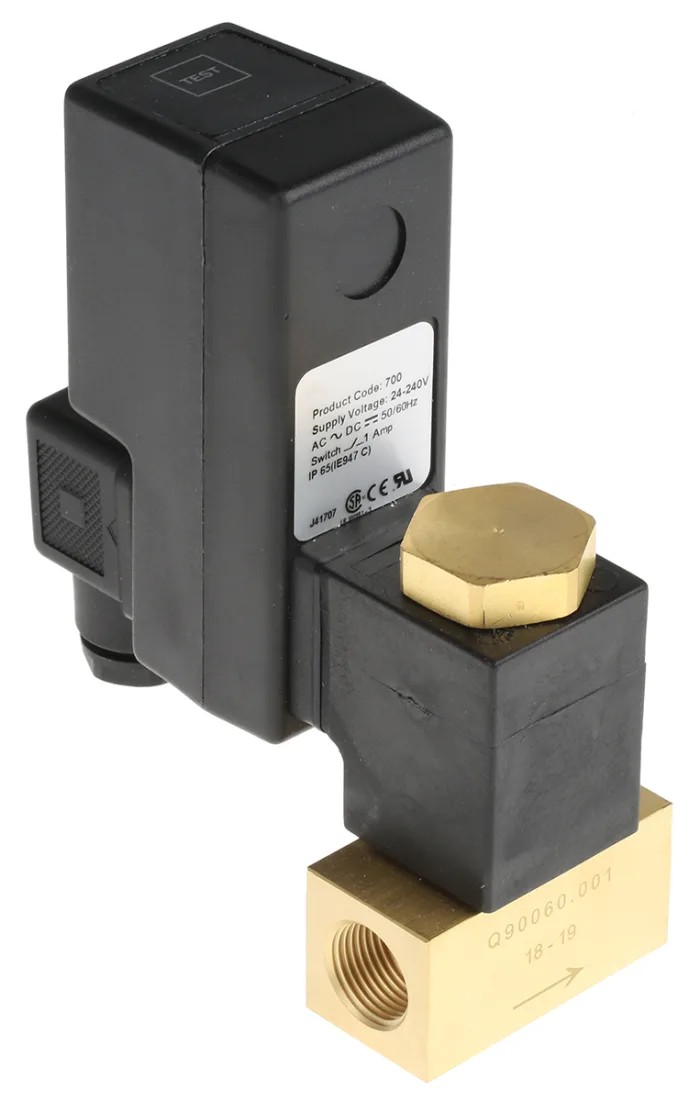

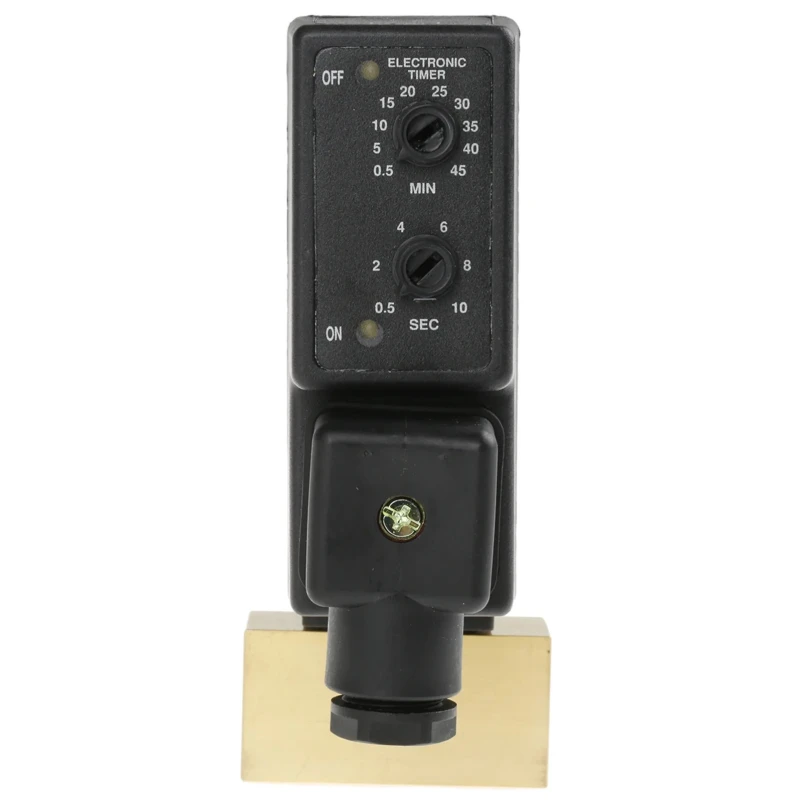

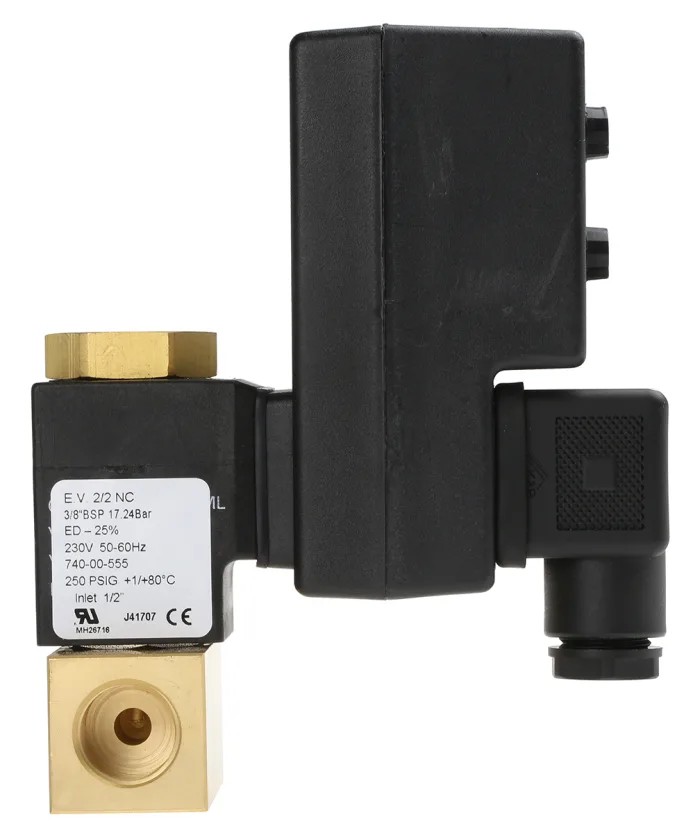

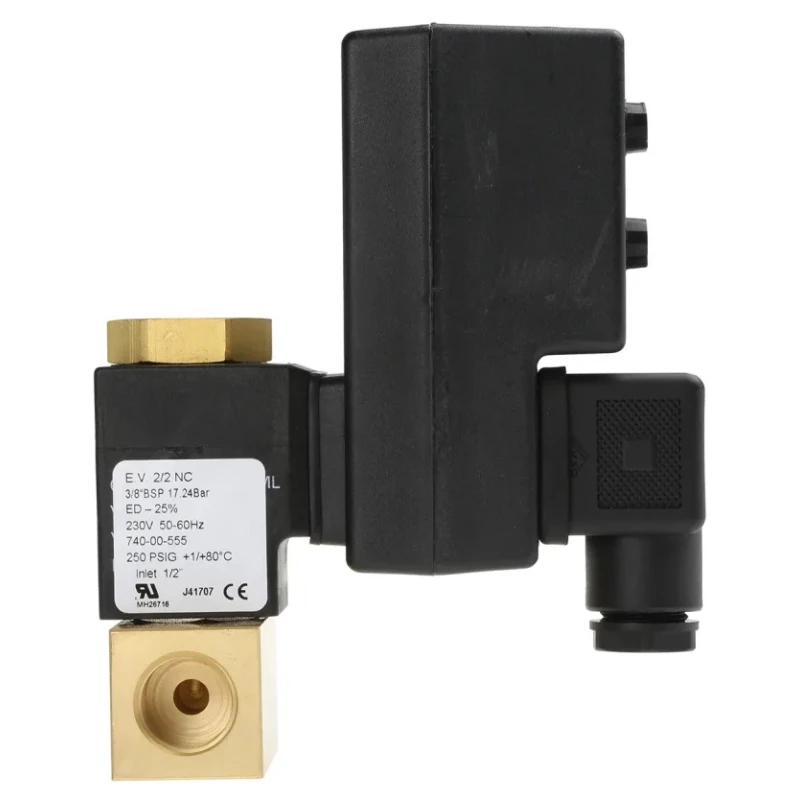

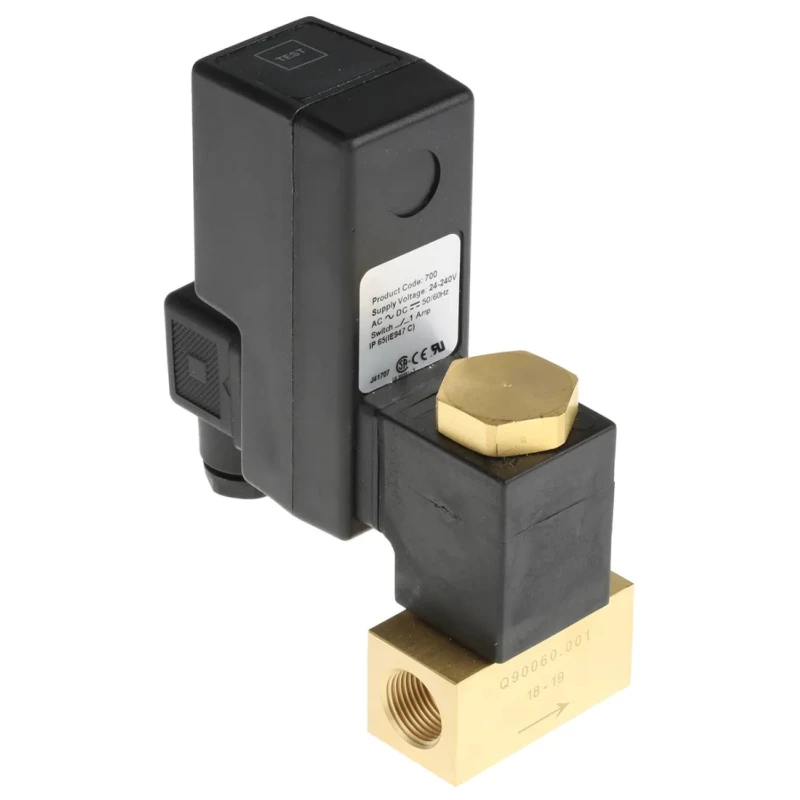

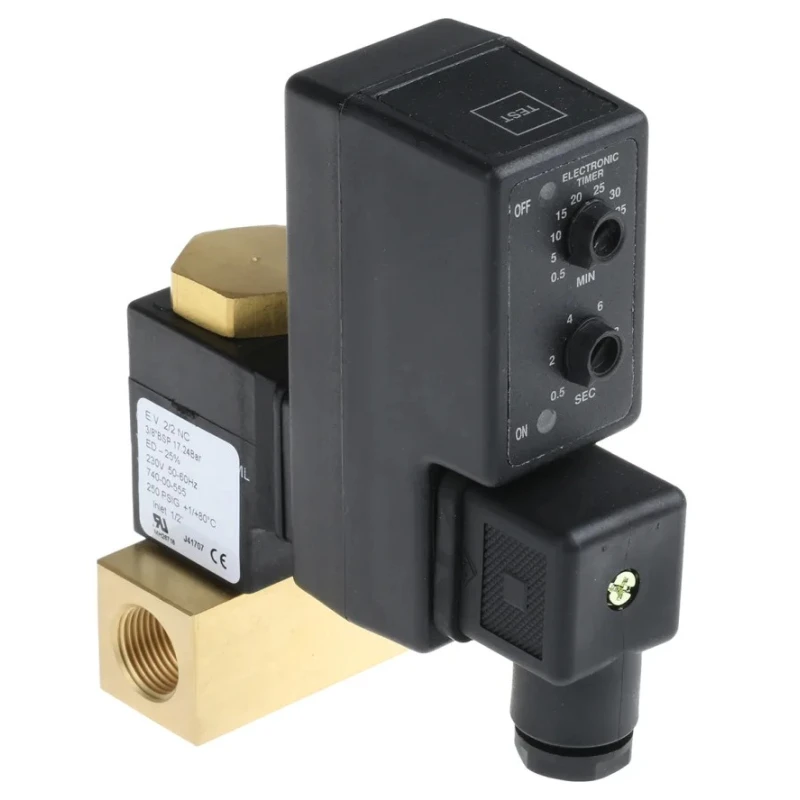

RS PRO Automatic Condensate Drain R 3/8 in Brass Body Nitrile Rubber Seal IP65 240V 50Hz 725-125

RS PRO 725-125 automatic condensate drain is designed for efficient and reliable removal of condensate from compressed air systems without loss of compressed air. Featuring a brass body and nitrile rubber (NBR) seal, this automatic drain valve ensures durability and resistance to typical industrial fluids such as air, gases, water, and oils.

The valve is programmable with adjustable open and discharge times, allowing precise control to meet pneumatic installation requirements. It automatically drains condensation from filter bowls, separators, receivers, and other pneumatic components, minimizing risk of internal blockages due to enhanced internal tolerances.

Its timer and solenoid are protected with an IP65 rating, providing resistance against dust and water ingress, ensuring dependable operation in industrial environments. The built-in LED indicator allows operators to monitor status easily, and a manual override test facility enhances maintenance convenience.

Operating temperature ranges from -20 to +40 °C ambient for the timer/solenoid, -10 to +50 °C for valve ambient, and -10 to +80 °C for valve fluid, accommodating diverse industrial conditions. The product is certified to meet the EN 61340-5-1:2007 standard and is manufactured in Ireland, emphasizing quality and compliance.

This automatic condensate drain is integral to maintaining optimal compressed air system performance by preventing moisture-related damage, including corrosion, reduced equipment lifespan, and quality issues in processes that require dry air. Typical applications include pneumatic systems in manufacturing, HVAC, fluid power, and mechanical industries.

Automatically drains condensation with precise self-activated fluid control. Adjustable timing for open time and discharge intervals. Durable brass body and nitrile rubber seal material. IP65 rated timer and solenoid protection.

LED status indicator with manual override test facility. Wide operating temperature range for versatile deployment. Certified to EN 61340-5-1:2007 standard. Compact size with R 3/8 in inlet port thread size. Manufactured in Ireland ensuring high-quality standards.

3 years warranty covering manufacturing defects and performance. Explore our extensive range of Pneumatic Air Preparation and condensate drain solutions at EnvMart to enhance your compressed air system efficiency and reliability.
