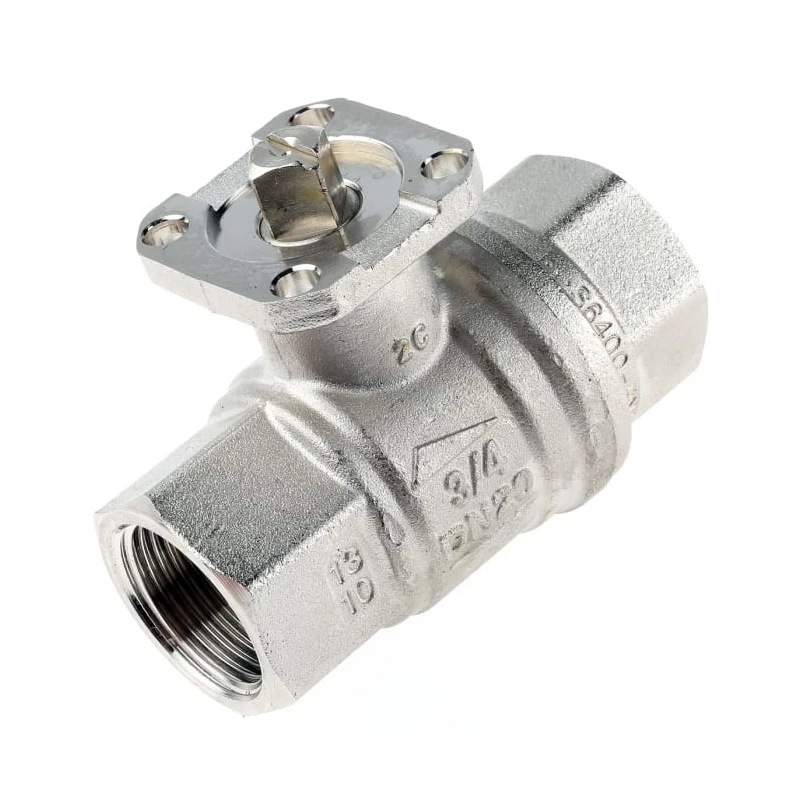

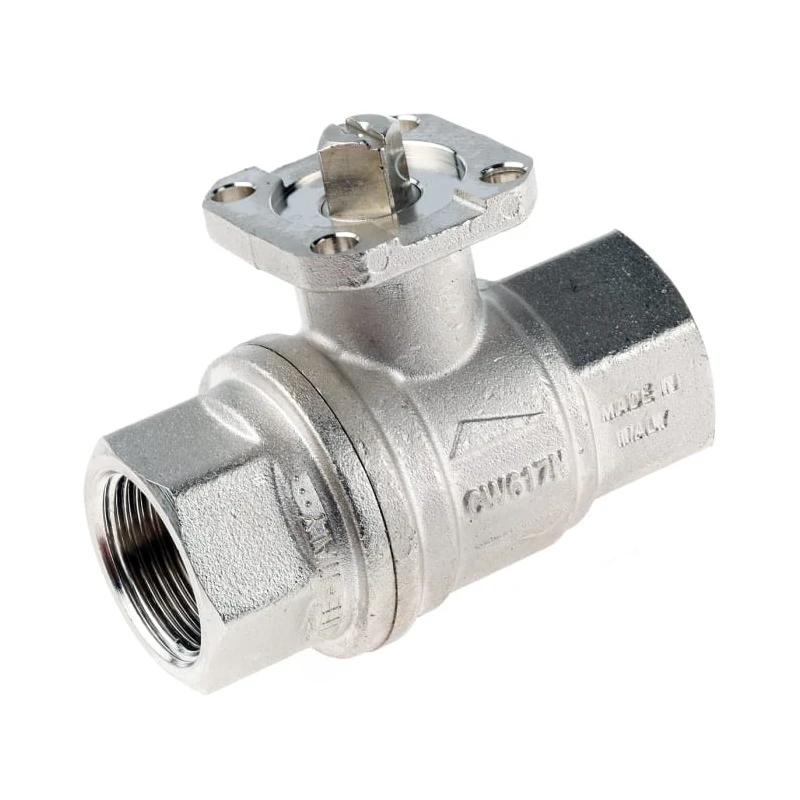

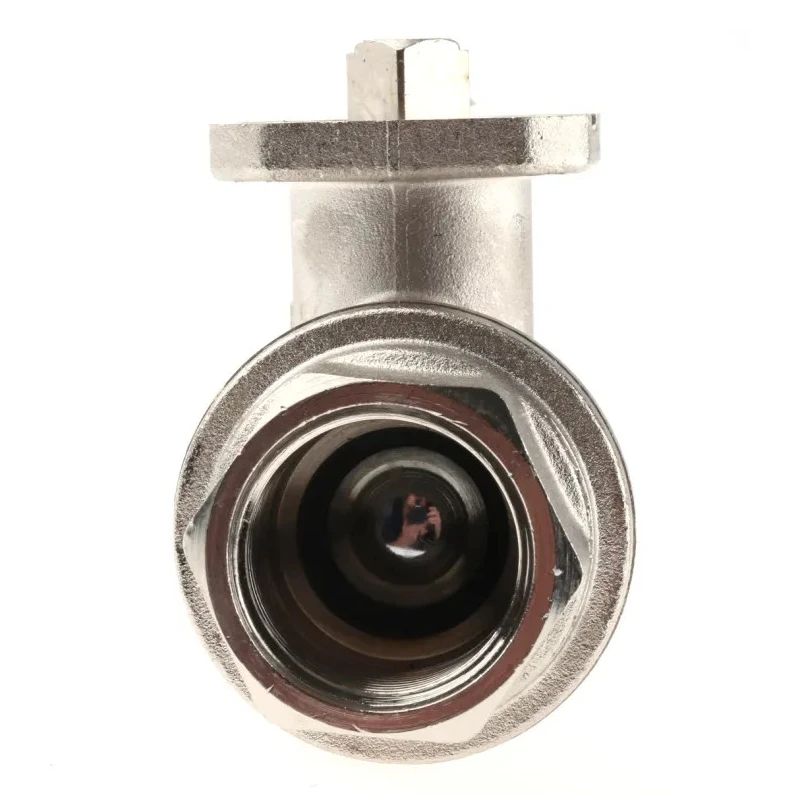

RS PRO Brass Threaded 2-Way Full Port Ball Valve 3/4 in, 40 bar, Female Threaded Connections 812-5239

RS PRO 812-5239 Brass Threaded Ball Valve is a robust 2-way, full port valve constructed from premium brass material, engineered for industrial fluid control applications. The valve supports threaded female inlet and outlet connections, both sized at 3/4 inch, facilitating flexible pipeline integration in diverse systems. Designed to operate reliably within a temperature range of -20°C to 170°C and withstand a maximum operating pressure of 40 bar, it meets the stringent requirements of air, water, and industrial fluid flow management.

The valve's internal ball component is chrome plated for longevity, paired with pure PTFE self-lubricating flexible lip seats that automatically compensate for wear, ensuring a leak-proof seal throughout its operational life. The nickel plated brass stem is blowout-proof and equipped with two FPM O-rings maximizing stem safety and preventing fluid leakage. Its dual sealing design allows operation in either direction, simplifying installation.

Certified under DIN 3337, EN 12164, EN 12165, DIN 3357, EN 10226-1, ISO 228, RoHS, ISO 5211, GOST-R (Russia), Water Regulations Advisory Scheme (UK), and EAC standards, the valve assures compliance with global quality and safety norms. The ISO 5211 actuator mounting pad permits direct mounting of electric and pneumatic actuators without the need for additional brackets or couplings, enhancing automation capabilities.

This product is 100% made in Italy, featuring hot forged, sand blasted, and nickel plated brass body and cap sealed with thread sealants for durability. The valve undergoes 24-hour seal testing guaranteeing operational integrity. It is ideal for industrial, laboratory, HVAC, manufacturing, water treatment, and agricultural fluid control systems requiring reliable flow regulation.

Package contains the RS PRO 812-5239 Brass Threaded Ball Valve with documented specification and certificates ensuring quality. Explore more industrial valves and fittings to find complementary components for your application on EnvMart.

Constructed with high-quality brass body for corrosion resistance. Threaded female inlet and outlet connections sized at 3/4 inch for secure pipeline integration. Full port design ensures maximum flow capacity without pressure drop.

Features blowout-proof nickel plated brass stem and dual FPM O-rings for enhanced safety. Pure PTFE self-lubricating flexible lip ball seats provide wear compensation and tight sealing. Certified to comply with multiple international standards including DIN 3337, EN 12164, and ISO 5211.

Suitable for industrial, water, air, and fluid power applications. ISO 5211 actuator mounting pad allows direct electric and pneumatic actuator attachment. Discover a broad selection of industrial valves and accessories in the EnvMart Industrial Valves category for professional and commercial fluid management solutions.
