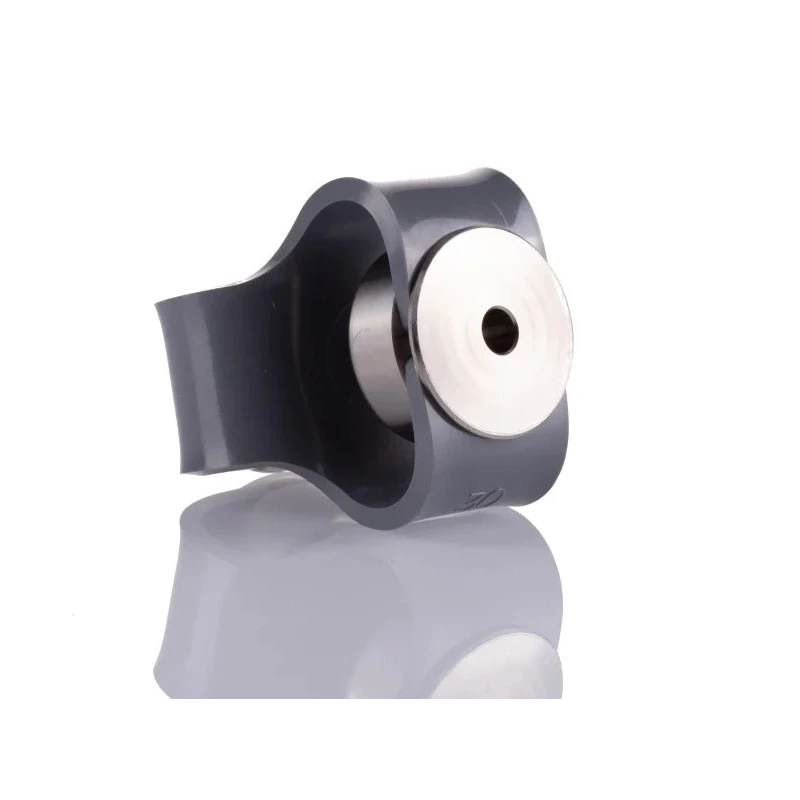

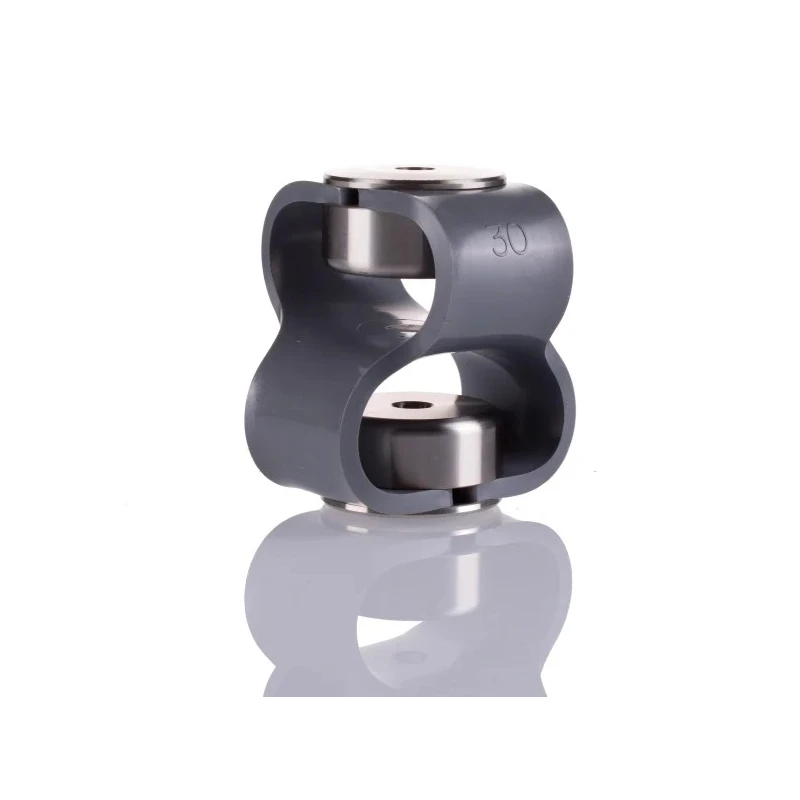

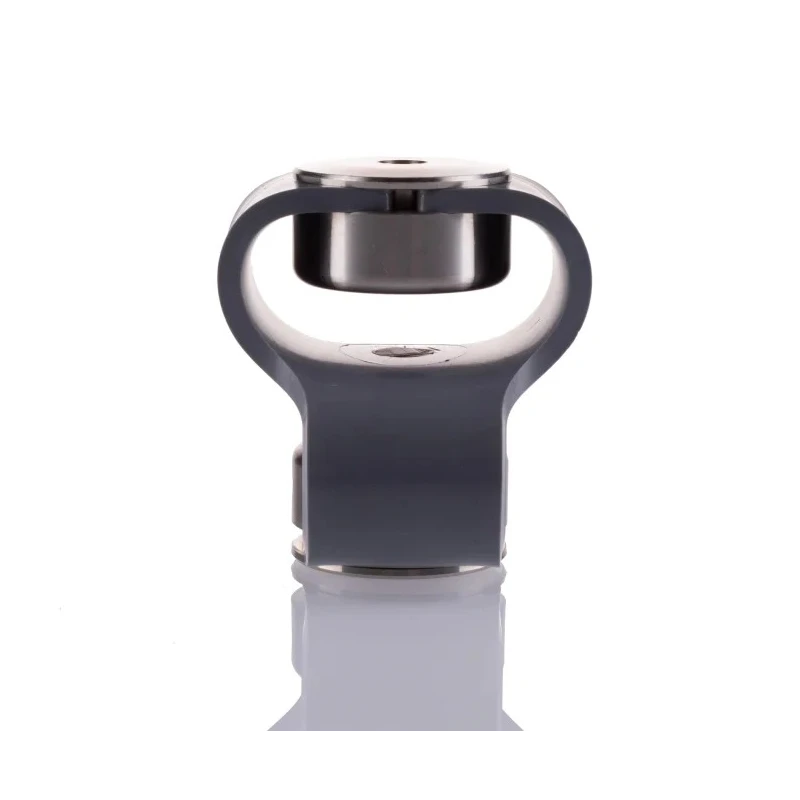

Huco Flexible Coupler 54 mm Diameter, 56 mm Length, 6 mm Bore A and B, Steel, Set Screw Style, Model 047.30.2222.RS

The Huco 047.30.2222.RS model is a high-quality flexible coupler designed to accommodate radial, angular, and axial shaft misalignments in various industrial mechanical power transmission applications. Constructed with stainless steel hubs, it provides excellent corrosion resistance for durability even in challenging environments.

Its Hytrel polyester elastomer flex element delivers both strength and chemical resistance, allowing reliable operation at speeds up to 3000 rpm and torque up to 5 Nm. The set screw style fitting ensures straightforward installation and firm attachment to shafts.

With precise bore sizes of 6 mm on both sides and an overall diameter of 54 mm, this coupler is well-suited for compact mechanical assemblies. It effectively compensates for angular misalignments up to 15 degrees and axial offsets up to 8.5 mm while maintaining performance between -40°C and 100°C.

Manufactured under the Flex-P series and compliant with RoHS standards, it ensures adherence to environmental safety regulations. This flexible coupler is ideal for industrial machinery requiring reliable shaft coupling, including manufacturing equipment, water treatment systems, and HVAC machinery.

Corrosion resistant stainless steel hubs for extended service life. Hytrel elastomer provides strength and heat resistance. Set screw style offers simple installation and secure fit. Operates reliably up to 3000 rpm with 5 Nm torque.

Compatible with shaft bore sizes of 6 mm on both ends. Handles misalignment up to 15° angular and 8.5 mm axial. Wide operating temperature range of -40°C to 100°C. Environmentally compliant with RoHS standards.
