Schneider Electric Harmony XB5 Series Blue Spring Return Push Button Head 22 mm Cutout IP69K IP67 IP66 ZB5AA6

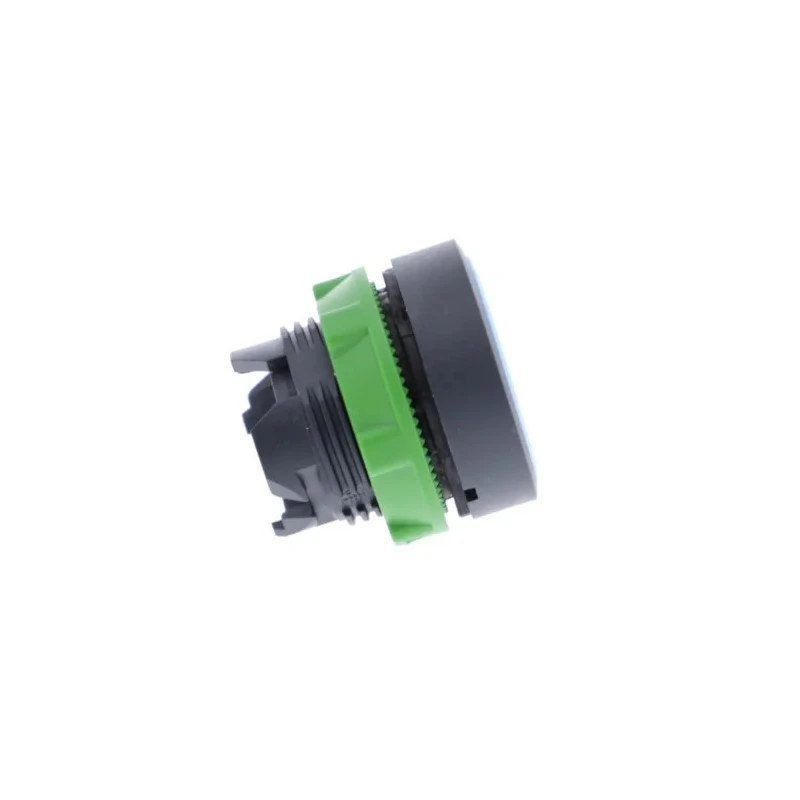

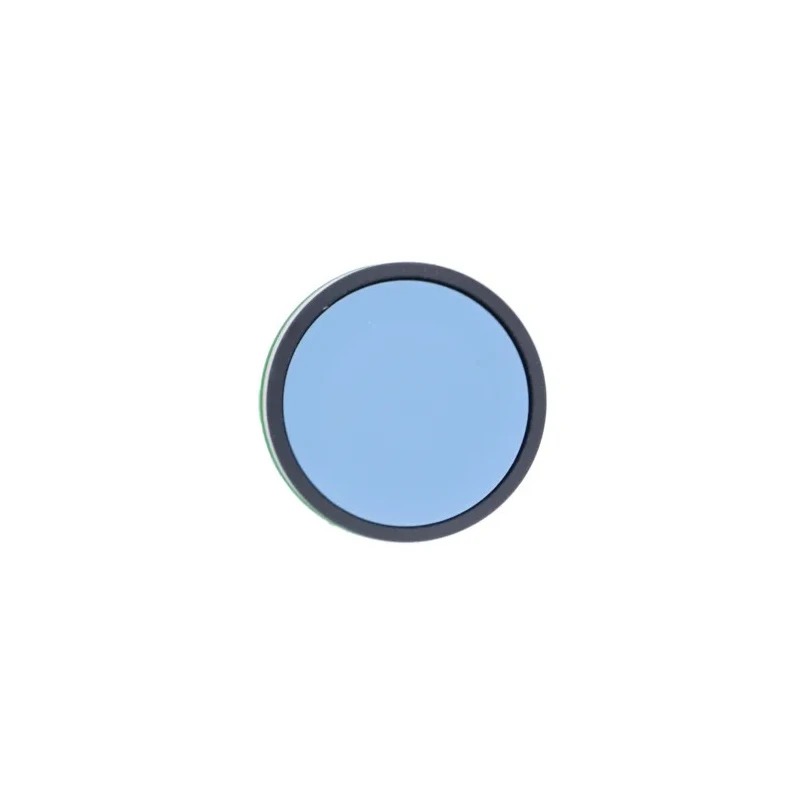

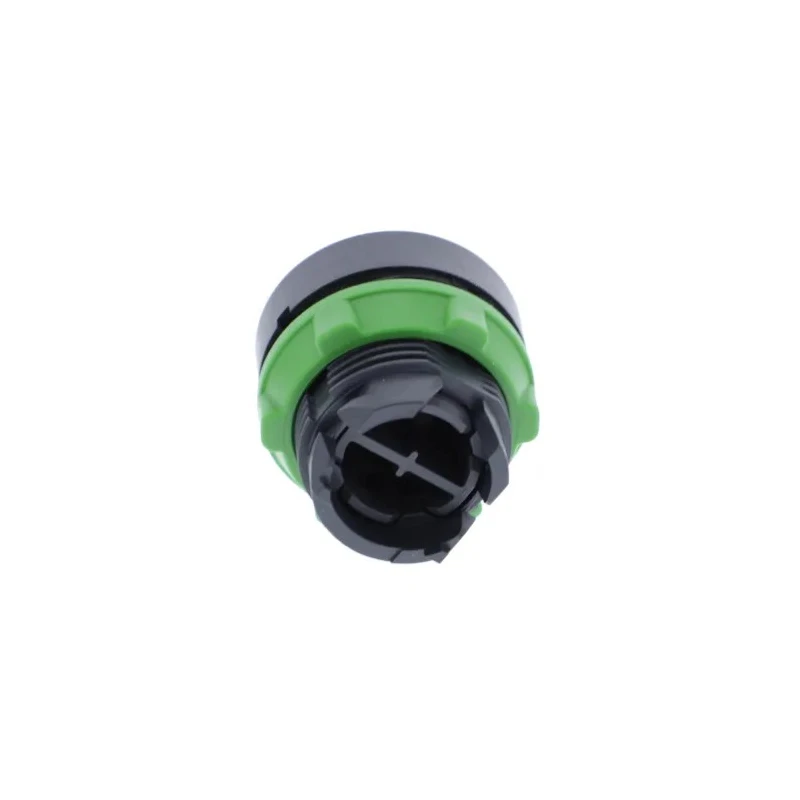

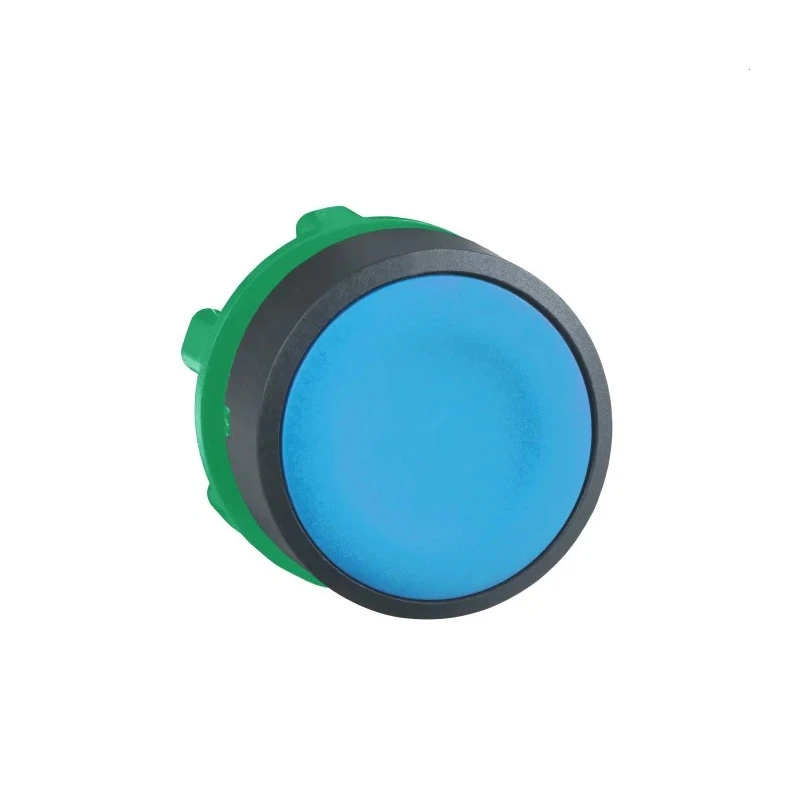

Schneider Electric ZB5AA6, part of the Harmony XB5 Series, is a blue spring return push button head designed for industrial and automation control panels. This push button head features a 22 mm cutout diameter and a compact 28.5 mm round button shape, making it suitable for standard panel mounting.

Constructed with durable plastic material, the button head ensures long-lasting performance in demanding environments. It holds an ingress protection rating of IP69K, IP67, and IP66, offering superior resistance against dust, water jets, and high-pressure cleaning methods up to 7,000,000 Pa. This makes it ideal for applications requiring stringent hygiene standards and robust environmental protection.

The spring return mechanism provides reliable actuation and quick resetting for repetitive industrial processes. It supports a mechanical durability of 10 million cycles, enhancing operational longevity.

This push button head is compatible with screw clamp terminals for straightforward electrical connections and conforms to standards including UL 508, EN/IEC 60947 series, CSA C22.2 No 14, and JIS certifications. It is not certified for hazardous areas but is manufactured in France to high-quality standards.

Applications include control of machinery in manufacturing, electrical system interfaces requiring dependable engagement, and environments demanding high ingress protection such as food processing or pharmaceutical industries.

Round push button head with a 28.5 mm diameter for standard cutouts. Spring return actuation ensures quick reset after operation. Constructed from durable plastic material for longevity. Designed for use in harsh environments with IP69K, IP67, and IP66 protection ratings.

Compatible with control panels and industrial automation systems. Mechanical durability rated up to 10 million cycles for extended use. Temperature tolerance from -40°C to +70°C for versatile applications. Screw clamp terminal design allows for easy electrical connections.
