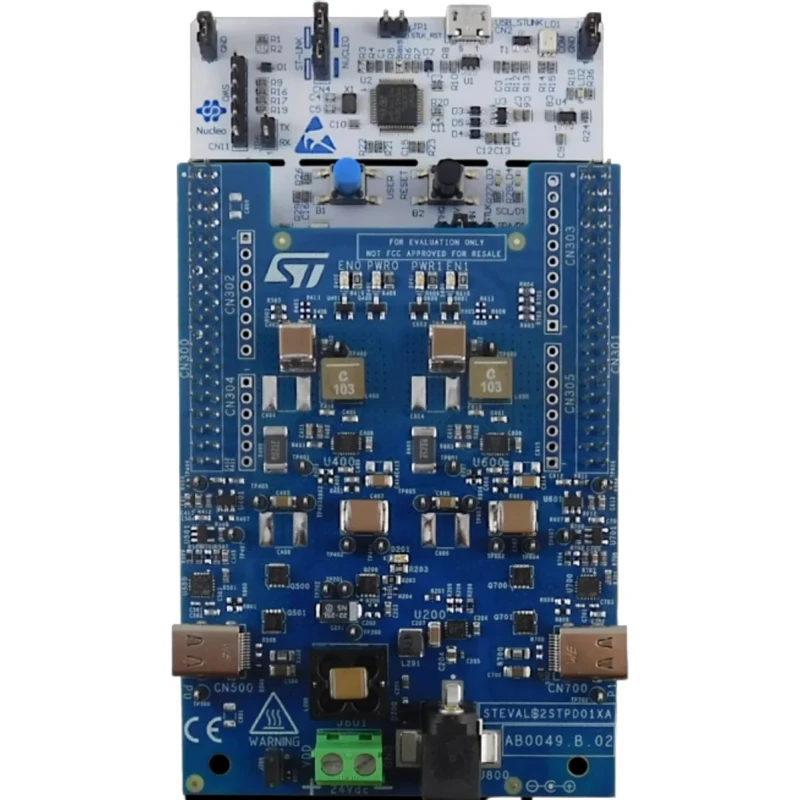

STMicroelectronics USB Type C Power Delivery Evaluation Board for NUCLEO-G071RB STM32 STEVAL-2STPD01

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics USB Type C Power Delivery Evaluation Board for NUCLEO-G071RB STM32 STEVAL-2STPD01

Name: STMicroelectronics USB Type C Power Delivery Evaluation Board for NUCLEO-G071RB STM32 STEVAL-2STPD01
Brand: STMicroelectronics
SKU: 391928
Price: 249.08 USD
Availability: InStock



Category Evaluation Board Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	STEVAL-2STPD01
Interfaces	USB type-C and power delivery source ports
For Use With	NUCLEO-G071RB STM32 Development Board
Kit Classification	Evaluation Board
Featured Device	STM32G071RBT6, STPD01PUR
Kit Name	USB Type C Power Delivery Eval Board

Key Features

Features two USB Type-C ports with power delivery source capability.
Integrates STPD01PUR programmable buck converters controlled via I²C interface.
Supports up to four output Power Data Objects (PDOs) per port for flexible power profiles.
Includes over-voltage, under-voltage, over-current, short-circuit and over-temperature protections.
Complies fully with USB Type-C 2.1 and Power Delivery 3.1 specifications.
Provides system-level ESD protection on CC lines meeting IEC61000-4-2 level 4.
Designed to be used with the STM32G071RBT6 microcontroller featuring UCPD peripheral and dedicated firmware stack.

Product Description

STMicroelectronics STEVAL-2STPD01 is a USB Type C Power Delivery Evaluation Board designed for the NUCLEO-G071RB STM32 development board. This high-quality evaluation kit features two USB Type-C ports equipped with STPD01PUR programmable buck converters which are controlled through an I²C interface. It leverages the STM32G071RBT6 microcontroller’s UCPD peripheral and a dedicated firmware stack to implement a dual-port source adapter with intelligent power sharing capabilities.

The board supports up to four output Power Data Objects (PDOs) for each port, allowing versatile power delivery profiles in compliance with USB Type-C 2.1 and Power Delivery 3.1 standards. The design incorporates multiple protective features including over-voltage protection (OVP), under-voltage protection (UVP), over-current protection (OCP), short-circuit protection, and over-temperature protection (OTP) to ensure safe operation under diverse conditions.

System-level electrostatic discharge (ESD) protection is provided on the Configuration Channel (CC) lines to IEC61000-4-2 level 4, safeguarding sensitive components during handling and operation. Its application scope spans industrial, laboratory, and development environments requiring robust USB power delivery solutions, particularly in embedded system prototyping and power management evaluation.

Two USB Type-C and Power Delivery source ports integrated on a single expansion board. Programmable STPD01PUR buck converters controlled via I²C interface enabling flexible power management. Four configurable output PDOs per port to support multiple power profiles.

Comprehensive protections: OVP, UVP, OCP, short-circuit, and OTP for reliable and safe operation. Compliance with USB Type-C 2.1 and Power Delivery 3.1 for industry-standard interoperability. System-level ESD protection according to IEC61000-4-2 level 4 on CC lines.

Designed for use with STM32G071RBT6 microcontroller and its UCPD peripheral.

The STMicroelectronics STEVAL-2STPD01 evaluation kit is ideal for development engineers and embedded systems designers seeking to validate power delivery features, conduct experimental power management testing, or integrate USB Type-C power capabilities in their products. It enables efficient prototyping with advanced programmable buck converter control, making it well suited for automotive, industrial, and consumer electronic applications.

Explore more Evaluation Boards and development kits from STMicroelectronics to complement your embedded design workflow and accelerate product development at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This evaluation board features two USB Type-C ports with power delivery source capability, integrates STPD01PUR programmable buck converters controlled via an I²C interface, and supports up to four output Power Data Objects (PDOs) per port for flexible power profiles. It also includes multiple protective features such as over-voltage, under-voltage, over-current, short-circuit, and over-temperature protections.

It is designed for use with the NUCLEO-G071RB STM32 development board, specifically featuring the STM32G071RBT6 microcontroller.

The STEVAL-2STPD01 supports USB Type-C and power delivery source ports as its primary interfaces.

The board includes over-voltage protection (OVP), under-voltage protection (UVP), over-current protection (OCP), short-circuit protection, and over-temperature protection (OTP) to ensure safe operation.

This evaluation board complies fully with USB Type-C 2.1 and Power Delivery 3.1 specifications, ensuring industry-standard interoperability.

Each port on the evaluation board can support up to four output Power Data Objects (PDOs), allowing for versatile power delivery profiles.

The country of origin for this evaluation board is India.

This evaluation board is suitable for applications in industrial, laboratory, and development environments, particularly for embedded system prototyping and power management evaluation.

The I²C interface is used to control the programmable STPD01PUR buck converters, enabling flexible power management capabilities.
