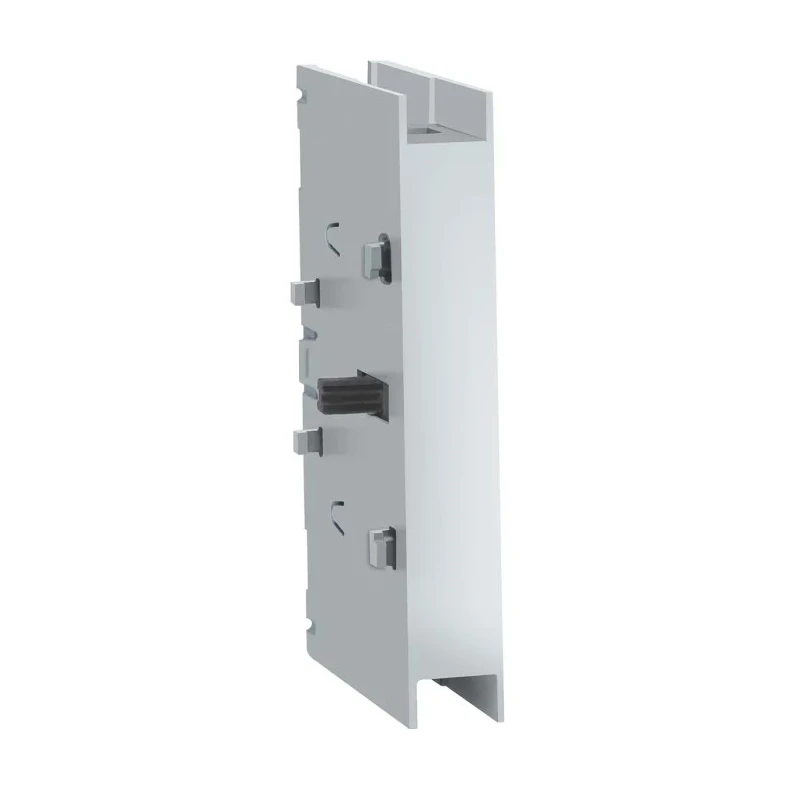

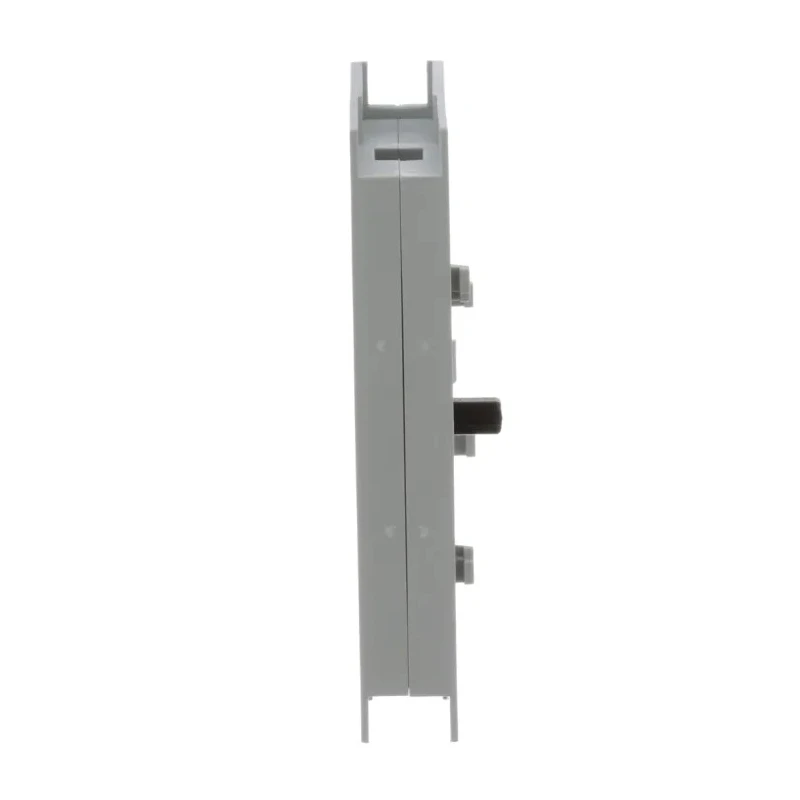

Schneider Electric Switch Disconnector Auxiliary Switch TeSys VLS Series, Additional Pole, IP20, 78mm x 12mm x VLS1P040D1S

Schneider Electric VLS1P040D1S Switch Disconnector Auxiliary Switch is part of the TeSys VLS Series designed to extend functionality of low voltage disconnect switches used in control systems. This additional pole accessory offers a 40 A current capacity and is primarily intended to be mounted on door-mounted disconnect switches, providing an auxiliary switching capability with one normally open contact.

The device features a compact form factor with dimensions of 78 mm (height), 12 mm (width), and 43.6 mm (depth) making it suitable for tight panel spaces. It carries an IP20 ingress protection rating ensuring protection against solid objects, suitable for industrial indoor environments.

This auxiliary switch is UL508 and UL98 rated according to the switch it complements, and is cULus Listed in compliance with North American safety standards. Its operation voltage is rated up to 600 Vac at 50/60 Hz, widely applicable for industrial electrical systems.

Mounting flexibility allows it to be installed either on the right or left side of compatible VLS door mount switches such as VLS3P016R1, VLS3P025R1, VLS3P032R1, and VLS3P040R1, enhancing the versatility of the control panel design.

The screw clamp terminals accommodate wire gauges from 18 AWG up to 6 AWG, ensuring secure and efficient electrical connections. The product meets IEC 60947-3 requirements pertaining to switch disconnectors, providing assurance of quality and compliance in demanding industrial applications.

This switch disconnector auxiliary contact is widely used in industrial sectors including material handling, HVAC systems, pumping stations, solar energy installations, and mining operations, providing reliable auxiliary switching capabilities for various control and safety functions.

Package contains 1 Schneider Electric VLS1P040D1S Switch Disconnector Auxiliary Switch module. Explore more electrical components and switch disconnectors in the Schneider Electric product range at EnvMart. This additional pole is suitable for door-mounted disconnect switches providing a 40 A current rating and is IP20 rated.

Compact dimensions of 78mm height, 12mm width, and 43.6mm depth allow easy integration in control panels. It features one normally open (NO) contact for auxiliary function and is UL and cULus listed. Constructed for industrial applications such as HVAC, material handling, pumping, solar energy, and mining industries.

Compatible with VLS3P016R1, VLS3P025R1, VLS3P032R1, and VLS3P040R1 door mount switches with mounting flexibility on right or left side. Operational voltage rating up to 600 Vac at 50/60 Hz ensures robust performance under electrical stresses.

Screw clamp terminals accept wire sizes from 18 AWG to 6 AWG for reliable connections. Designed to meet IEC 60947-3 standards, ensuring safety and regulatory compliance.
