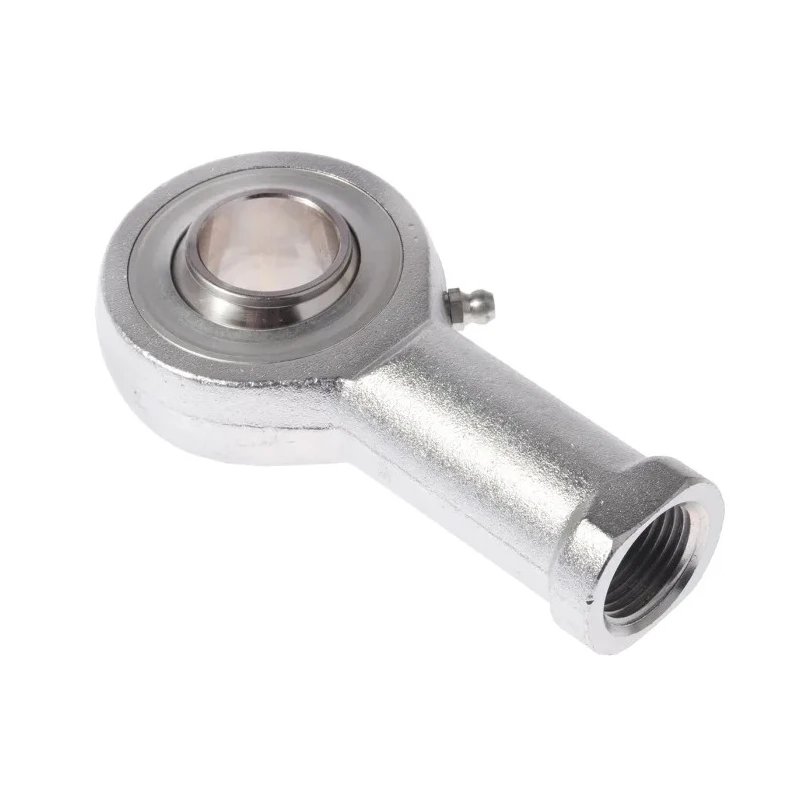

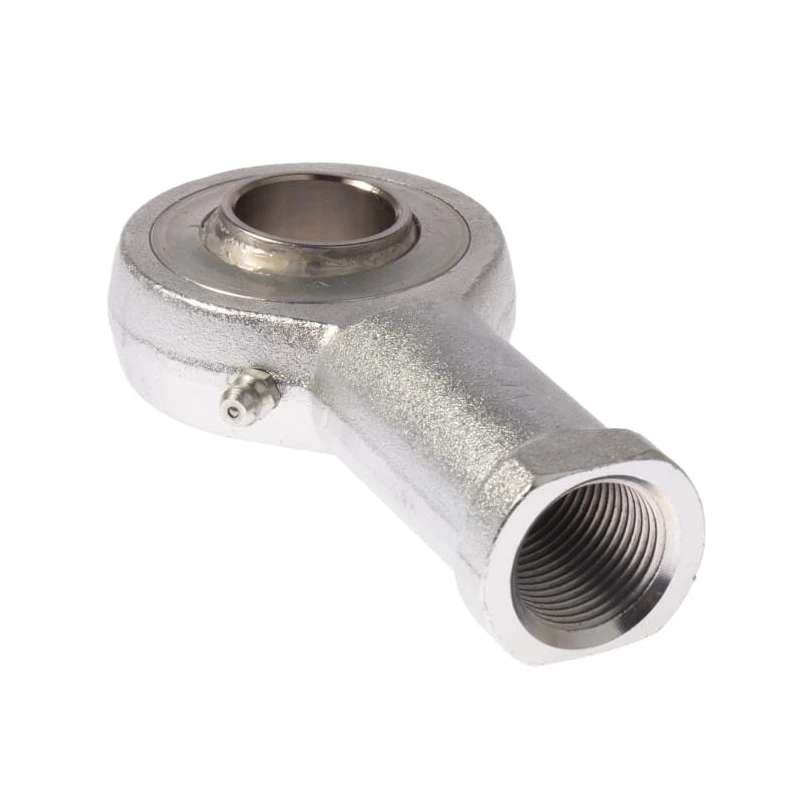

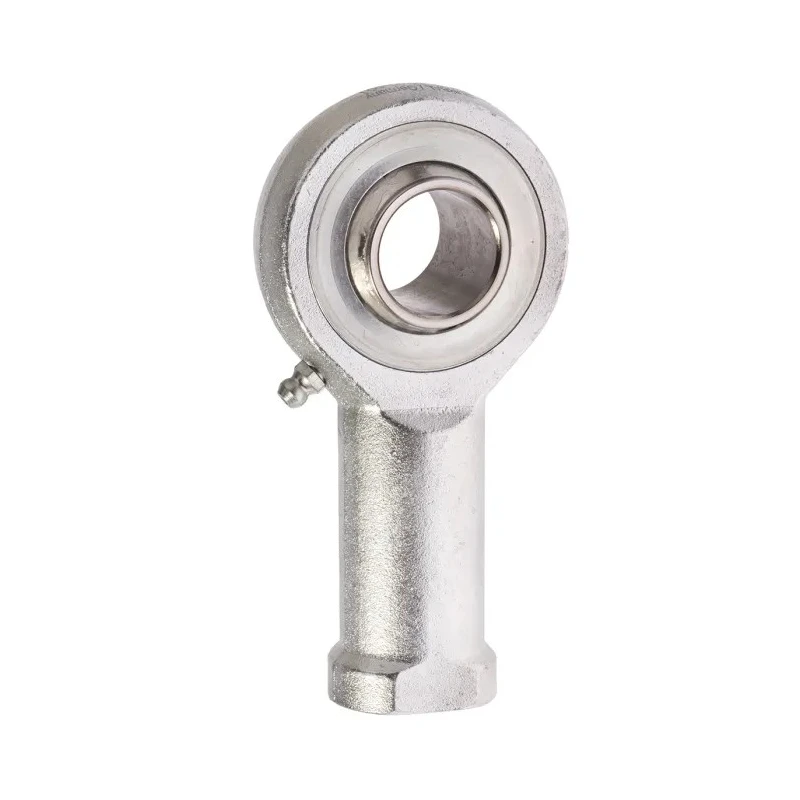

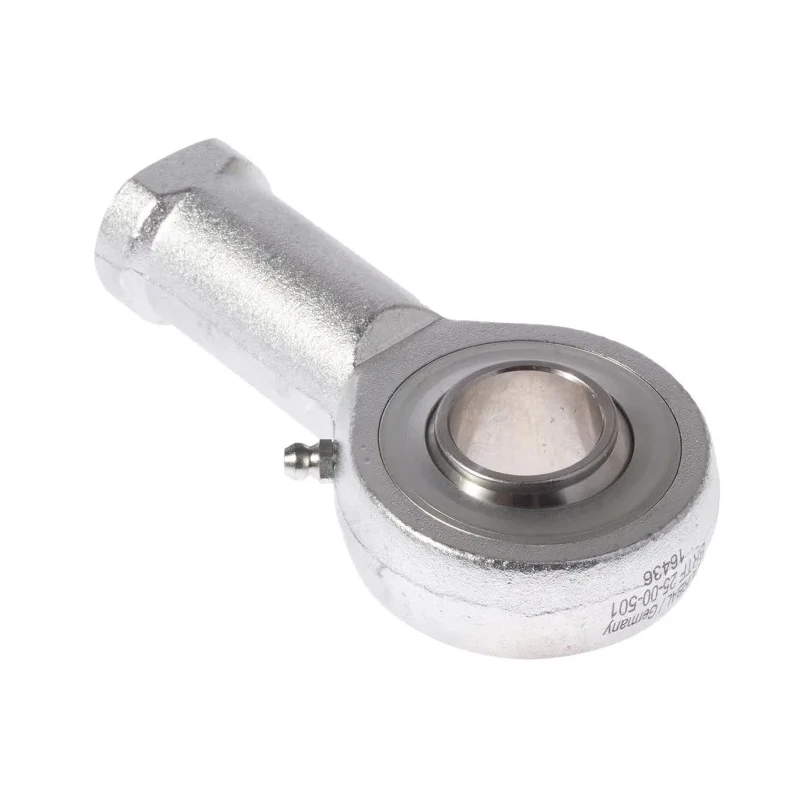

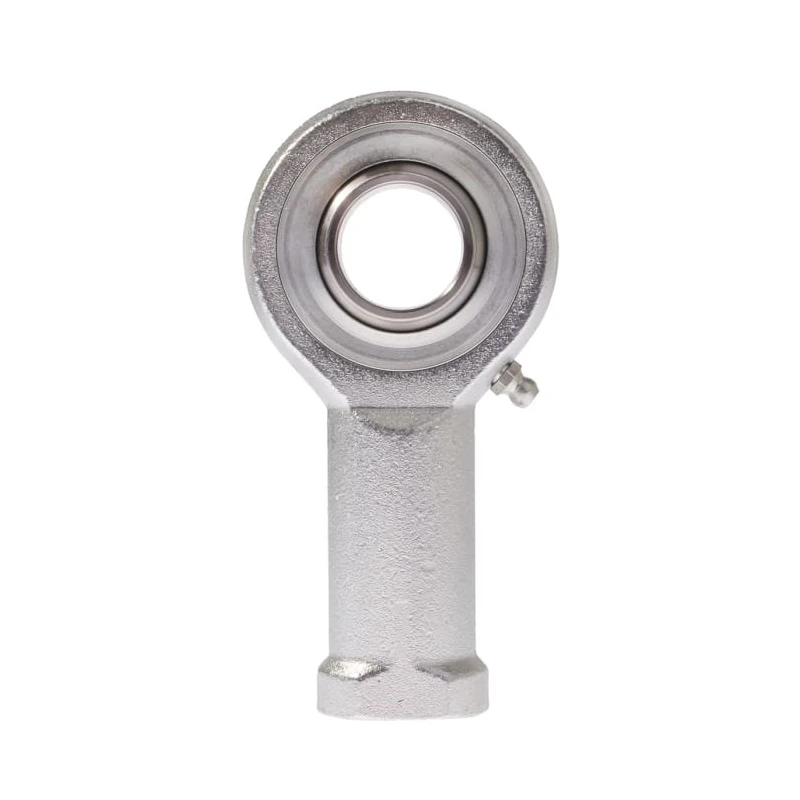

Durbal M8 x 1.25 Female Forged Steel Rod End, 8mm Bore, Left Hand Thread, Dynamic Load 4kN BRF 08-00-502

Durbal BRF 08-00-502 is a premium steel rod end designed for industrial and mechanical assemblies requiring durable, low-maintenance rotary bearings. This rod end features a forged steel housing that is tempered, case hardened, and surface galvanized to withstand harsh operating environments while maintaining structural integrity. The inner bearing ring is crafted from hardened ball bearing steel and superfine ground to ensure precision and smooth motion.

Designed with a female thread connection sized at M8 x 1.25 with left hand threading, it accommodates an 8mm bore diameter suitable for a wide range of machinery. With a dynamic load rating of 4kN and static load rating of 1kN, it supports medium-duty applications efficiently.

The bearing offers a radial clearance between 15 and 40 micrometers, providing effective self-alignment and reduced wear. It operates reliably within a temperature range from -20°C to +120°C, making it suitable for diverse industrial, mechanical, and fluid power applications including construction equipment, automation, and agricultural machinery.

Lubrication is facilitated using Polyrex EP2 or compatible soap complexes to further extend service life and performance. The product is manufactured in Germany to high-quality standards but does not include specific certifications or approvals.

Set includes one forged steel rod end with specified dimensions and load ratings for immediate integration into your assembly line or maintenance inventory. Constructed from forged steel for enhanced strength and longevity.

Features an 8mm bore diameter for precise fitting. Left hand metric thread with M8 x 1.25 female connection. Dynamic load rating of 4kN ensures reliable operation under stress. Operating temperature range from -20°C to +120°C.

Low maintenance design with optional lubrication using Polyrex EP2 or soap complex. Housing is tempered, case hardened, and surface galvanized for corrosion resistance. Inner ring made from hardened, superfine ground ball bearing steel.

Bearing clearance between 15 and 40 μm radial for smooth movement. Overall width of 48mm and outside diameter of 24mm. Explore EnvMart’s extensive Rod Ends category for additional precision components tailored to industrial, mechanical, agricultural, and manufacturing needs.
