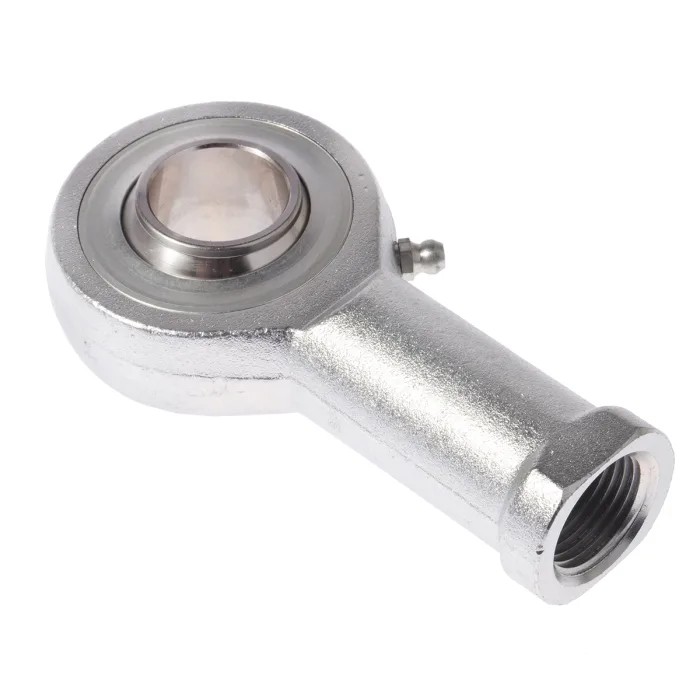

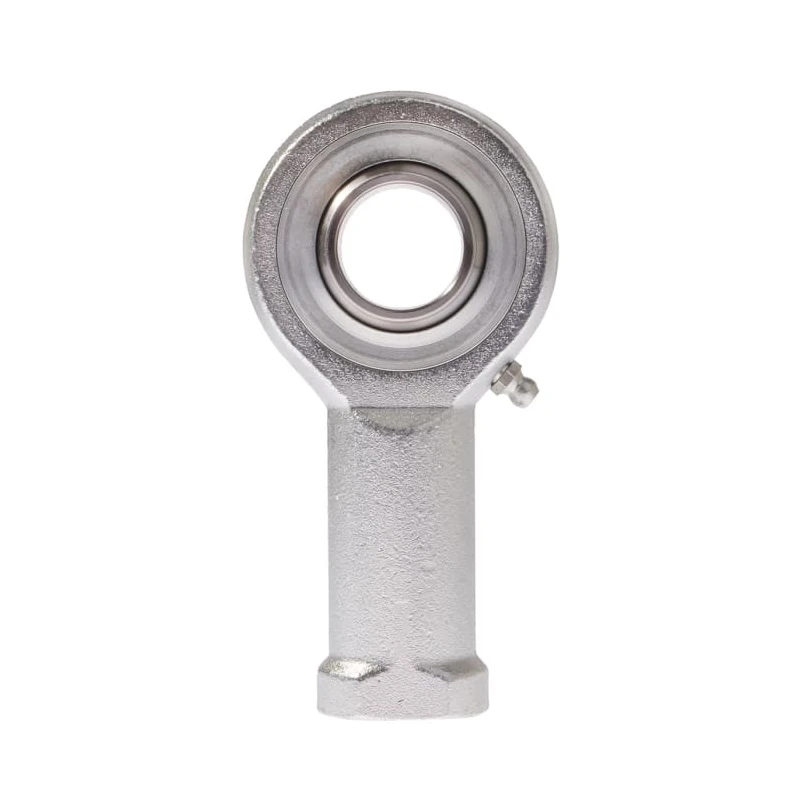

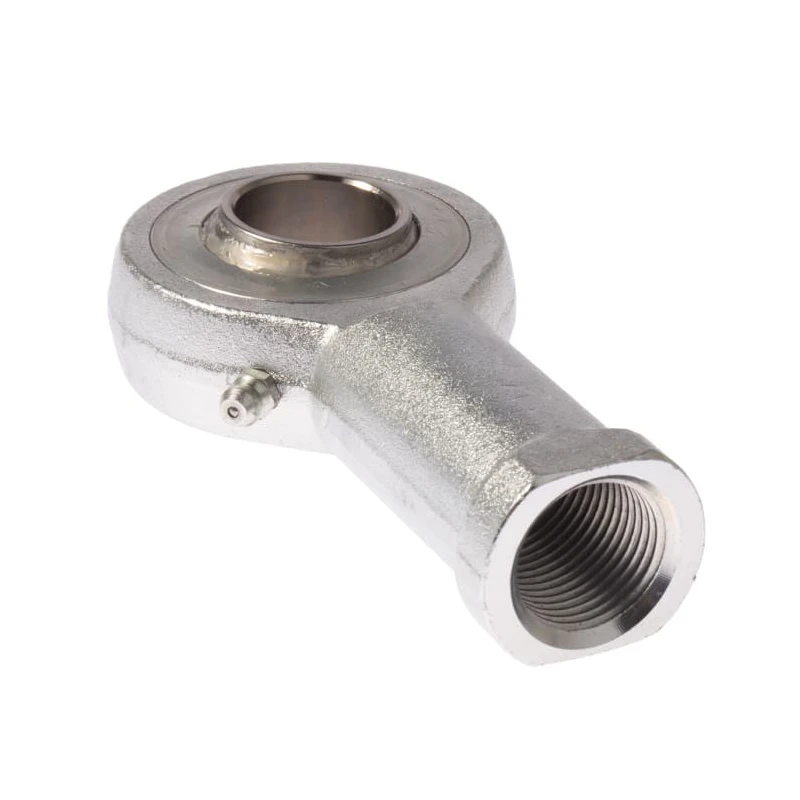

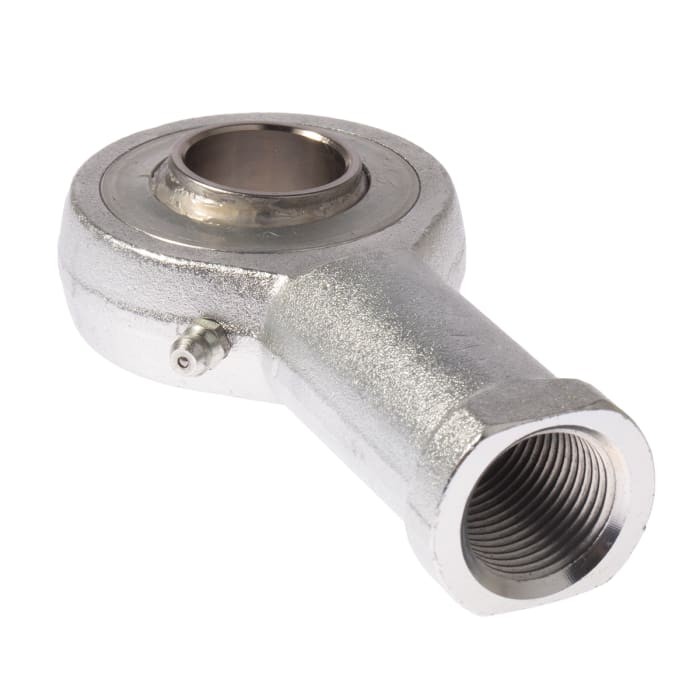

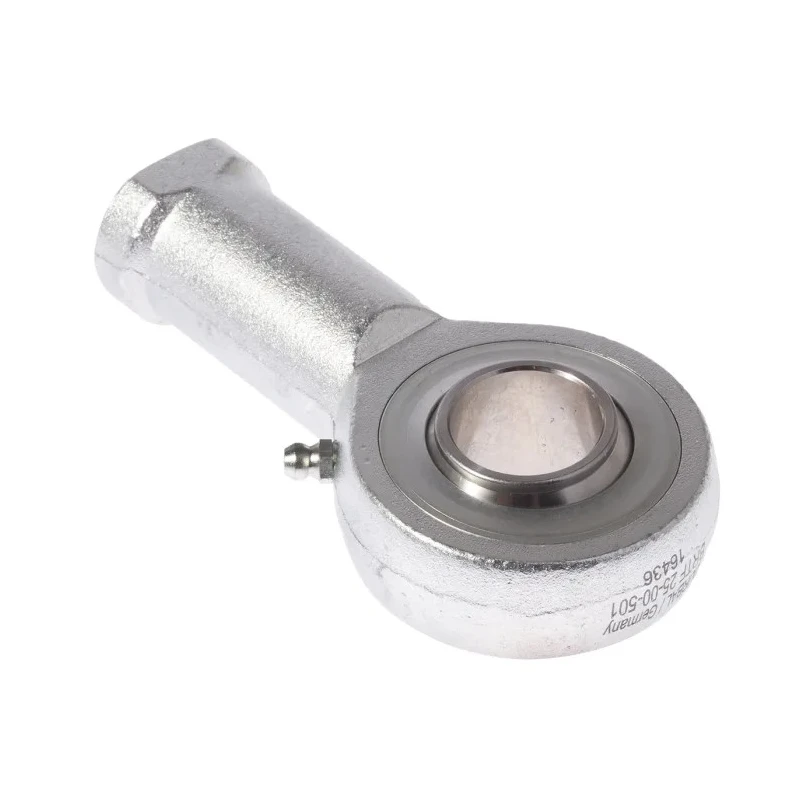

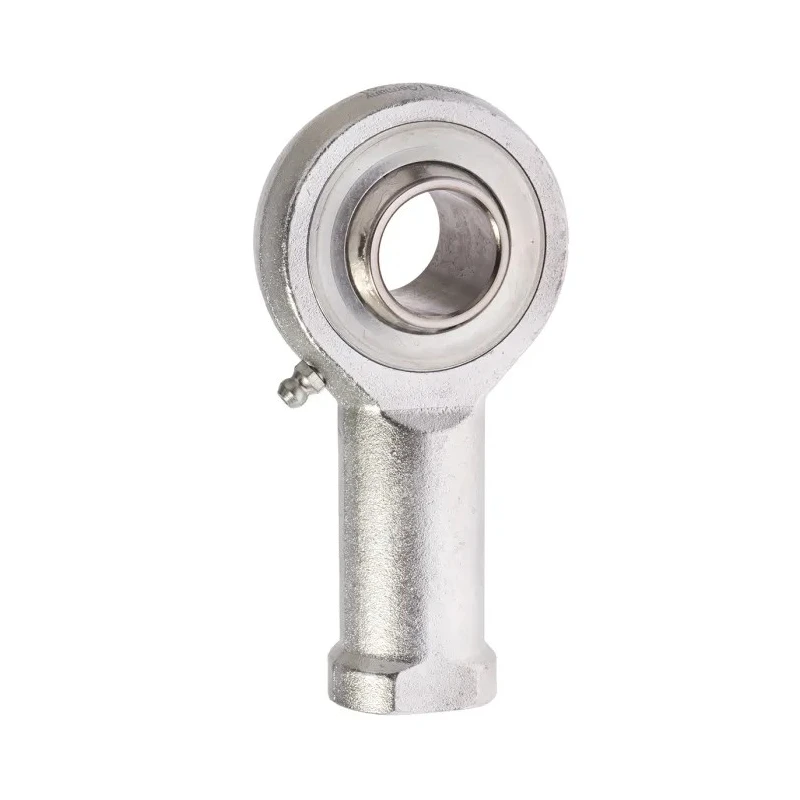

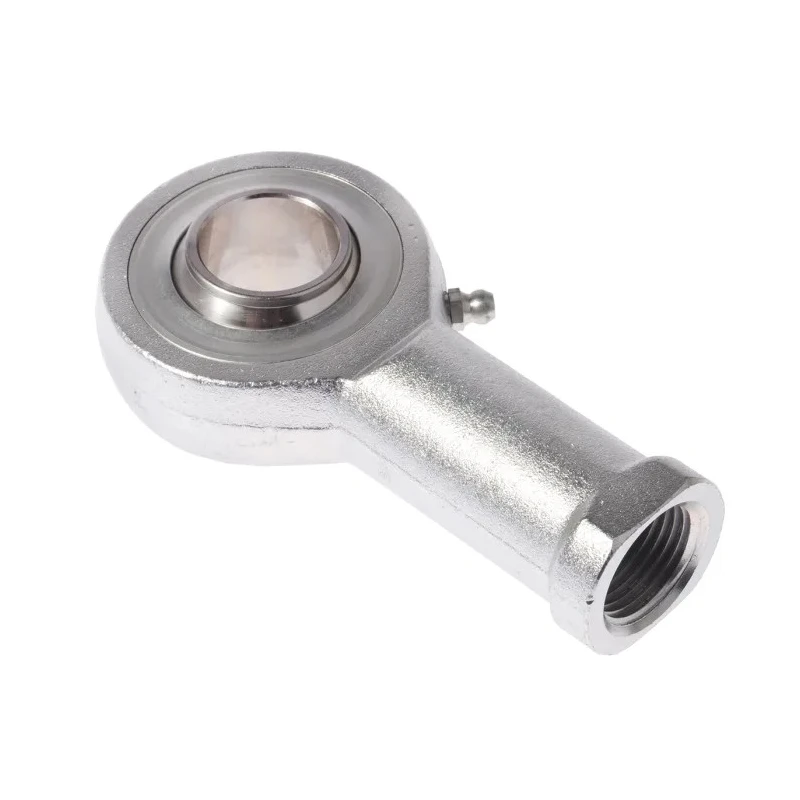

Durbal Forged Steel Rod End M6 x 1 Female Thread 6mm Bore, 2.8kN Dynamic Load BRF 06-00-501

Durbal BRF 06-00-501 forged steel rod end is a high-quality mechanical component featuring an M6 x 1 female metric thread and 6mm bore diameter, engineered for applications demanding precision and durability. The rod end housing is forged steel, tempered, case hardened, and surface galvanized, providing excellent wear resistance and longevity in demanding industrial environments.

The inner ring is constructed from hardened ball bearing steel, ground to superfine tolerances to ensure smooth, reliable articulation. With a dynamic load rating of 2.8 kN and a static load rating of 0.7 kN, this rod end is suited for a wide range of mechanical linkages where strength and reliability are essential.

Designed to operate efficiently in temperatures from -20°C to 120°C, it incorporates a right-hand metric thread standard with a connection size M6 x 1 female thread and has an overall width of 40 mm and outside diameter of 20 mm. The bearing clearance ranges between 15 and 40 micrometers radial, allowing integral self-aligning movement to reduce stresses and extend service life.

Lubrication is possible using Polyrex EP2 grease or soap complex, providing low maintenance operation. This product is ideal for use in industrial machinery, fluid power systems, automotive linkages, and other demanding mechanical applications.

Manufactured in Germany as part of Durbal's premium line of rod ends, this component is designed for efficient, low maintenance performance with a greasable female thread and shielded adapter components.

Forged steel rod end housing, tempered, case hardened, and surface galvanized. Hardened ball bearing steel inner ring, superfine ground. Right-hand metric thread, M6 x 1 female connection size. Dynamic load rating 2.8 kN, static load rating 0.7 kN.

Operating temperature range from -20°C to +120°C. Bore diameter 6 mm, outside diameter 20 mm, overall width 40 mm. Bearing clearance 15 - 40 μm radial for self-aligning movement. Low maintenance grease compatible with Polyrex EP2 or soap complex.

For industrial mechanical, fluid power, automotive, and equipment manufacturing applications, the Durbal BRF 06-00-501 rod end offers robustness and precision. Browse EnvMart's extensive selection of rotary bearings and housing units to find this and similar high-performance Rod Ends.
