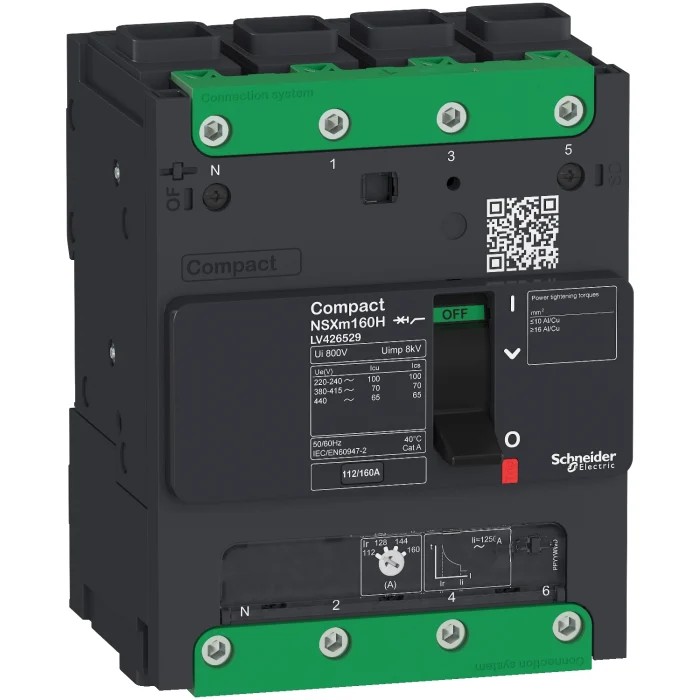

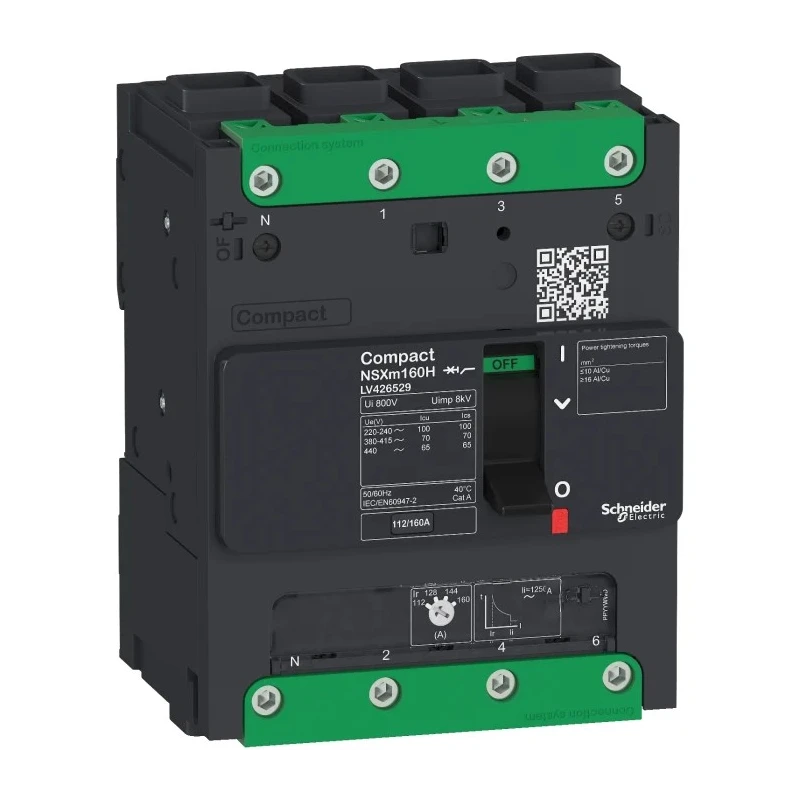

Schneider Electric ComPact Compact NSXm Molded Case Circuit Breaker 4-Pole 16A Breaking Capacity 70kA Clip-on LV426520
Specifications
| Country of Origin | India |
|---|---|
| Range | ComPact |
| Brand | Schneider Electric |
| Height | 137mm |
| Model | LV426520 |
| Depth | 80mm |
| Width | 137mm |
| Mount Type | Clip-on |
| Current Rating | 16A |
| Series | Compact NSXm |
| Terminal type | Screw |
| Breaking Capacity | 70kA |
| Number of Poles | 4 |
| Standards/Approvals | RoHS, IEC, EN, EAC, CE, CCC |
| Rated AC Voltage | 690V ac |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Four poles provide comprehensive multi-phase circuit protection.
- Rated current of 16 amperes ensures reliable load handling.
- Breaking capacity of 70 kiloamperes protects against high fault currents.
- Mount type is clip-on for easy installation.
- Terminals use screw connections for secure wiring.
- Toggle switch reset actuator provides simple manual operation.
- Thermal magnetic tripping mechanism offers precise overload and short circuit protection.
- Complies with RoHS, IEC, EN, EAC, CE, and CCC standards ensuring safety and quality.
Product Description
Schneider Electric LV426520 Molded Case Circuit Breaker (MCCB) 4-Pole 16A, part of the ComPact Compact NSXm series, is designed for efficient protection of industrial low voltage electrical circuits. It is rated for a breaking capacity of 70kA at 380/415V, making it suitable for a broad range of electrical distribution and control applications.
This compact and robust circuit breaker features a clip-on mount type for quick and secure attachment in electrical panels and switchgear, along with screw type terminals that ensure strong and reliable wire connections. The breaker uses a thermal magnetic tripping mechanism with Type D tripping characteristics, offering accurate response to overload and short circuit conditions.
The device meets multiple international standards, including RoHS, IEC, EN, EAC, CE, and CCC certifications, helping ensure compliance with safety and environmental requirements. Its toggle switch actuator enables convenient manual resets after tripping events.
Compact dimensions of 137 mm width, 137 mm height, and 80 mm depth make it suitable for space-constrained installations without compromising protection performance. The 4-pole configuration supports multi-phase system protection, making it versatile for commercial, industrial, and manufacturing electrical systems.
Four poles provide comprehensive multi-phase circuit protection. Rated current of 16 amperes for handling medium loads safely. High breaking capacity of 70kA protects circuits from severe fault currents. Clip-on mount type for fast installation in electrical panels.
Screw terminal type ensures secure and reliable wiring connections. Toggle switch actuator allows straightforward manual operation. Thermal magnetic tripping with Type D characteristics for accurate overload protection. Compliance with multiple international standards including RoHS and IEC.
Compact size optimizes panel space utilization. Suitable for industrial, commercial, and manufacturing electrical protection applications.
Explore the Schneider Electric range for reliable, safe, and efficient circuit protection solutions for electrical infrastructure. Discover more advanced circuit breakers and accessories on EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this molded case circuit breaker is 70 kiloamperes (kA).
This model has a current rating of 16 amperes (A).
It features a 4-pole configuration, providing comprehensive multi-phase circuit protection.
The circuit breaker utilizes a clip-on mount type for easy installation in electrical panels.
The dimensions of this unit are 137 mm in width, 137 mm in height, and 80 mm in depth.
It has screw type terminals that ensure secure and reliable wiring connections.
This circuit breaker employs a thermal magnetic tripping mechanism with Type D tripping characteristics.
The rated AC voltage for this model is 690V AC.
It complies with several international standards including RoHS, IEC, EN, EAC, CE, and CCC.
It features a toggle switch reset actuator for straightforward manual operation after tripping events.
This model is suitable for industrial, commercial, and manufacturing electrical protection applications.
It belongs to the ComPact series, specifically the Compact NSXm range.
