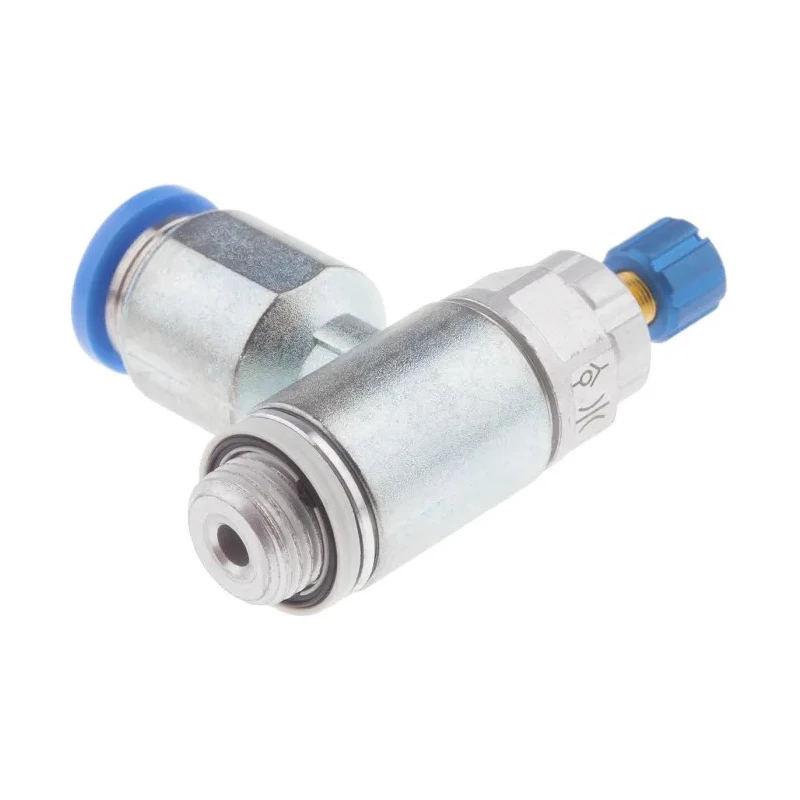

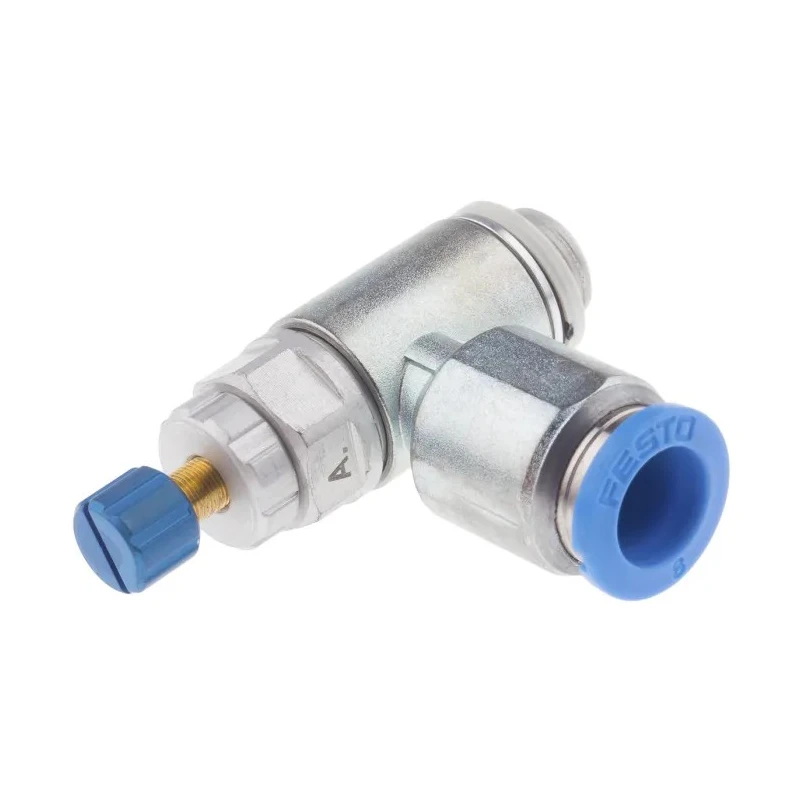

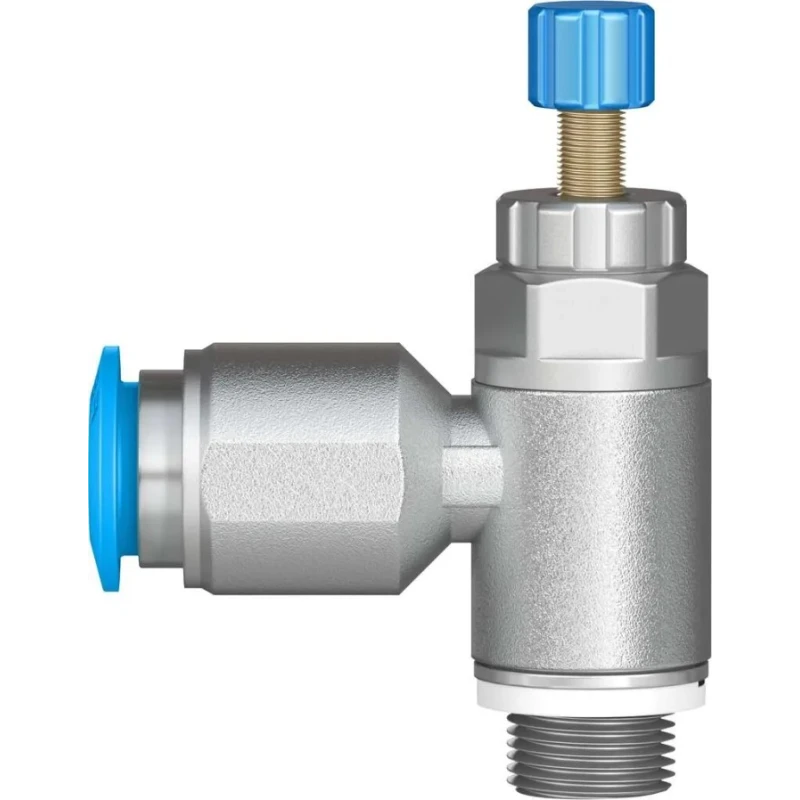

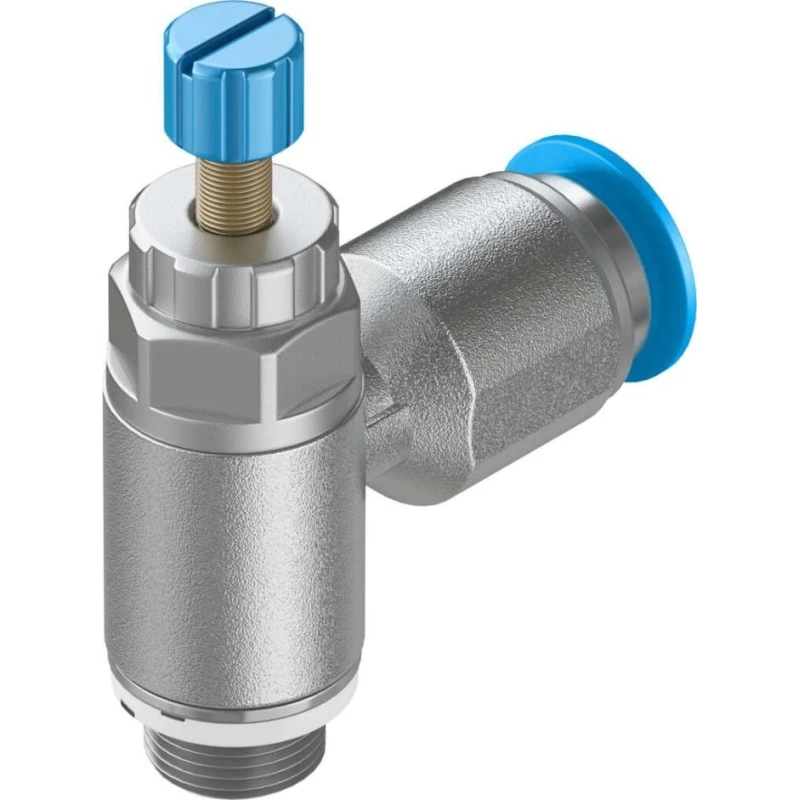

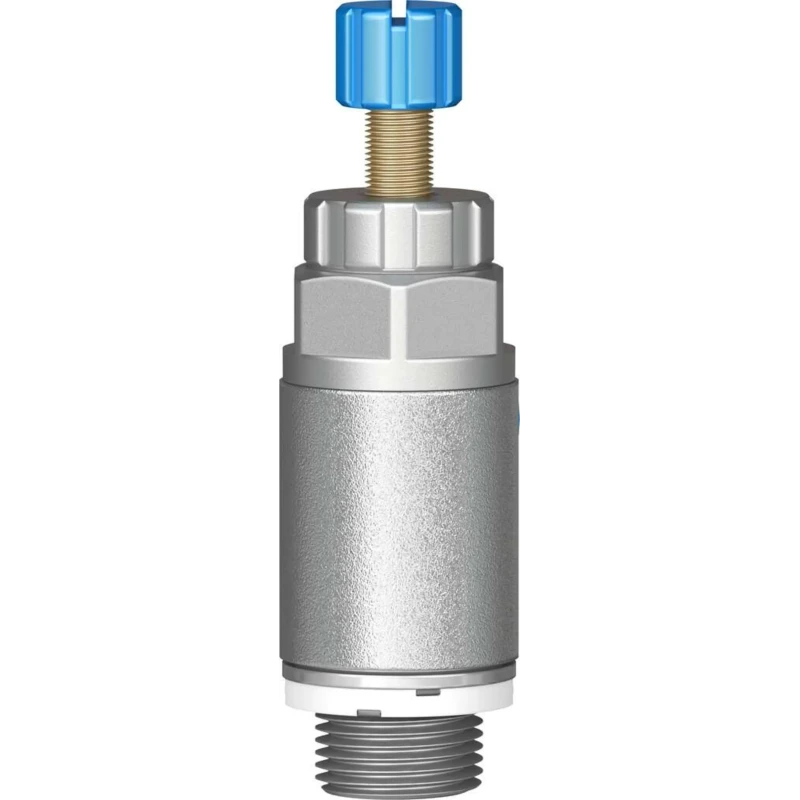

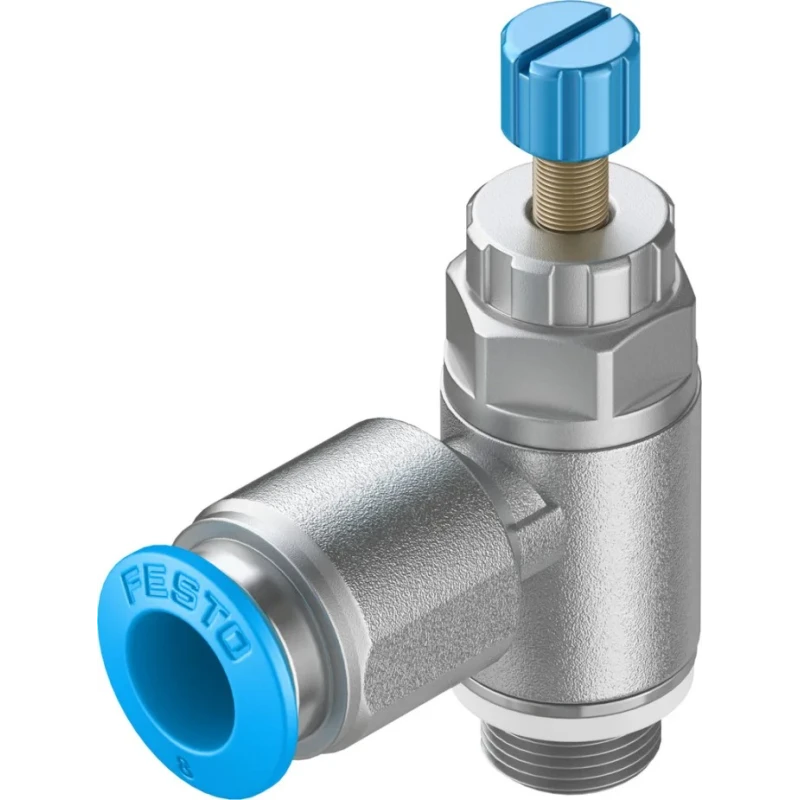

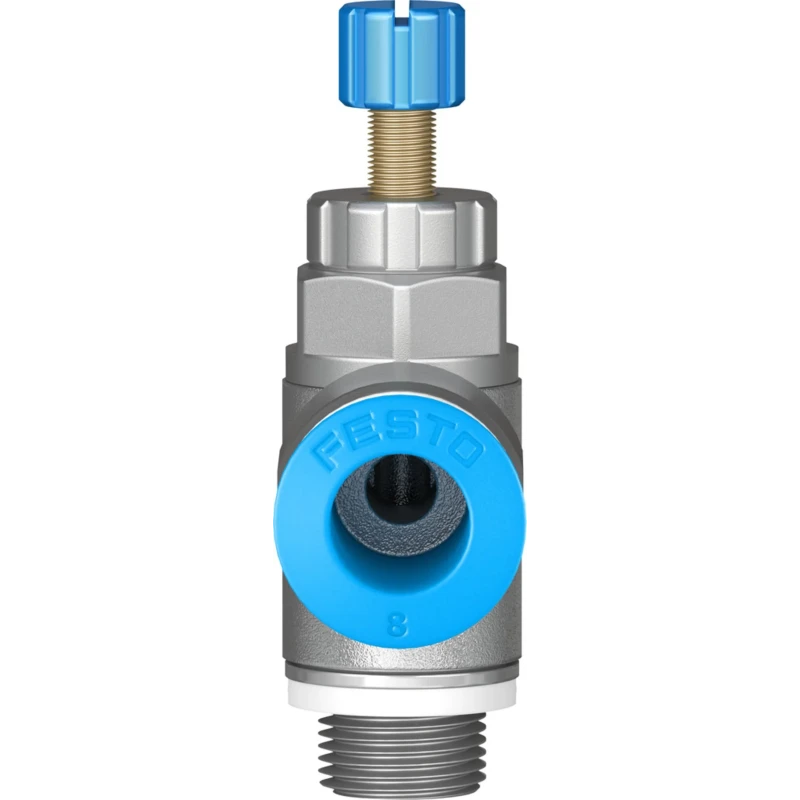

Festo GRLA Series Flow Controller Exhaust Valve Nickel Plated Brass Stainless Steel, 534337, Threaded GRLA-1/8-QS-8-RS-D
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Material | Nickel Plated Brass, Stainless Steel, Fluorelastomer (FPM), Die Cast Zinc (Chromed), Anodised wrought Aluminium Alloy, Brass, Polyamide Reinforced, Nitrile Rubber (NBR), POM |
| Maximum Operating Pressure | 1 bar |
| Outlet Connection Type | Threaded |
| Model | GRLA-1/8-QS-8-RS-D |
| Series | GRLA |
| Maximum Operating Temperature | 150°C |
| Sub Type | Flow Controller |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | Germanischer Lloyd, ISO 8573-1:2010, RoHS |
| Minimum Operating Pressure | 0.2bar |
| Standards/Approvals Germanischer Lloyd, ISO 8573-1 | 2010, RoHS |
Key Features
- Nickel plated brass and stainless steel construction offers excellent wear and corrosion resistance.
- Operates reliably from -10°C up to 150°C temperature range.
- Features a male G1/8 threaded outlet and 8 mm push-in inlet for easy installation.
- Maximum operating pressure is 1 bar, with a nominal flow rate of 215 L/min.
- Manual adjustment via oversized knurled screw allows precise flow control.
- Prevents rapid pneumatic driver piston movements and reduces compressed exhaust air loss.
- Nominal tightening torque of 3 Nm ensures stable secure fitting.
- Suitable for applications in agricultural equipment, automotive manufacturing, and textile industry.
Product Description
Festo GRLA-1/8-QS-8-RS-D Flow Controller Exhaust Valve provides precise flow control in pneumatic systems with robust materials including nickel plated brass, stainless steel, fluorelastomer, die cast zinc, anodised aluminium alloy, brass, polyamide reinforced components, nitrile rubber (NBR), and POM.
This compact valve features a threaded G1/8 male outlet connection and an 8 mm push-in inlet port, facilitating fast integration into pneumatic circuit setups. It offers a maximum operating pressure of 1 bar and maintains reliable operation within a temperature range of -10°C to 150°C.
The valve's one-way speed control limits exhaust flow to prevent fast piston movements, improving system efficiency by minimizing compressed air loss. Users can manually finely tune the flow rate using the large knurled adjustment screw for responsive performance.
With an overall nominal flow capacity of 215 L/min and a nominal tightening torque of 3 Nm, the valve ensures secure mechanical connection and consistent pneumatic flow regulation.
Applications span agricultural machinery, automotive production lines, and textile manufacturing where controlled pneumatic actuation speeds and system efficiency are critical. Nickel plated brass and stainless steel construction offers excellent wear and corrosion resistance.
Operates reliably from -10°C up to 150°C temperature range. Features a male G1/8 threaded outlet and 8 mm push-in inlet for easy installation. Maximum operating pressure is 1 bar, with a nominal flow rate of 215 L/min. Manual adjustment via oversized knurled screw allows precise flow control.
Prevents rapid pneumatic driver piston movements and reduces compressed exhaust air loss. Nominal tightening torque of 3 Nm ensures stable secure fitting. Suitable for applications in agricultural equipment, automotive manufacturing, and textile industry.
Explore the Festo range of Pneumatic Valves and flow control solutions on EnvMart to ensure efficient and reliable pneumatic system operation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure is 1 bar.
It operates reliably within a temperature range of -10°C to 150°C.
It features a male G1/8 threaded outlet connection.
The nominal flow rate is 215 L/min.
Flow rate can be manually adjusted using an oversized knurled screw for precise control.
It is made from nickel plated brass, stainless steel, fluorelastomer, die cast zinc, anodised aluminium alloy, polyamide reinforced components, nitrile rubber, and POM.
The nominal tightening torque is 3 Nm.
It complies with Germanischer Lloyd, ISO 8573-1:2010, and RoHS standards.
It is suitable for applications in agricultural equipment, automotive manufacturing, and the textile industry.
The minimum operating pressure is 0.2 bar.
It has an 8 mm push-in inlet for easy installation.
The country of origin for this product is Germany.
